Hydraulic Submersible Dredge Pump

Pansto Submersible dredge pumps have revolutionized the field of dredging, providing a versatile and efficient solution for various applications. These pumps play a crucial role in sediment removal, maintaining waterways, and supporting a wide range of industries.

PRODUCT DISPLAY

PRODUCT DETAILS

Product Description

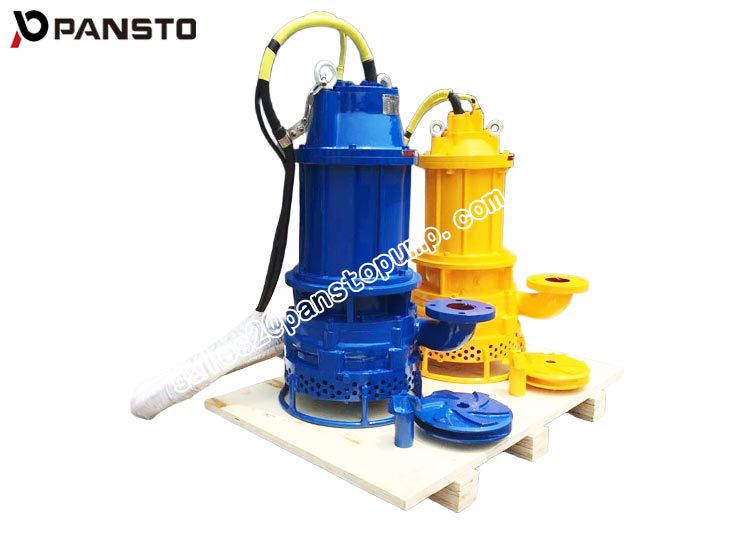

Pansto submersible dredge pump uses high-chromium alloy wear parts, which can minimize the wear of wear parts when handling large particles and high concentrations of abrasive slurries.

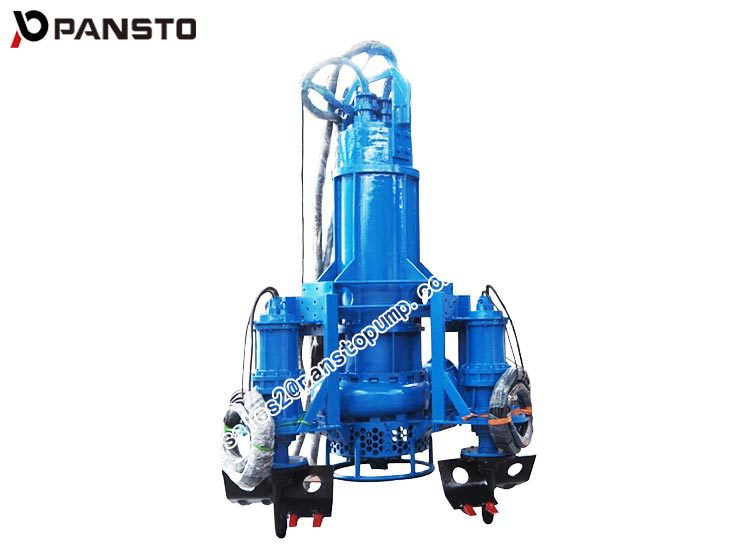

The submersible dredge pump equipped with an agitator can greatly reduce the accumulation of solid sediments at the bottom of ponds and rivers, easily remove the bottom mud, and pump slurries containing sand, gravel, and rocks.

The strong and sturdy mud suction capacity can even be used in tailings transportation and gravel mining. With excellent reliability and stability, it can continuously transport high-concentration solid slurries and effectively reduce the number of maintenance.

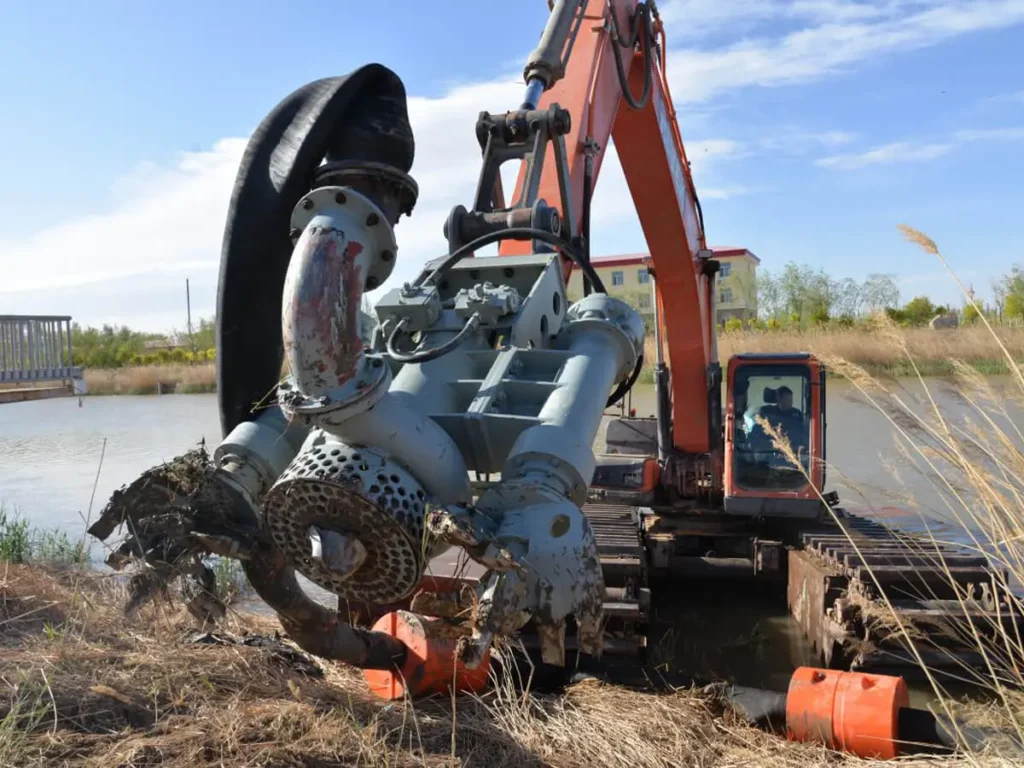

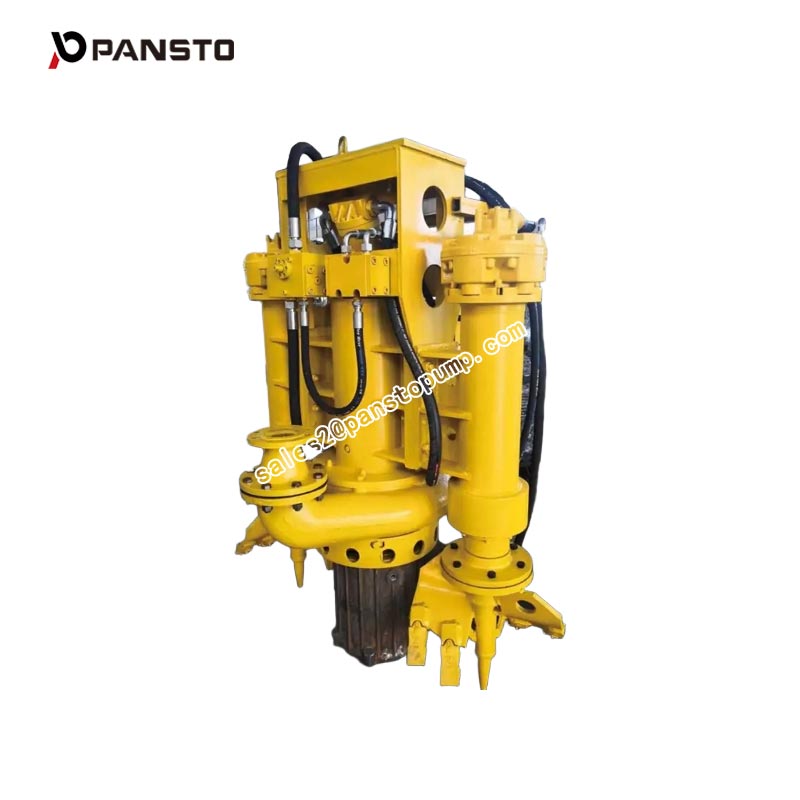

Pasnto can also provide hydraulic submersible dredge pumps that can be installed on excavators or backhoe dredgers. The flexible installation feature makes it more versatile.

Features & Advantages

Submersible Design:

Submersible dredge pumps are fully submerged in the water, offering advantages such as easy installation, reduced noise levels, and enhanced safety.

Robust Construction:

These pumps are engineered with durable materials to withstand the harsh conditions of dredging, ensuring longevity and reliability.

Efficient Dredging Performance:

The submersible design allows these pumps to operate close to the sediment, maximizing their efficiency in removing sludge, sand, and other debris.

Variable Power Options:

Submersible dredge pumps come in a range of power options, allowing users to choose the ideal pump for their specific dredging requirements.

Performance Parameters

No	Hydraulic Dredge Pump						Hydraulic motor
No	Model	Size (mm)	Capacity Q (m3/h)	Head H (m)	Power P (kw)	Granularity (mm)	Output	Pressure	Capacity
1	100TQSY100-10	100	100	10	7.5	25	32	25	48
2	80TQSY50-22	80	50	22	7.5	20
3	80TQSY50-26	80	50	26	11	20
4	100TQSY80-22	100	80	22	11	25
5	100TQSY130-15	100	130	15	11	25
6	100TQSY60-35	100	60	35	15	25	40	25	60
7	100TQSY100-28	100	100	28	15	25
8	150TQSY150-15	150	150	15	15	30
9	100TQSY100-35	100	100	35	22	25	50	25	75
10	100TQSY130-30	100	130	30	22	25
11	150TQSY150-22	150	150	22	22	30
12	150TQSY200-15	150	200	15	22	35
13	150TQSY240-10	150	240	10	22	35
14	100TQSY150-35	100	150	35	30	25	80	20	120
15	150TQSY180-30	150	180	30	30	30
16	150TQSY240-20	150	240	20	30	35
17	200TQSY300-15	200	300	15	30	35
18	150TQSY280-20	200	280	20	37	35
19	200TQSY350-15	200	350	15	37	35
20	150TQSY200-30	150	200	30	45	30	112	27.5	168
21	200TQSY350-20	200	350	20	45	40
22	200TQSY400-15	200	400	15	45	40
23	150TQSY240-35	150	240	35	55	30
24	200TQSY300-24	200	300	24	55	40
25	250TQSY500-15	250	500	15	55	45
26	150TQSY240-45	150	240	45	75	35	125	28	188
27	200TQSY350-35	200	350	35	75	45
28	250TQSY500-20	200	500	20	75	46
29	200TQSY400-40	200	400	40	90	45	160	27	240
30	250TQSY550-25	200	550	25	90	45
31	300TQSY660-30	300	660	30	110	50
32	300TQSY800-22	300	800	22	110	50
33	250TQSY500-45	300	500	45	132	50	200	27.5	300
34	300TQSY700-35	300	700	35	132	50	200	27.5	300

Pansto WNQ Submersible Dredge Pumps Parameters

Model	Capacity (m3/h)	Head (m)	Speed (rpm)	Eff. η (%)	NPSHr (m)	Inlet Dia. (mm)	Outlet Dia. (mm)	Max. Particles (mm)
300WNQ	1800-2200	20-65	300-550	70-78	<4	350	300	240
450WNQ	3200-3800	20-67	250-550	70-78	<4.5	600	450	240
500WNQ	4500-5800	20-65	250-550	74-80	<4.5	650	500	240
600WNQ	5000-7000	20-65	250-550	74-80	<4.5	660	600	250
650WNQ	6000-9000	20-70	200-400	75-85	<5.5	700	650	260
700WNQ	7500-1200	20-75	200-400	78-85	<5.5	760	700	280
800WNQ	10000-15000	20-78	200-380	80-84	<6	900	800	300
900WNQ	12000-19000	20-75	810-350	80-85	<6	960	900	320
1000WNQ	16000-25000	20-78	180-350	80-85	< 6	1200	1000	350

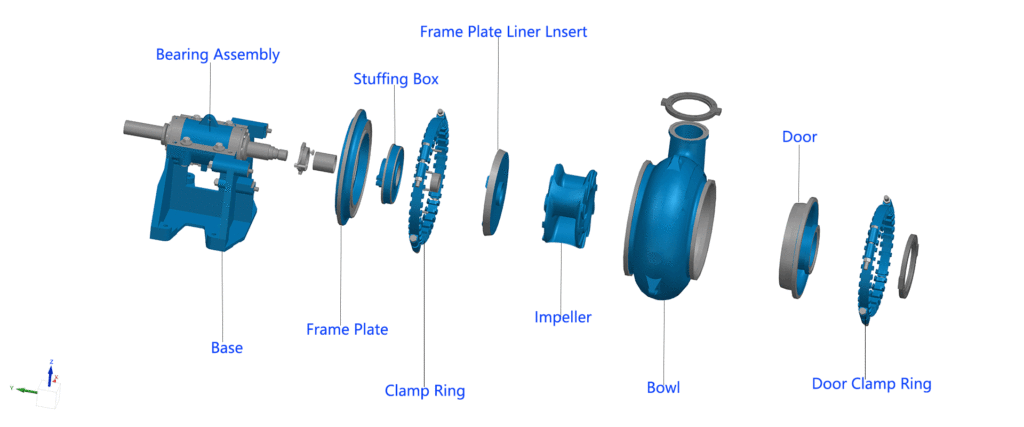

Structure

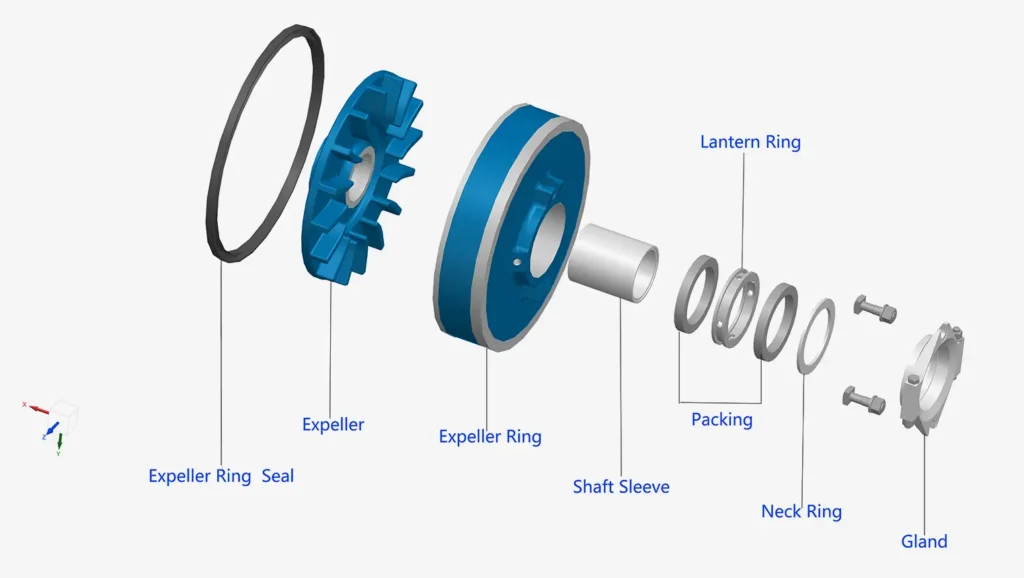

Sealing System

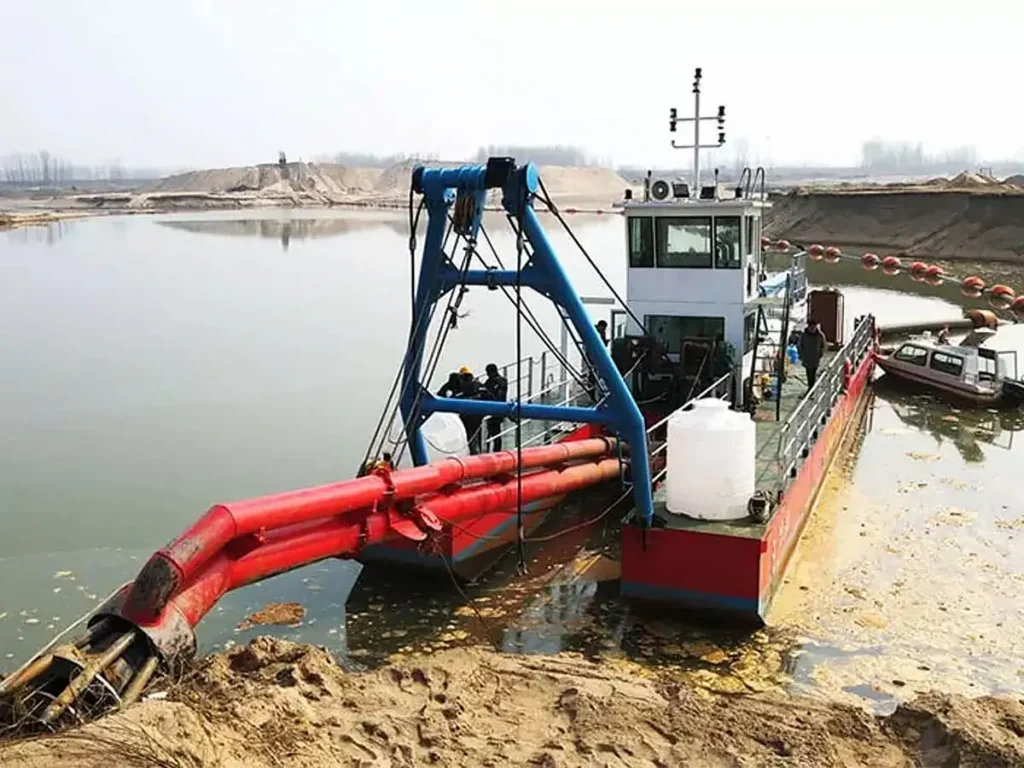

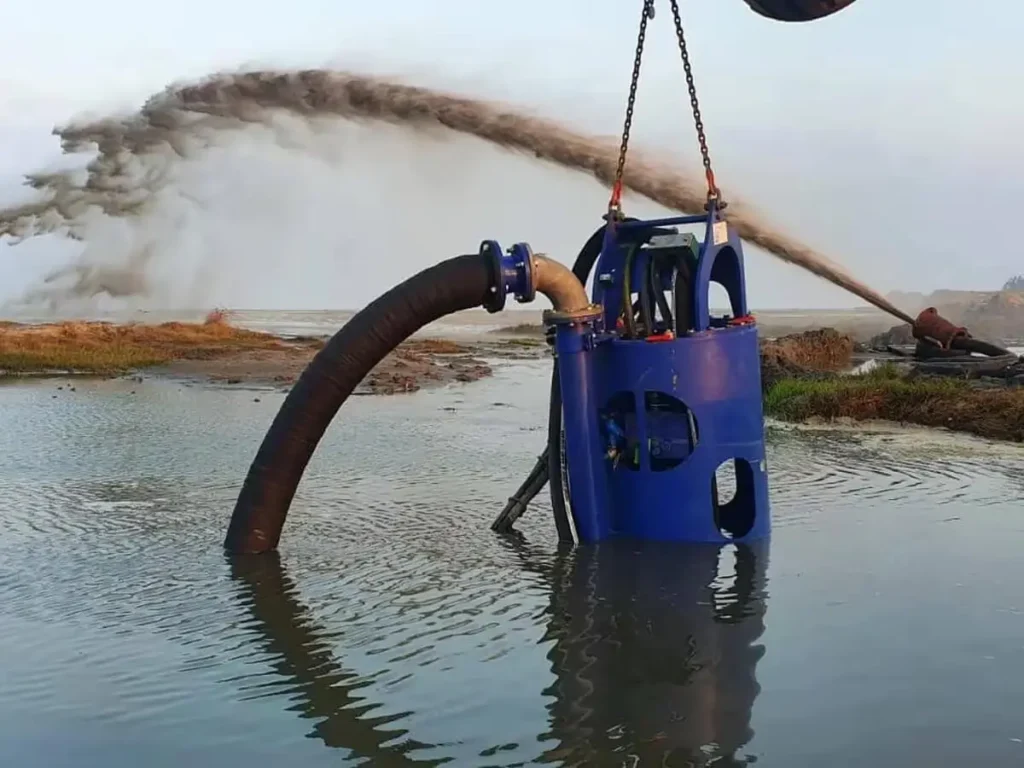

Applications

♦ Rivers, lakes, sea, reservoirs, pumping sand.

♦ Rivers, lakes, reservoirs, pumping port dredging silt.

♦ Pumping sand beneficiation: Select iron sand pumping, pumping sand gold, rare earths.

♦ Sewage treatment plant settling ponds cleanup.

♦ Municipal pipelines, storm water pumping station, hydroelectric sediment cleanup.

♦ Construction (sinking bridge construction, etc.) discharge of sediment, mud.

♦ Steel plant blast furnace slag, slag, pumping iron oxide delivery.

♦ Concentrator tailings, slag, slurry transportation.

♦ Coal cinder, coal, coal slurry cleanup.

♦ Power plant fly ash, coal, coal slurry transportation.

♦ To learn all kinds of diamond sand, quartz sand, slag solid particles.

Video Show - How does Submersible Dredge Pump Work

FAQ

What is the different price & material between Submersible Sewage Pumps and Submersible Slurry Pumps?

Submersible sewage pumps and submersible slurry pumps transport slightly different media. Submersible sewage pumps generally only transport sewage, are available in stainless steel, and are relatively affordable. Submersible slurry pumps can transport slurries containing particles. Stainless steel versions are more expensive.

How to reduce the speed of a submersible pump?

Adjusting the speed control will allow you to slow down the pump without additional parts or equipment. Another option is to install a variable frequency drive (VFD). This type of device utilizes electronic components, such as sensors and transistors, to adjust the speed of an AC electric motor.

How to stop sand from a submersible pump?

Use filters and screens: Make use of filters or screens to prevent the sand and other particulate matter from reaching the pump. Choose them as per the size of the particles you’re trying to block, and clean or replace them from time to time.
