WN Series Dredge Pumps

Dredger pump is a kind of high-efficiency centrifugal sediment pump used for underwater dredging operation, which is widely used in river dredging, harbor dredging, marine sand mining, and land reclamation projects.

PRODUCT DISPLAY

PRODUCT DETAILS

Production Decsription

Pansto WN sreies Sand Dredging Pumps are robust equipment designed for heavy-duty sand dredging applications, also known as sand extraction, sand mining, and sand excavation pumps. These units serve as reliable dredge pumps for sand on dredgers or can be seamlessly integrated with submersible sand slurry pumps to act as booster horizontal sand pumps across extensive distances. They boast outstanding wear resistance, anti-cavitation, and anti-clogging abilities, ideal for deepening waterways, preventing siltation, or excavating sand from the bottoms of rivers, lakes, estuaries, and other aquatic areas.

Features and Advantages

High Efficiency & Strong Suction

Advanced hydraulic design ensures high productivity in challenging dredging conditions.

Easy Maintenance & Minimal Downtime

Removable volute and simple design for fast cleaning and servicing.

Versatile Applications

Suitable for river and port dredging, sand reclamation, and marine engineering projects.

Handles Abrasive & Large Particles

Pumps slurry with gravel, compact soil lumps, and debris without clogging.

Extreme Wear Resistance

High-chromium alloy components provide long service life in abrasive environments.

Reliable Sealing System

Prevents leakage and ensures trouble-free operation in harsh conditions.

Specification & Performance Parameters

Type	Flow	Head	Rotationrate	Effi.	Inlet	Outlet	NPSH	MaxPassingParticleSize
Type	m3/h	m	r/min	%	mm	mm	IL	Five-Blade	Three-Blade
250WN	1100-1300	40-65	500-650	70-74	350	250	<4.5	86	144
300WN	1500-2200	30-65	400-550	74-78	450	300	<4	144	241
450WN	3000-4000	35-67	350-500	76-80	600	450	<4.5	125	254
500WN	4000-5500	40-65	350-450	78-80	650	500	<4.8	150	250
600WN	5000-9000	55-80	320-400	81-85	650	600	<6	160	220
700WN	8000-12000	60-85	280-380	83-85	750	700	<6	180	280
800WN	10000-15000	50-70	260-360	79-80	850	800	<6	200	300
900WN	12000-19000	50-75	280-330	73-85	950	900	<6	210	320
1000WN	16000-25000	23-76	180-290	85-87	1100	1000	<6	230	350

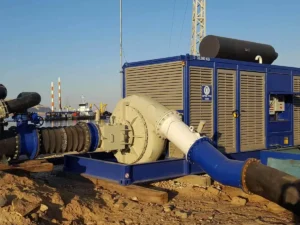

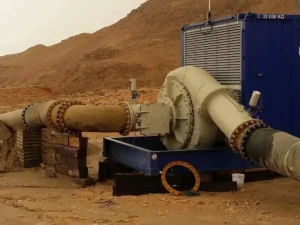

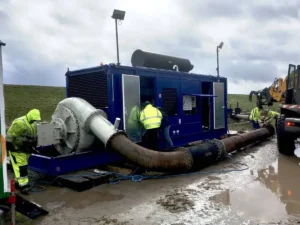

Applications

River Dredging

– Removal of silt, sediment, and debris to maintain waterway depth.

Mining Slurry Transfer

– Handling abrasive slurries from mineral processing plants.

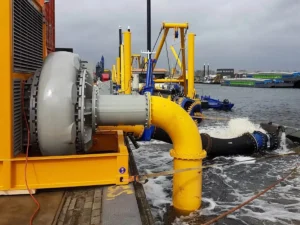

Port & Harbor Maintenance

– Clearing accumulated sand and sediment for vessel navigation.

Lake & Reservoir Cleaning

– Restoring water storage capacity and environmental quality.

Sand Reclamation

– Transporting sand for land reclamation and construction projects.

Marine Engineering Projects

– Supporting offshore construction, pile driving, and pier maintenance.

Structure Diagram

The diagram below shows the basic structure of the Pansto HH series high-head slurry pumps, there would be some differences up to varied pump sizes.

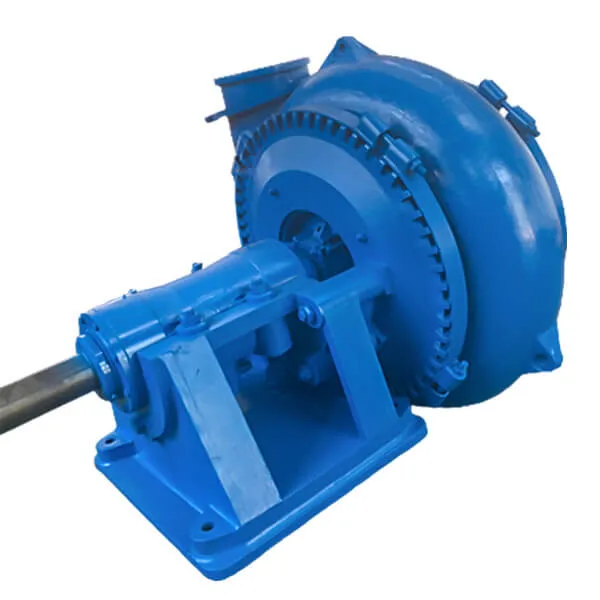

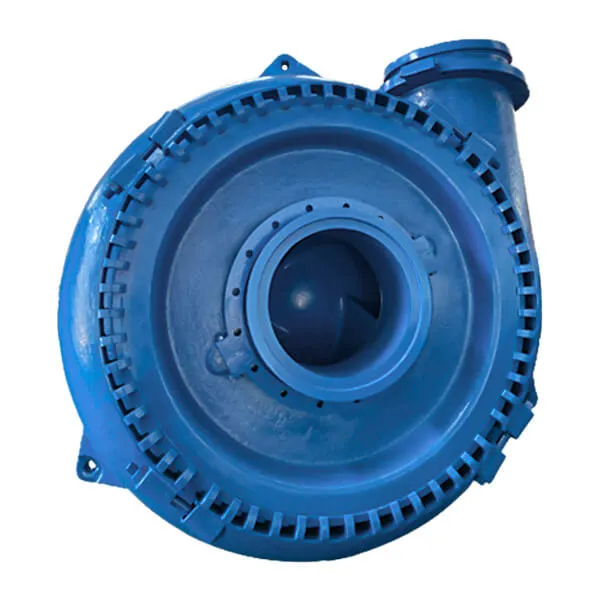

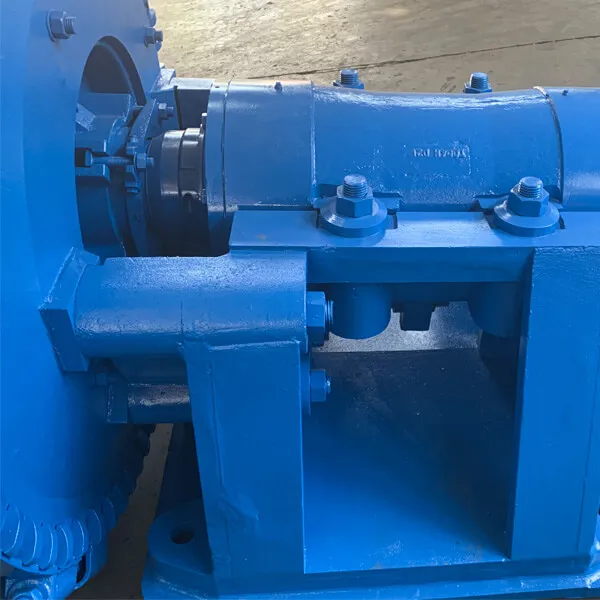

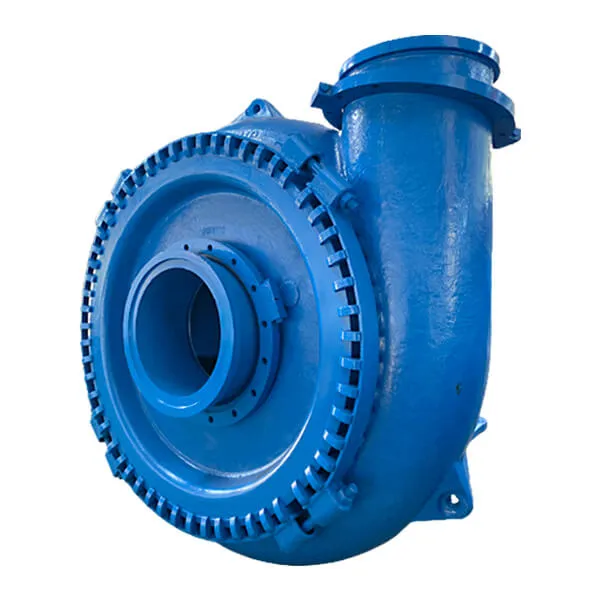

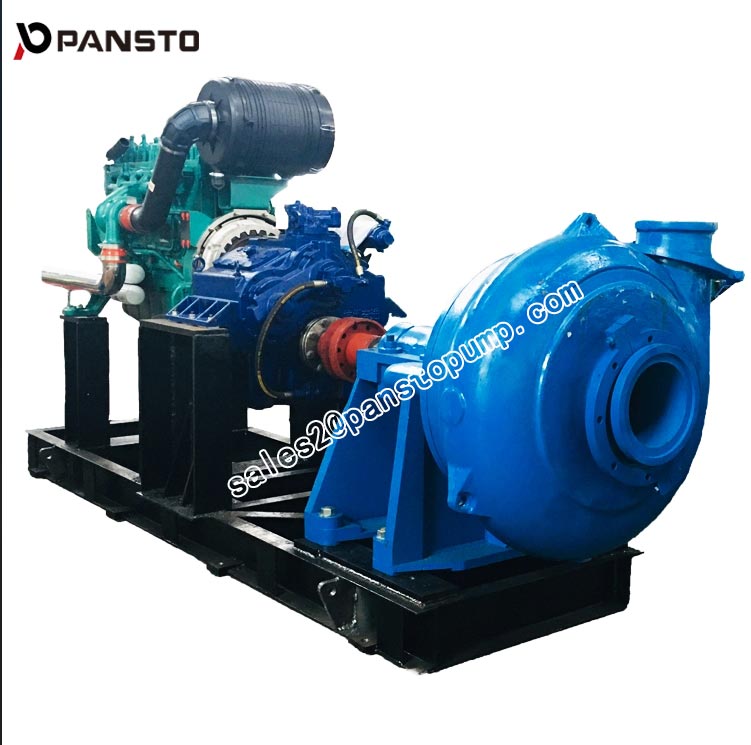

WN Series Gredge Sand Pump Show

Pansto Pump provides Dredge Pumps for river dredging, mining, and marine projects. Engineered for large flow capacity and long-lasting durability.

FAQ

What does a dredge pump do?

A dredge pump is a rugged centrifugal pump that efficiently moves sediment, sand, gravel, debris and various other solids from the ground to a designated discharge point through a pipe or hose. It excels at handling abrasive granular materials and solids of various sizes and weights and effectively suspends them.

What is the difference between a dredge pump and a slurry pump?

Dredge pumps are a special category of heavy duty slurry pumps that are utilized in the process of dredging.

What is the purpose of dredge?

Dredging is the removal of sediments and debris from the bottom of lakes, rivers, harbors, and other water bodies. It is a routine necessity in waterways around the world because sedimentation—the natural process of sand and silt washing downstream—gradually fills channels and harbors.
