Impellers For AH/HH Centrifugal Slurry Pump
Pansto offers a variety of slurry pump impellers, including rubber impellers on pump, AH series centrifugal pump impeller, Warman, and Mesto slurry pump impellers.
Production Description

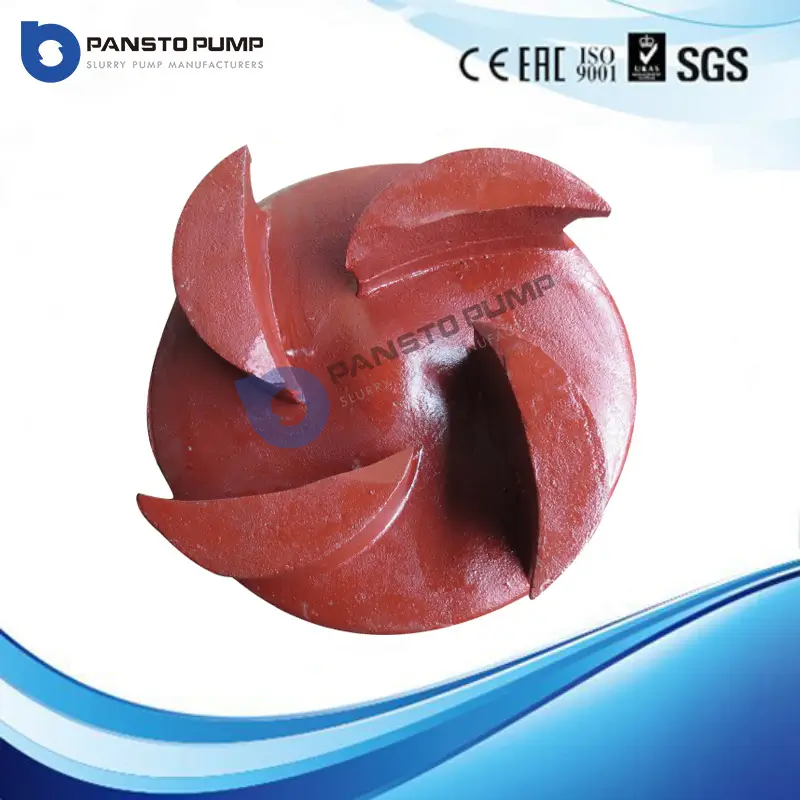

Impeller is one of the most important parts of slurry pumps. Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomer impellers are completely interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.
Features & Advangtages
1. Premium Material:
Crafted from high-grade chrome alloy, our impellers boast exceptional wear and corrosion resistance. This ensures a longer lifespan, reduced maintenance costs, and optimal performance even in challenging environments.
2. Advanced Design:
The impeller features a state-of-the-art design, optimizing fluid dynamics for increased efficiency. Its unique blade configuration enhances the pump’s ability to handle abrasive slurries while maintaining peak performance.
3. Robust Construction:
Built to withstand the toughest conditions, our impellers undergo rigorous testing to ensure structural integrity. This results in a reliable product that performs consistently under heavy loads, providing you with peace of mind in critical applications.
4. Easy Installation and Maintenance:
Designed with user convenience in mind, our High Chrome Alloy Slurry Pump Impeller facilitates easy installation and maintenance. Quick and efficient disassembly/reassembly minimizes downtime, maximizing your operational efficiency.
Sepcification:Interchangeable Slurry Pump Impeller Code
Impeller Code | Pansto PH Slurry Pump | AH Slurry Pump | Materials |
B1127 | PH1.5/1B | 1.5/1B-AH | High chrome, Natural rubber, PolyurePHane |
B15127 | PH2/1.5B | 2/1.5B-AH | High chrome, Natural rubber, PolyurePHane |
C2147 | PH3/2C | 3/2C-AH | High chrome, Natural rubber, PolyurePHane |
C2127 | PH3/2C | 3/2C-AH | High chrome, Natural rubber, PolyurePHane |
C2051 | PH3/2C | 3/2C-AH | High chrome, Natural rubber, PolyurePHane |
D3147 | PH4/3C, 4/3D | 4/3C-AH, 4/3D-AH | High chrome, Natural rubber, PolyurePHane |
D3145HE1 | PH4/3C, 4/3D | 4/3C-AH, 4/3D-AH | High chrome, Natural rubber, PolyurePHane |
D3021 | PH4/3C, 4/3D | 4/3C-AH, 4/3D-AH | High chrome, Natural rubber, PolyurePHane |
E4147 | PH6/4D, 6/4E | 6/4D-AH, 6/4E-AH | High chrome, Natural rubber, PolyurePHane |
E4056 | PH6/4D, 6/4E | 6/4D-AH, 6/4E-AH | High chrome, Natural rubber, PolyurePHane |
E4058 | PH6/4D, 6/4E | 6/4D-AH, 6/4E-AH | High chrome, Natural rubber, PolyurePHane |
F6147 | PH8/6E, PH8/6F, PH8/6R | 8/6E-AH, 8/6F-AH, 8/6R-AH | High chrome, Natural rubber, PolyurePHane |
F6056 | PH8/6E, PH8/6F, PH8/6R | 8/6E-AH, 8/6F-AH, 8/6R-AH | High chrome, Natural rubber, PolyurePHane |
F6021 | PH8/6E, PH8/6F, PH8/6R | 8/6E-AH, 8/6F-AH, 8/6R-AH | High chrome, Natural rubber, PolyurePHane |
F6058HE1 | PH8/6E, PH8/6F, PH8/6R | 8/6E-AH, 8/6F-AH, 8/6R-AH | High chrome, Natural rubber, PolyurePHane |
FAM8147 | PH10/8F | 10/8F-AH | High chrome, Natural rubber, PolyurePHane |
G8147 | PH10/8ST | 10/8ST-AH | High chrome, Natural rubber, PolyurePHane |
FAM10147 | PH12/10F | 12/10F-AH | High chrome, Natural rubber, PolyurePHane |
G10147 | PH12/10ST | 12/10ST-AH | High chrome, Natural rubber, PolyurePHane |
FAM12147 | PH14/12F | 14/12F-AH | High chrome, Natural rubber, PolyurePHane |
G12147 | PH14/12ST | 14/12ST-AH | High chrome, Natural rubber, PolyurePHane |
GAM14147 | PH16/14TU | 16/14TU-AH | High chrome, Natural rubber, PolyurePHane |
* Pansto® is a registered trademark and does not represent or is not in any way affiliated wiPH Warman® of Weir Minerals Group. All names,numbers, symbols and descriptions are used for reference purpose only and do not imply PH at any pumps or parts listed is PH product of Warman Pumps.
Structure & Diagram
Pansto high-quality high chrome alloy slurry pump impeller is designed to meet the rigorous demands of heavy-duty slurry applications, making it suitable for continuously transporting high-concentration, strongly abrasive slurries containing large solid particles. Below is the basic assembly diagram of AH/PH series heavy-duty slurry pumps featuring a high chrome alloy impeller.

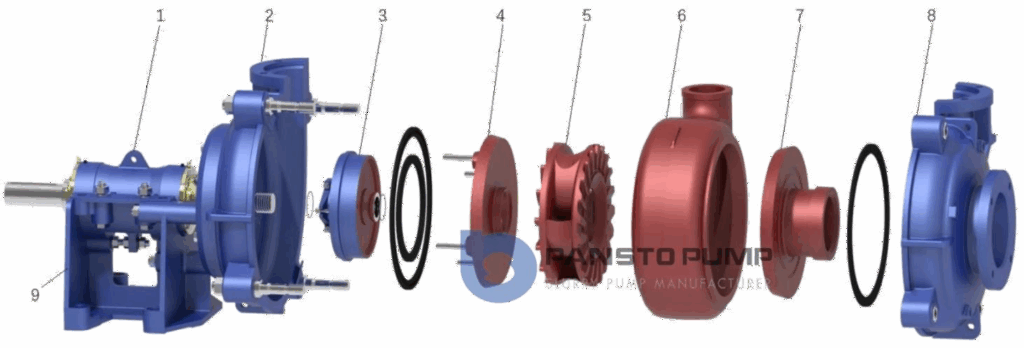

Exploded view for metal liner (PH pumps)
1.Bearing assembly
2.Frame Plate
3.Shaft seal assembly
4. Frame Plate liner Insert
5.Impeller
6.Volute Liner
7. Throat bush
8.Cover
9.Base
Materials of High Chrome Alloy Impeller
The following materials are commonly used high-chrome alloys for slurry pump impellers, with A05 high-chrome alloy being the most frequently used. Depending on the specific characteristics of the slurry and user requirements, options such as rubber, polyurethane, or ceramic are available. For exceptionally unique working conditions, we also provide customized services. Please feel free to consult our sales engineers for more information.
| Code | Description | Hardness | Applications |
| A05 | 27%Cr, Wear-resistant White Cast Iron. | ≥58HRC | For abrasive wear with larger impact loads, suitable for working conditions with pH value of 5~12. |
| A49 | 28%Cr, Wear-resistant and Corrosion-resistant Cast Iron. | ≥43HRC | Suitable for corrosive environments with low pH, 3.5≤PH≤13, especially suitable for flue gas desulfurization with PH≥4 device, usually used in low-acid environments. |
| A33 | 33%Cr, Wear-resistant and Corrosion-resistant Alloy. | ≥35HRC | Used to transport oxidizing slurry with PH≥1, such as phosphogypsum, nitric acid, sulfuric acid, and phosphoric acid. |

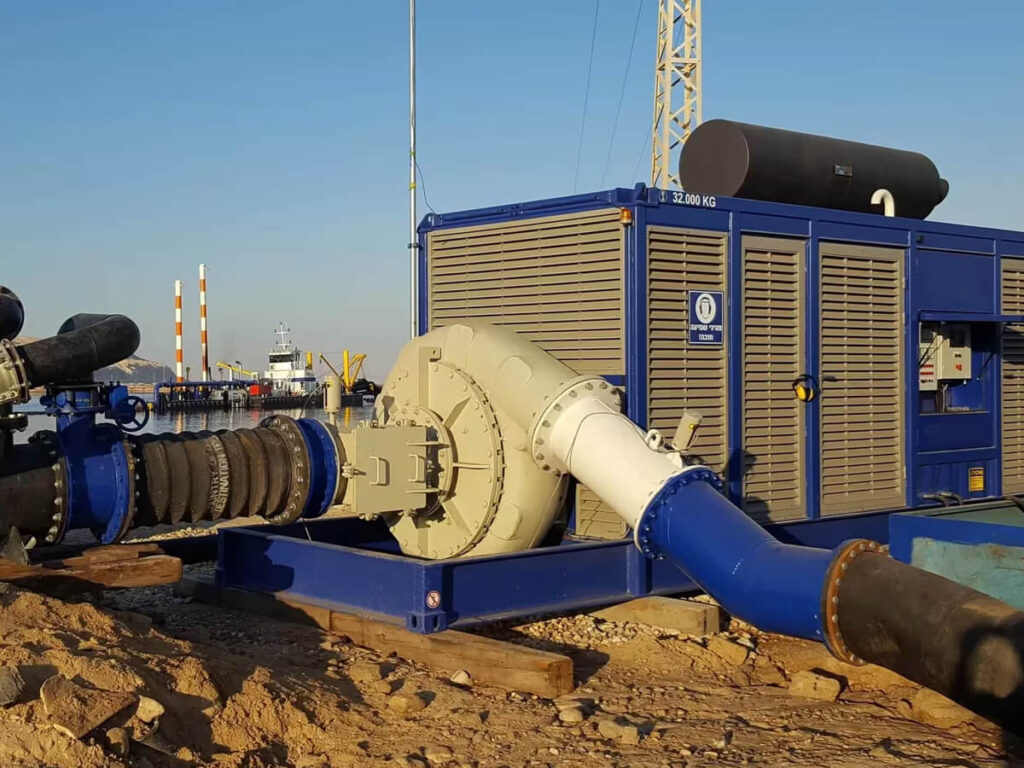

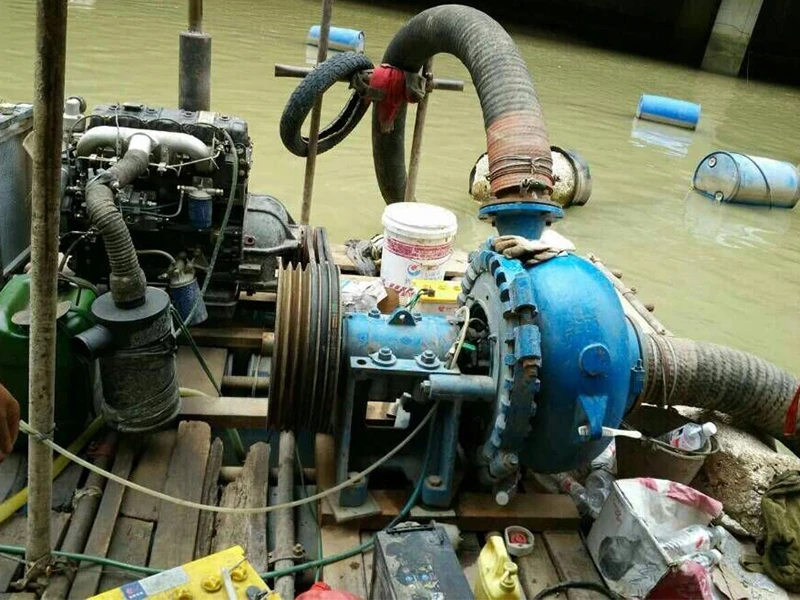

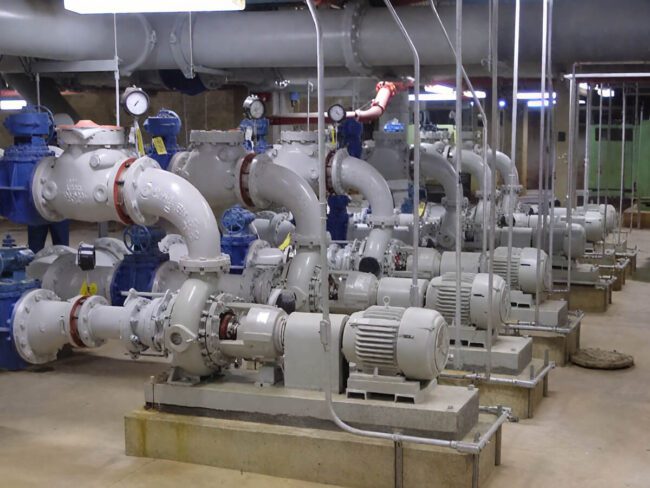

Applications
- Mining Operations
- Mineral Processing
- Power Generation
- Metallurgy
- Chemical Processing
- Sand and Gravel Extraction

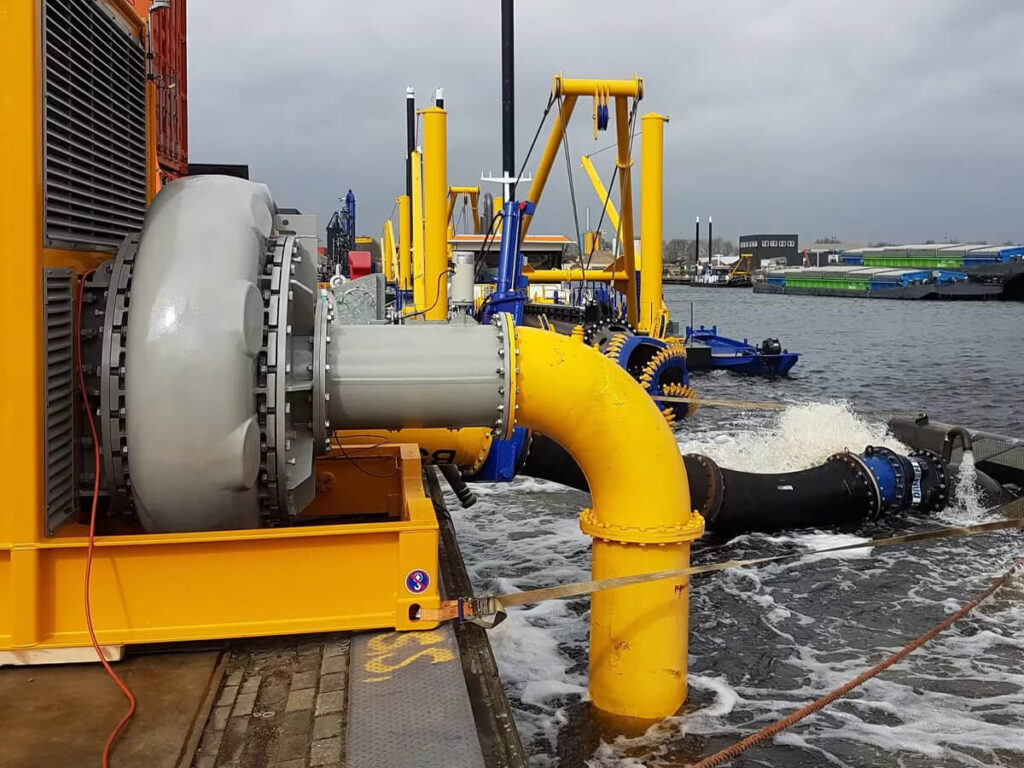

- Dredging
- Oil and Gas
- Environmental protection
- Construction

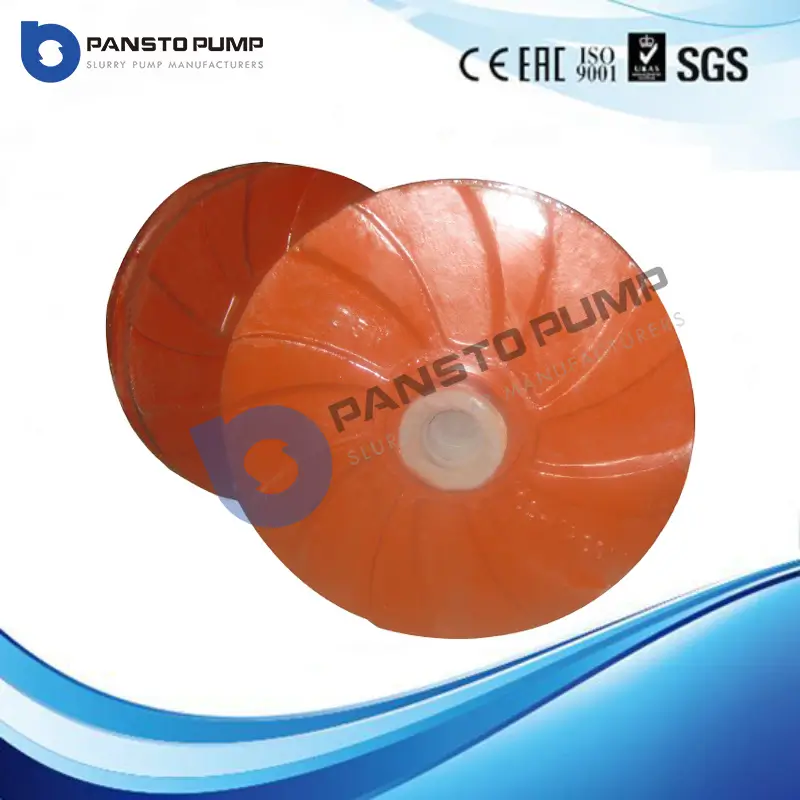

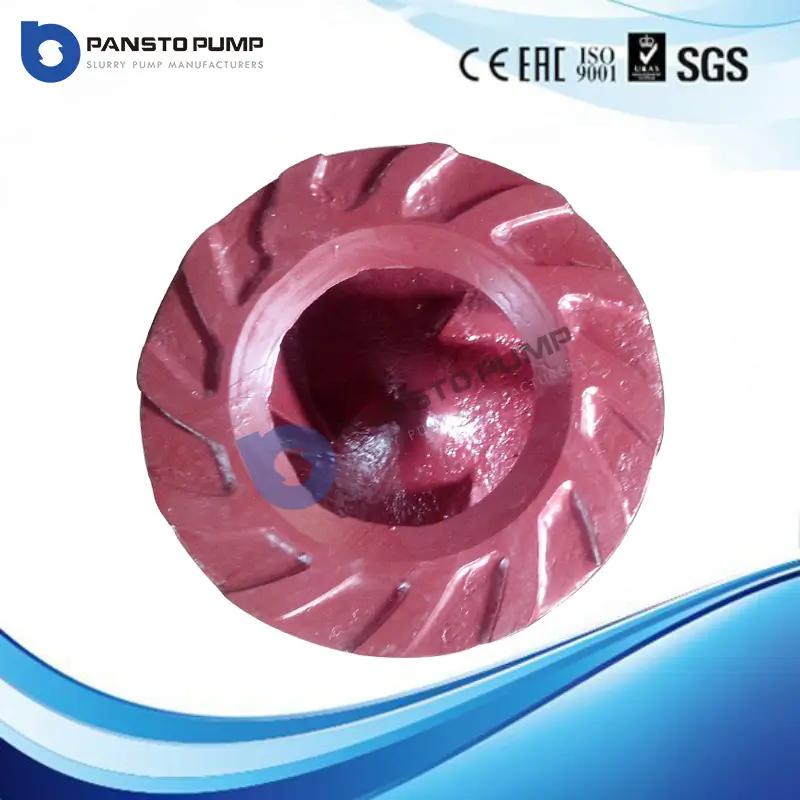

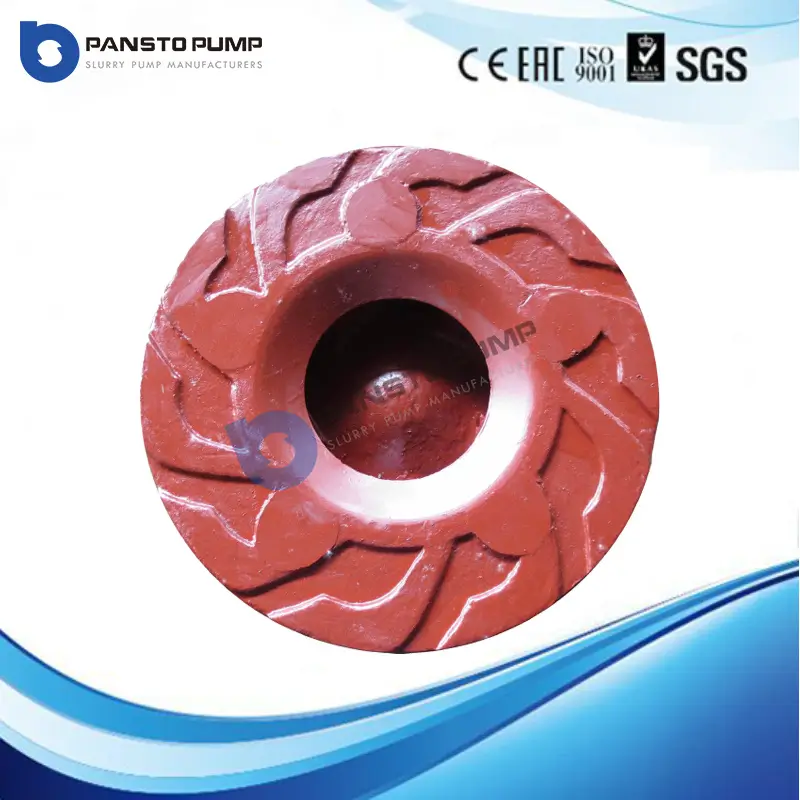

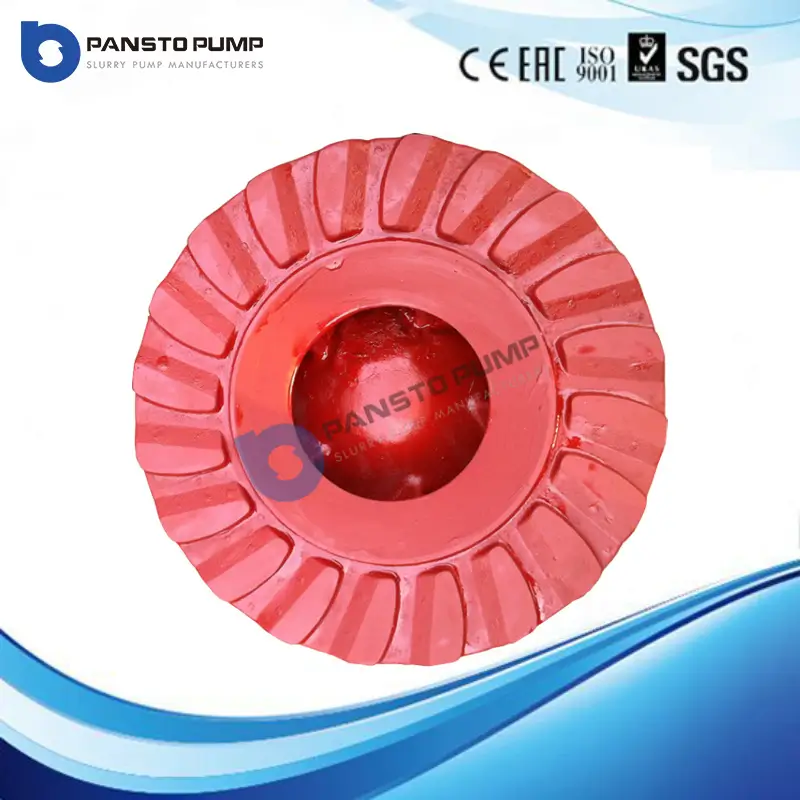

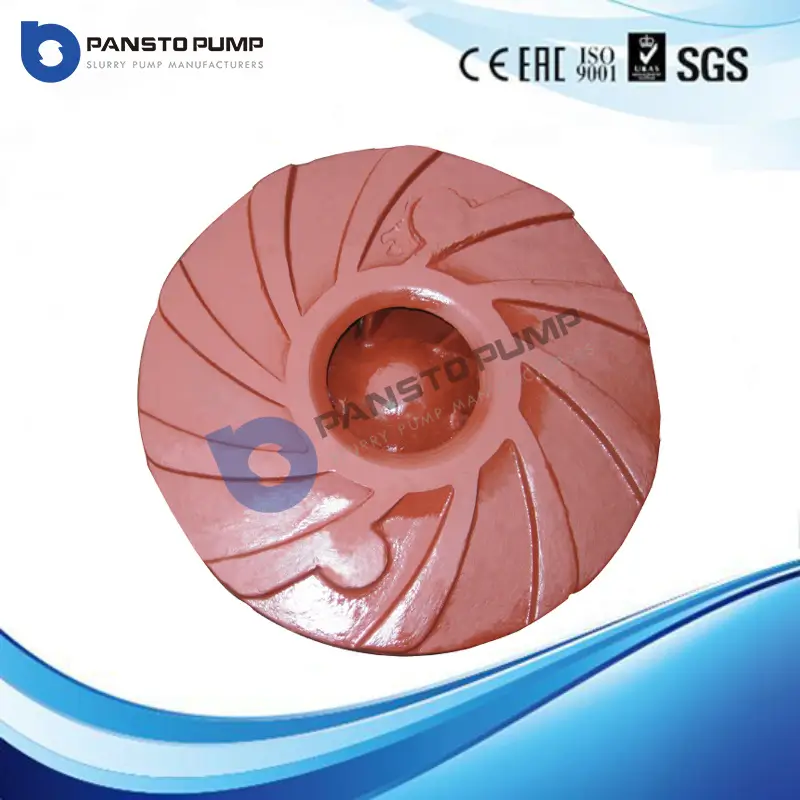

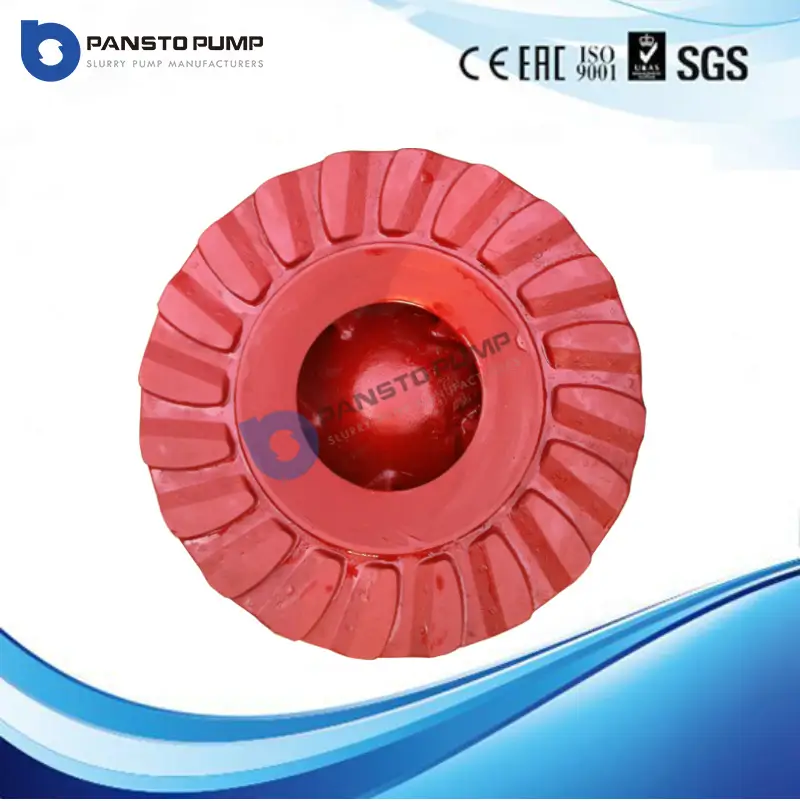

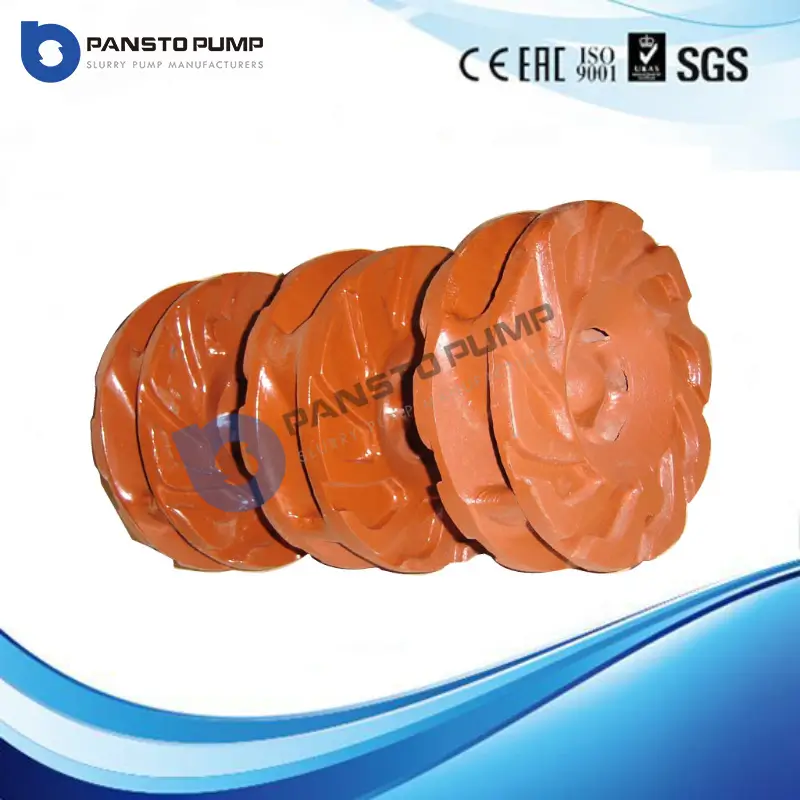

Impeller Display
Pansto is a professional slurry pump manufacturer and supplier from China.We provide reliable one-stop slurry pump solutions, including direct replacements for Warman slurry pumps and parts.
- Interchangeable slurry pump parts
- Material: high chrome alloy or rubber
- Competitive price, reliable quality
- Various sizes available
- Stock available
- Short delivery time
FAQs About Pump Impellers
What is an impeller and its function?
An impeller is a rotating iron or steel disc with vanes in a centrifugal pump. Impellers transfer energy from the motor that drives the pump to the fluid being pumped by accelerating the fluid radially outwards from the centre of rotation.
What are the three types of pump impellers?
There are three main types of pump impellers: closed, semi-open, and open. While each design brings unique benefits, selecting the right impeller depends on factors like the fluid being pumped, NPSHa (Net Positive Suction Head Available), and required head pressure.
How often replace pump impeller?
Hours or every 2 years that’s basically what most brands out there that’s their intervals. Some will say 3 years. But it’s usually 2 years 300 hours generally.
