Expellers for Slurry Pump | Warman Slurry Pump Expeller

Expeller is also a very important slurry pump part. It can not only help seal the pump, but also reduce the centrifugal force. The design and material of expeller is significant to its service life because it is also one of the wet parts.

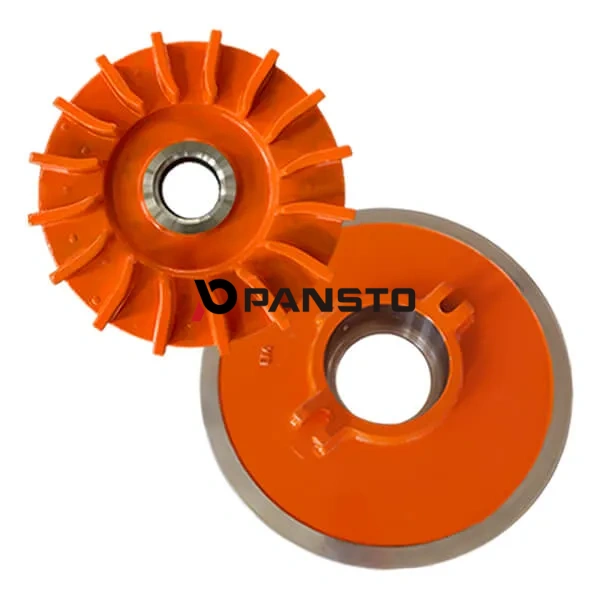

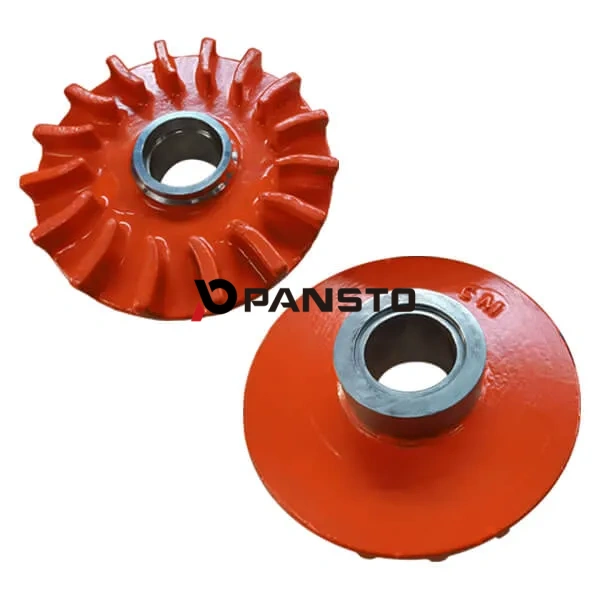

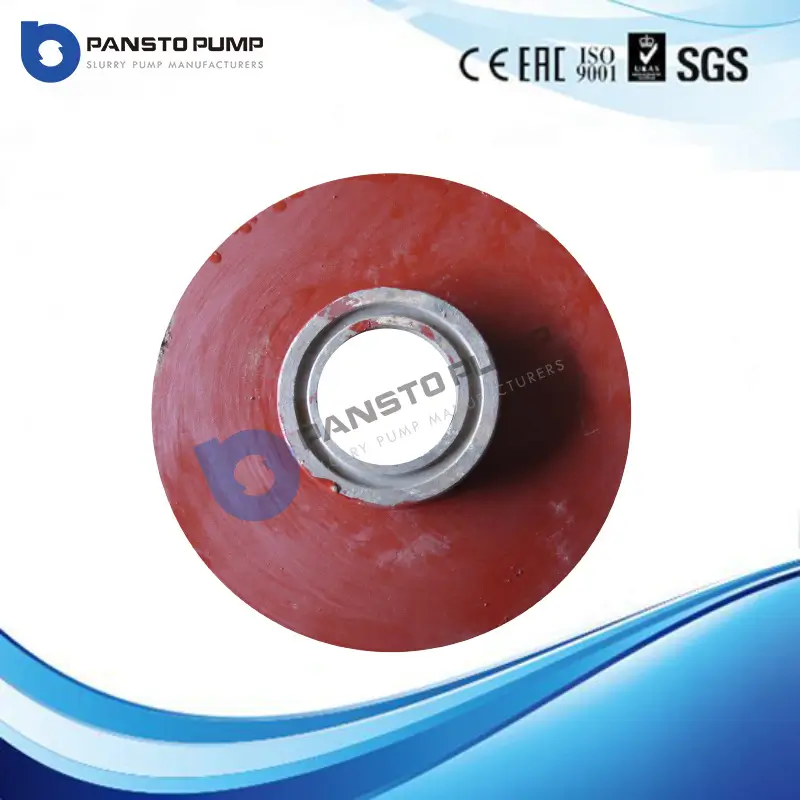

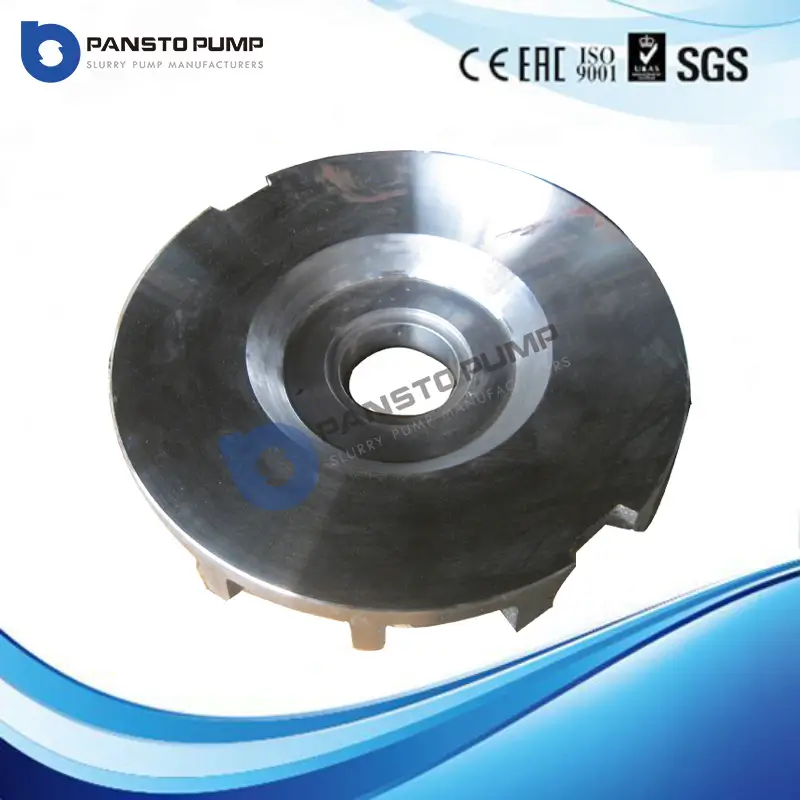

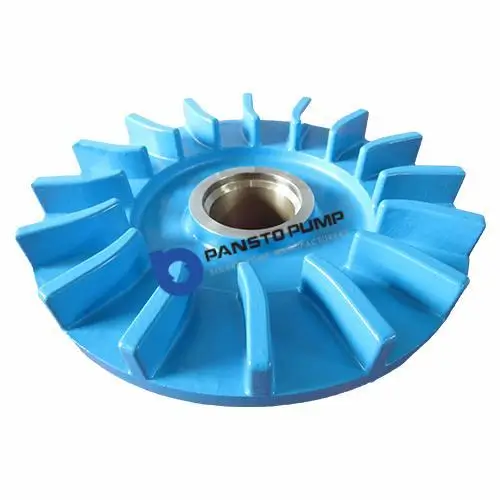

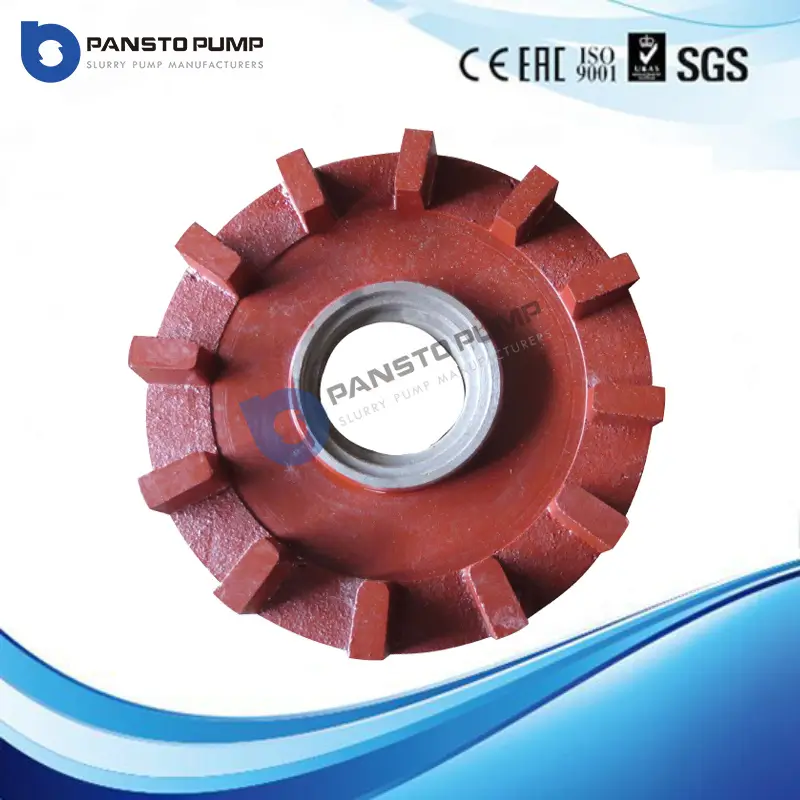

PRODUCT DISPLAY

PRODUCT DETAILS

Description

What is Slurry Pump Expeller

The expeller is a very important slurry pump part if the expeller seal is selected for the pump. It can not only help seal the pump, but also reduce the centrifugal force. The design and material of expeller is significant to its service life because it is also one of the wet parts. Pansto offers expeller in cast iron and high chrome materials for options.

Why choose Pansto slurry pump expeller?

Pansto possesses a wide range of wear-resistant high chromium alloys to ensure long service life under various severe working conditions. In the production process of castings, we strictly implement the requirements of the production process, and each process is inspected and recorded accordingly to ensure the stability of product quality.

Functions & Features

Pansto expeller is typically installed in the expeller seal section of the slurry pump. It is located in the shaft sealing area, usually near the pump casing wall and bearing section, and rotates together with the impeller to provide sealing protection.

Its main function is to generate centrifugal force through the pump’s internal rotational flow, pushing the slurry out of the pump and preventing it from leaking through the shaft seal. The main role of the expeller is as follows.

Sealing Protection:

Expeller works with the pump shaft’s sealing components to reduce leakage, maintaining pump integrity and reducing shaft wear for improved reliability.

Reduced Seal Wear:

Expeller minimizes internal pressure differences, reducing seal wear and leakage, which extends pump life.

Enhanced Durability:

Made from wear-resistant, corrosion-resistant alloys, the expeller ensures long-term performance in harsh environments with abrasive or corrosive slurries.

Improved Efficiency:

By controlling leakage, the expeller boosts pump efficiency and reduces energy loss.

Lower Maintenance Costs:

Compared to traditional seals, the expeller reduces wear and failure, cutting down on maintenance costs.

Specification & Expeller Code

Slurry Pump Expeller Code	Warman AH Slurry Pump	Slurry Pump Materials
B028	1.5/1B-AH, 2/1.5B-AH	HT250, High chrome
C028	3/2C-AH	HT250, High chrome
D028	4/3C-AH, 4/3D-AH	HT250, High chrome
DAM028	6/4D-AH	HT250, High chrome
E028	6/4E-AH	HT250, High chrome
EAM028	8/6E-AH, 8/6R-AH	HT250, High chrome
F028	8/6F-AH	HT250, High chrome
FAM028	10/8F-AH, 12/10F-AH, 14/12F-AH	HT250, High chrome
SH028	10/8ST-AH, 12/10ST-AH, 14/12ST-AH	HT250, High chrome
TH028	16/14TU-AH	HT250, High chrome
Slurry Pump Expeller Code	Warman HH Slurry Pump	Slurry Pump Materials
CH028	1.5/1C-HH	HT250, High chrome
DAM028	3/2D-HH	HT250, High chrome
E0AM028	4/3E-HH	HT250, High chrome
FH028	6/4F-HH	HT250, High chrome
Slurry Pump Expeller Code	Warman M Slurry Pump	Slurry Pump Materials
EAM028	10/8E-M	HT250, High chrome
FAM028	10/8F-M	HT250, High chrome
Slurry Pump Expeller Code	Warman L Slurry Pump	Slurry Pump Materials
ASC028	20A-L	HT250, High chrome
BSC028	50B-L	HT250, High chrome
CSC028	75C-L	HT250, High chrome
DSC028	100D-L	HT250, High chrome
ESC6028	150E-L	HT250, High chrome
SL30028	300S-L	HT250, High chrome
Gravel Pump Expeller Code	Warman G(H) Gravel Pump	Gravel Pump Materials
DAM028	6/4D-G	HT250, High chrome
E028	8/6E-G	HT250, High chrome
F028	10/8F-G	HT250, High chrome
GG028	12/10G-G, 14/12G-G, 12/10G-GH	HT250, High chrome
HG028	14/12TU-G,16/14TU-G,16/14TU-GH	HT250, High chrome

* Pansto® is a registered trademark and does not represent or is not in any way affiliated with Warman® of Weir Minerals Group. All names,numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of Warman Pumps.

Application

Slurry pumps transport mud, sand, lime slurry, ash and other substances in the fields of mining, metallurgy, coal, electric power, chemical industry and environmental protection, and play an important role in various technological processes in many industries. Efficiently and reliably convey and process high-concentration, high-density, high-abrasive slurry.

Process

Materials for Slurry Pump Expeller Seal Parts

Our meticulously quality-controlled slurry pump expeller seal parts are crafted using high-quality raw materials and advanced, mature production processes to ensure reliable and durable sealing. The detailed list of parts materials is shown below:

Expeller	Expeller Ring	Gland	Packing	Shaft Sleeve	Lantern/Neck Ring	O-Ring	Expeller Ring Seal
A05 (Cr27)	HT200, A05	HT200	PTFE (Teflon)	3Cr13, Ceramic	SS321	Nitril Rubber	Natural Rubber

Slurry Pump Assembly with Complete Parts

In this video, we present a complete 3D animation of the centrifugal slurry pump assembly, including the bearing assembly, expeller seal, impeller, volute liner, and other parts. This demonstration aids in efficient slurry pump maintenance and spare parts replacement.

This heavy-duty slurry pump series is fully compatible with AH series Warman slurry pump.

FAQ

What is an expeller in a pump?

Expeller also called Back impeller. It is an open impeller mounted in the opposite direction of the shaft to the opposite side of the impeller rear cover. The main effect is to balance the axial force and reduce the pressure of the sealed chamber.

What is the difference between an impeller and an expeller?

In contrast, for the expeller to work most efficiently, it is set against the frame plate (i.e. in the opposite direction to how the impeller is set). The sacrifice in using expeller sealed pumps is an increase in the power consumed and the wear rate of the impeller and throat bush.

What is the function of the expeller ring?

Expeller rings are designed to create a seal between the impeller and the pump casing, preventing the slurry from leaking out of the pump and ensuring optimal performance. These rings are typically made of high-quality materials such as rubber, polyurethane, or metal to withstand the harsh conditions of slurry pumping.
