Pump Casing

The pump casing of a slurry pump typically refers to the frame plate and cover plate of a double-casing slurry pump, both of which contain replaceable wear-resistant metal or rubber liners.

PRODUCT DISPLAY

PRODUCT DETAILS

Production Descripiton

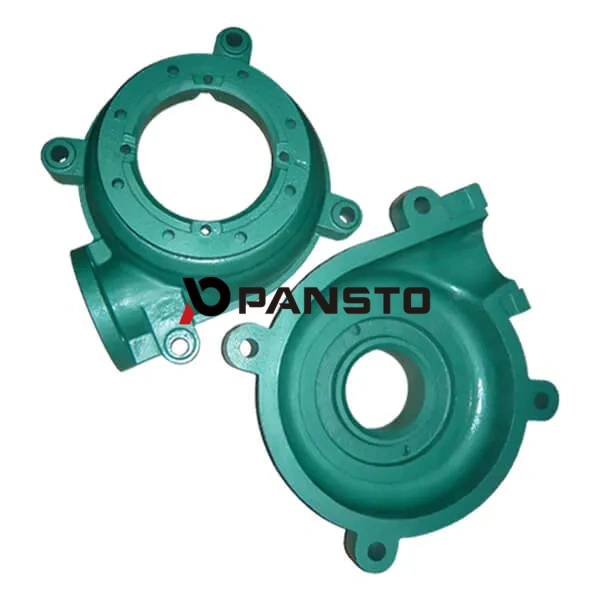

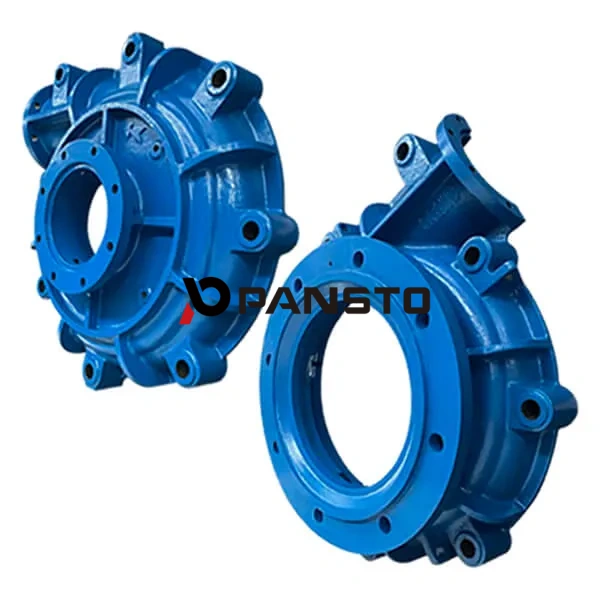

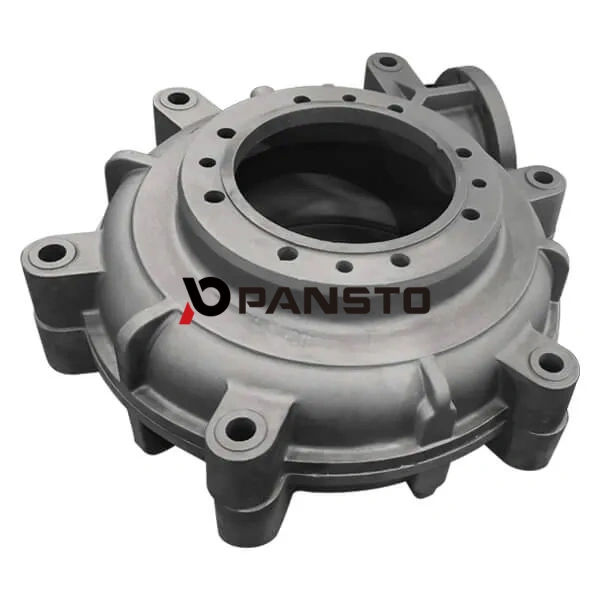

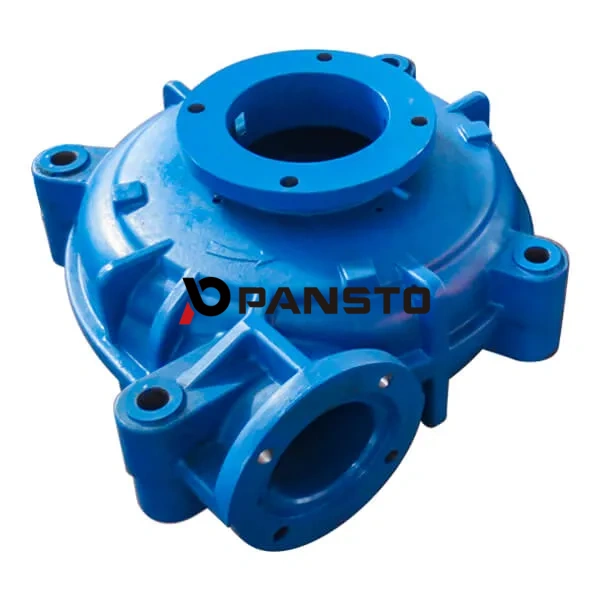

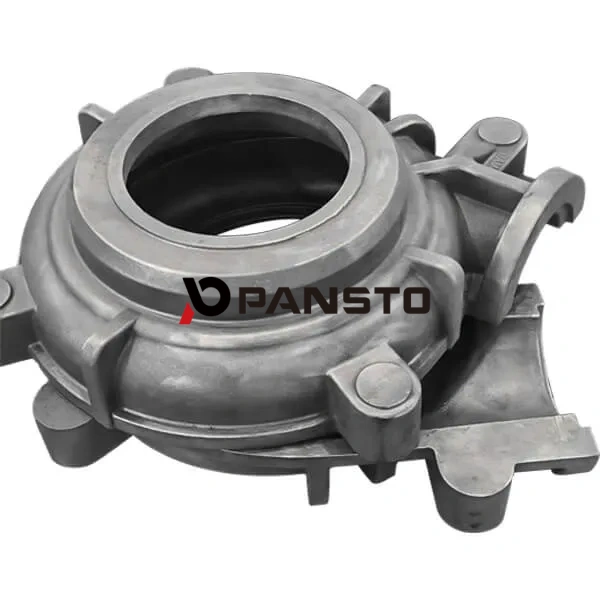

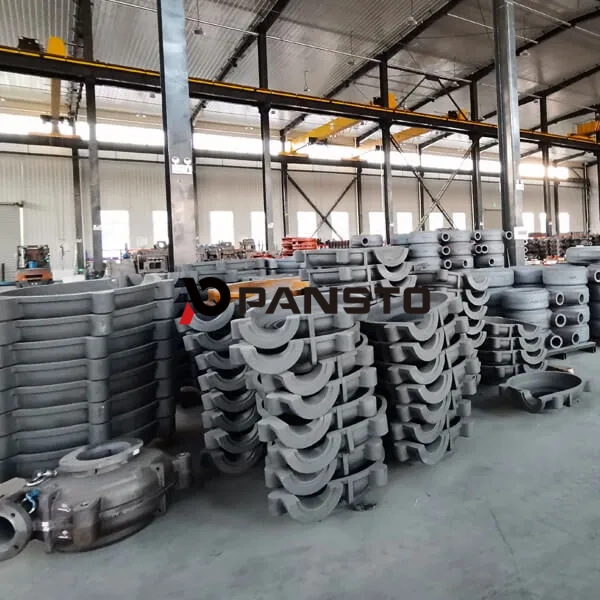

Pansto pump casing of a slurry pump typically refers to the frame plate and cover plate of a double-casing slurry pump, both of which contain replaceable wear-resistant metal or rubber liners. Since they do not directly contact the slurry, these parts are not vulnerable and are usually made of high compressive strength gray cast iron or ductile cast iron. It’s important to note that the frame plate and cover plate of double-casing slurry pumps are coupled during manufacturing and not sold separately.

For single-casing structured pumps like the G series gravel dredge pumps and the SP series vertical sump pumps, their pump casings typically refer to the volute casings, which directly contact the pumped slurry. High-chrome alloy materials are generally chosen for their construction.

Cover Plate is in suction end of split casing slurry pump. It’s the outer shell of the radial subdivision, and combined with Frame plate together make up the complete pump body. Cover Plate is under pressure of pump cavity, and at the same time bear the force of pipeline. So Cover plate need to have more higher request for strength.

Frame plate is in drive end of split casing slurry pump. It connects with Frame plate liner insert and beside the Bearing assembly. Same as the cover plate, Frame plate also bear the pressure of pump cavity. The working pressure of slurry pump is decided by the loading capability of frame plate, So the right materials of slurry pump frame plate is very important.

Specifications

Materials:

Double-Casing: HT200, QT500-7.
Single-Casing: High chrome alloy, Rubber Coating.

Compatible Pumps:

AH, AHR, HH, M, L, G, GH. SP, SPR, AF.

Pump Casing in Slurry Pumps

Double-Casing Slurry Pumps Diagram

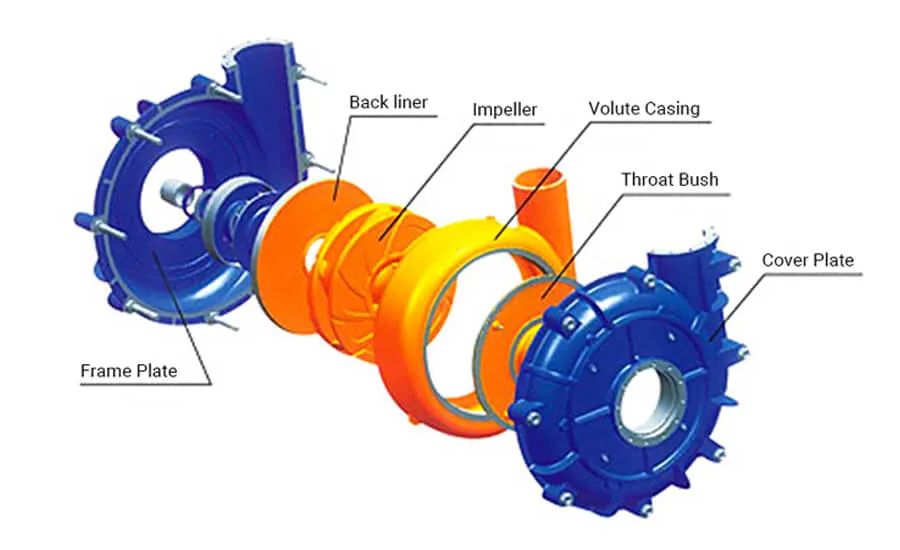

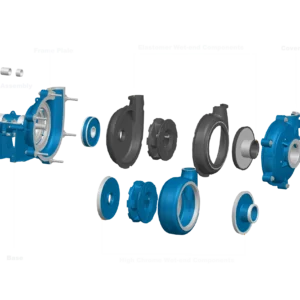

The diagram below shows the basic exploded view structure of commonly used double-casing horizontal slurry pump series such as SH, SHR, HHS, MS, and LS. The pump casings, including frame plates and cover plates, are crafted from gray cast iron materials.

Single-Casing Slurry Pumps Digram

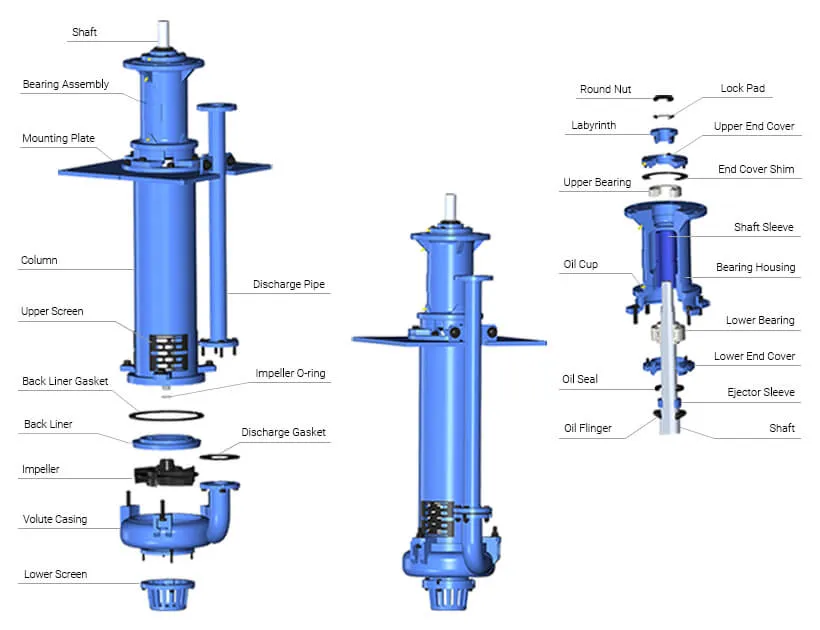

The diagram below shows the basic exploded view structure of the commonly used VP series single-casing vertical sump slurry pumps. Their pump casings, also known as volute casings, are crafted from high-chrome alloy materials.

Interchangeable Slurry Pump Casing Code:

The following list shows our commonly used slurry pump series materials and their corresponding pump casing codes, as well as some Warman slurry pump series that are fully compatible. For more pump casing models and detailed product information, as well as technical support, please feel free to contact our sales expert team anytime. We are happy to assist you!

Cover Plate	Frame Plate	Pansto SH Slurry Pump	AH Slurry Pump	Materials
B1313	B1032	SH1.5/1B	1.5/1B-AH	HT250, QT500
B15013	B15032	SH2/1.5B	2/1.5B-AH	HT250, QT500
C2013	C2032	SH3/2C	3/2C-AH	HT250, QT500
D3013	CAM3032	SH4/3C	4/3C-AH	HT250, QT500
D3013	D3032	SH4/3D	4/3D-AH	HT250, QT500
DAM4013	DAM4032	SH6/4D	6/4D-AH	QT500-7
E4013	E4032	SH6/4E	6/4E-AH	QT500-7
F6013	EAM6032	SH8/6E, SH8/6R, SH8/6F	8/6E-AH, 8/6R-AH, 8/6F-AH	QT500-7
G8013	G8032	SH10/8F, SH10/8ST	10/8F-AH, 10/8ST-AH	QT500-7
G10013	G10032	SH12/10ST, SH12/10F	12/10ST-AH, 12/10F-AH	QT500-7
G12013	G10032	SH14/12ST, SH14/12F	14/12ST-AH, 14/12F-AH	QT500-7
H14013	H14032	SH16/14TU	16/14TU-AH	QT500-7
Cover Plate	Frame Plate	Pansto SHH Slurry Pump	HH Slurry Pump	Materials
CH1013	CH1032	SHH1.5/1C	1.5/1C-HH	QT500-7
DH2013	DH2032	SHH3/2D	3/2D-HH	QT500-7
EH3013	EH3032	SHH4/3E	4/3E-HH	QT500-7
FH4013	FH4032	SHH6/4F	6/4F-HH	QT500-7
Cover Plate	Frame Plate	Pansto TM Slurry Pump	M Slurry Pump	Materials
F8013	EM8032	TM10/8E, TM10/8R	10/8E-M	QT500-7
Cover Plate	Frame Plate	Pansto TL Slurry Pump	L Slurry Pump	Materials
AL2013	AL2032	TL20A	20A-L	HT250, QT500
BL5013	BL5032	TL50B	50B-L	HT250, QT500
CL75013	CL75032	TL75C	75C-L	HT250, QT500
DL10013	DL10032	TL100D	100D-L	QT500-7
EL15013	EL15032	T150E	150E-L	QT500-7
SL30013	SL30032	300S-L	300S-L	QT500-7
Cover Plate	Frame Plate	Pansto TG(H) Gravel Pump	G(H) Gravel Pump	Materials
/	DG4131	TG6/4D	6/4D-G	High Chrome
EG86013	EG6131	TG8/6E	8/6E-G	High Chrome
F0108013	FG8131	TG10/8F	10/8F-G	High Chrome
GG10013	FG10131	TG12/10G	12/10G-G	High Chrome
GG1412292	GG12131	TG14/12G	14/12G-G	High Chrome
/	FGH8131	TGH10/8S	10/8S-GH	High Chrome
GGH10292	GGH10131	TGH10/12G	12/10TU-GH	High Chrome
HG14292	HG14131	TGH16/14TU	16/14TU-GH	High Chrome
Cover Plate	Pump Casing	Pansto TP(R) Vertical Slurry Pump	SP(R) Vertical Slurry Pump	Materials
/	SP4092	TP40PV	40PV-SP	High Chrome, Rubber
/	SP65092	TP65QV	65QV-SP	High Chrome, Rubber
/	SP0092	TP100RV	100RV-SP	High Chrome, Rubber
/	SP15092	TP150SV	150SV-SP	High Chrome, Rubber
/	SP20092	TP200SV	200SV-SP	High Chrome, Rubber
Cover Plate	Frame Plate	Pansto TF FroSH Pump	AH FroSH Pump	Materials
C2013	C2032	TF2QV	2QV-AF	HT250, QT500
E4013	E4032	TF4RV	4RV-AF	HT250, QT500

Rmarks：All OEM WEIR WARMAN slurry pump and warman pump parts descriptions are for reference only Pansto® independent trademark and not affilicated wiPH OEM.

FAQ

What is the difference between pump casing and volute?

A pump casing is often referred to as a volute. A volute is a spiral-like geometry with an increasing through-flow area, reducing the velocity of the fluid and increasing the static pressure. The fluid exiting the impeller is then diffused towards the casing discharge nozzle.

What are the advantages of a volute pump?

Wide operating range in which the pumps can operate.
The combination of a steel-mounted rotor unit placed in a volute made of concrete allows larger flows to be pumped with less quantity of pumps. …
The CVP design has a high degree of reliability and higher efficiency.

What is the difference between casing and impeller?

A volute casing or diffuser is used to convert kinetic energy to pressure. An impeller rotates and imparts kinetic energy onto the liquid surrounding it due to friction. As the impeller rotates, the liquid moves towards the outer periphery of the impeller and its kinetic energy is changed to pressure.

What is the service life of the pump casing?

As the strongest part of the pump body, the pump casing has a service life of up to 10 years unless it is corroded or damaged.
