Slurry Pump Bearing Assembly
The bearing assembly is one of the most critical components of a slurry pump. Typically located at both ends of the pump shaft, it supports axial and radial loads during operation. Its correct positioning helps stabilize shaft rotation, adapt to varying loads, and significantly extend pump service life. Depending on the pump model, the bearing assembly can be fixed or adjustable.
What is Slurry Pump Bearing Assembly

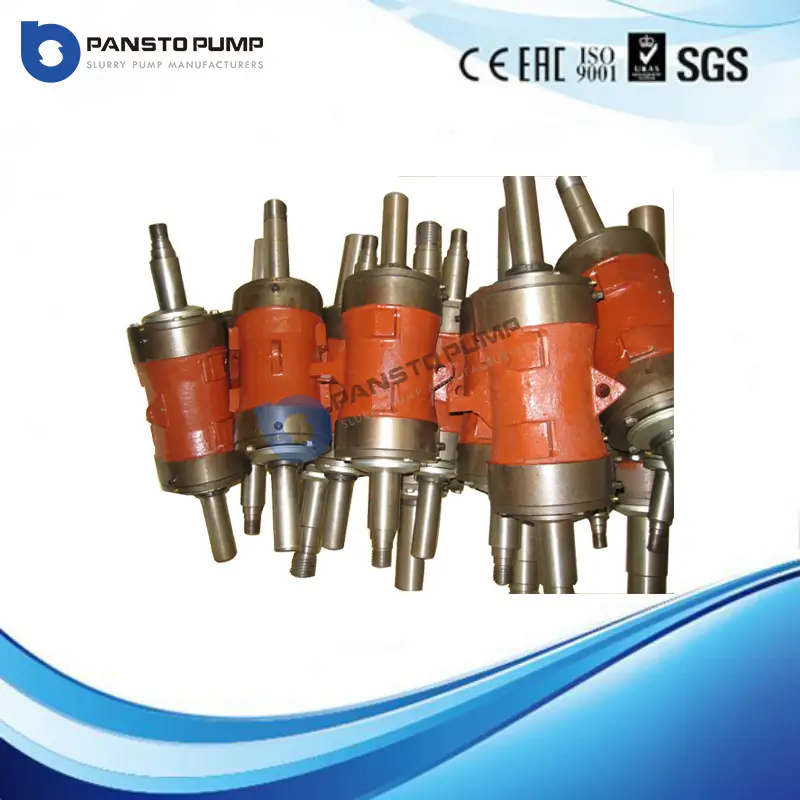

Pansto slurry pump bearing assemblies are categorized based on lubrication method, offering options for both grease and oil lubrication. Structurally, they are respectively cartridge and horizontally split types. We utilize heavy-duty bearings sourced from reputable brands such as ZWZ, SKF, and TIMKEN. They are combined with large shaft diameters and short overhang design, ensuring efficient and stable torque transmission, and prolonged bearing life.

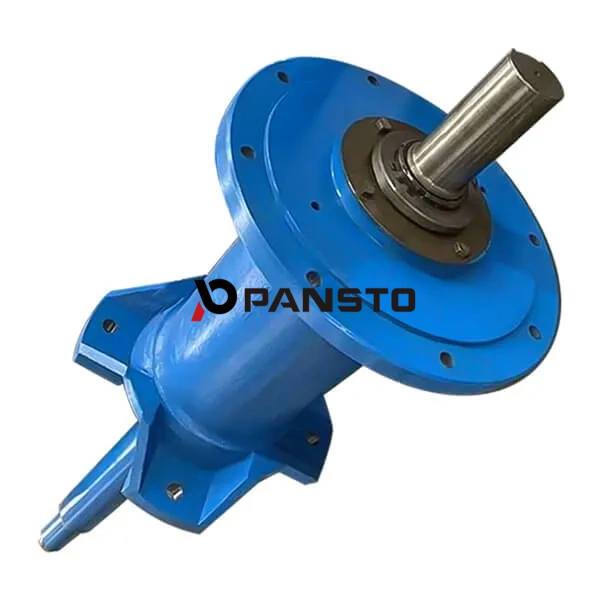

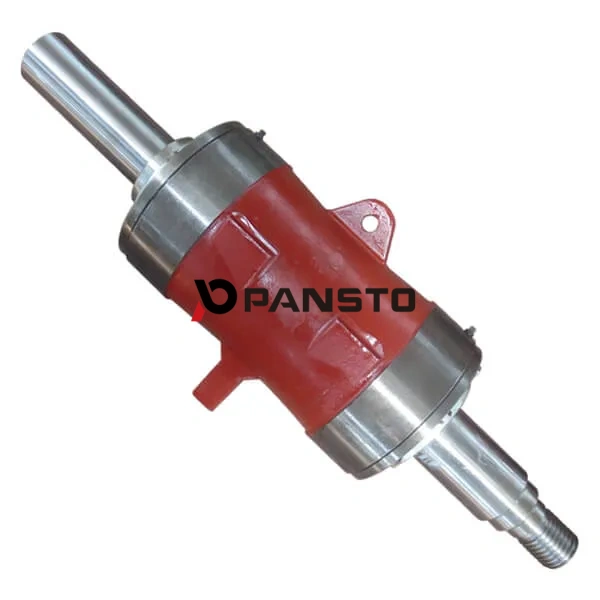

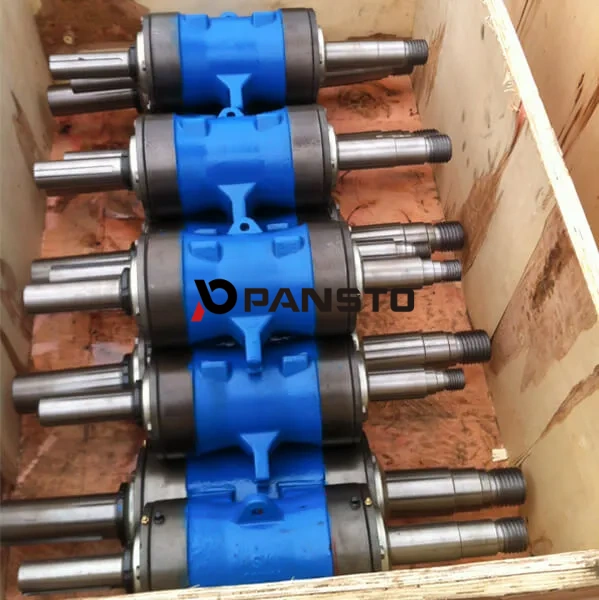

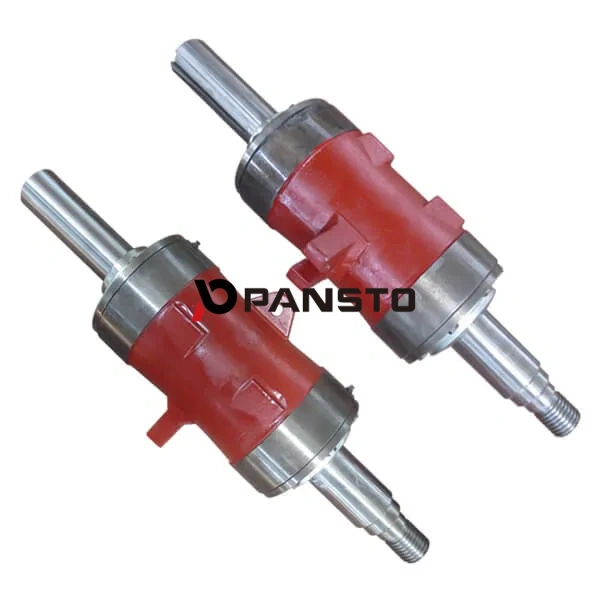

Pansto cartridge-type bearing assemblies are the most commonly used in various series of slurry pumps. They boast the advantages of being integrally removable and movable, simple to install and maintain, easy to adjust the impeller clearance, and grease-lubricated without the risk of oil leakage, among others. They are fully compitable with Warman slurry pump bearing assemblies. Proudly crafted in our leading slurry pump factory in China.
Features & Benifits
Slurry Pump Bearing Assembly is a vital part of every slurry pump, designed to provide reliability and durability even in the harshest operating conditions. This assembly handles axial and radial loads generated during the transportation of abrasive and corrosive fluids.
Pasnto Slurry Pump Bearing Assemblies are manufactured from high-quality materials and rigorously tested for strength and reliability. They offer:
- Extended service life, thanks to excellent resistance to abrasion and corrosion.
- Ease of maintenance, allowing for quick component replacement.
- Precision sealing, which prevents particle intrusion and enhances operational efficiency.
Structure of Slurry Pump Bearing Assembly

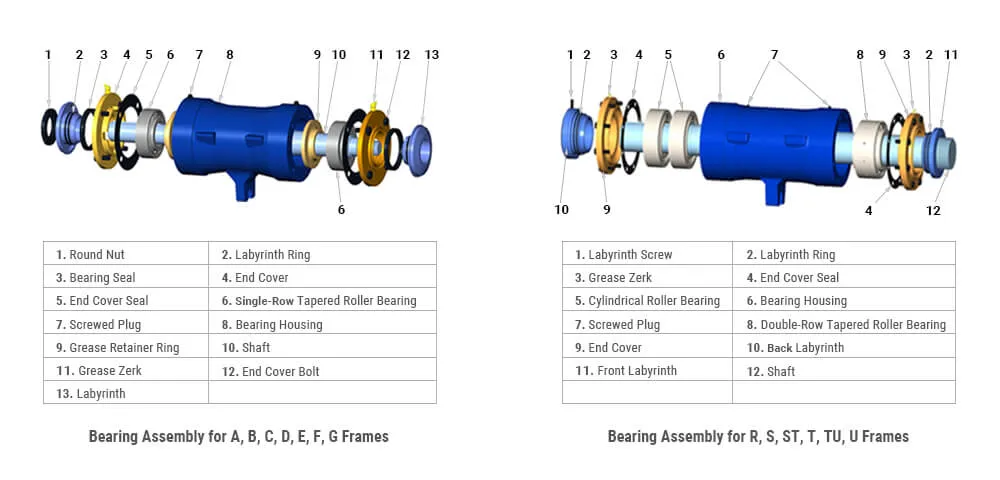

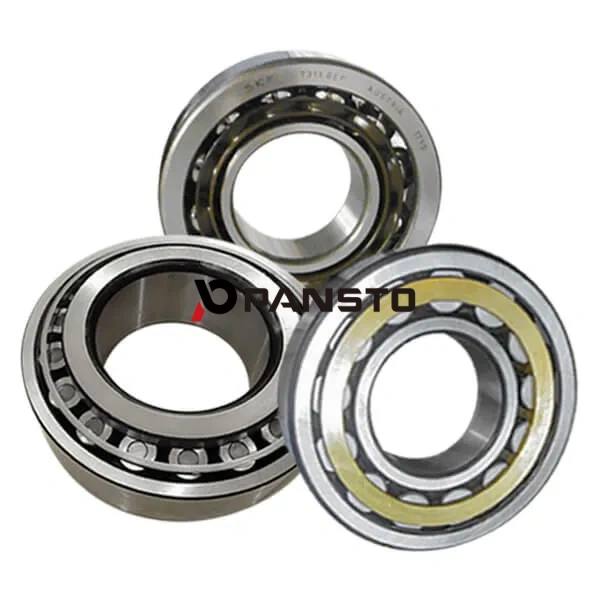

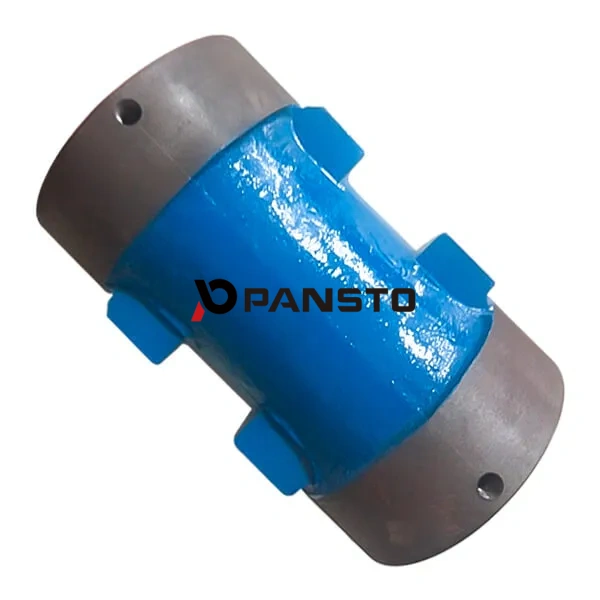

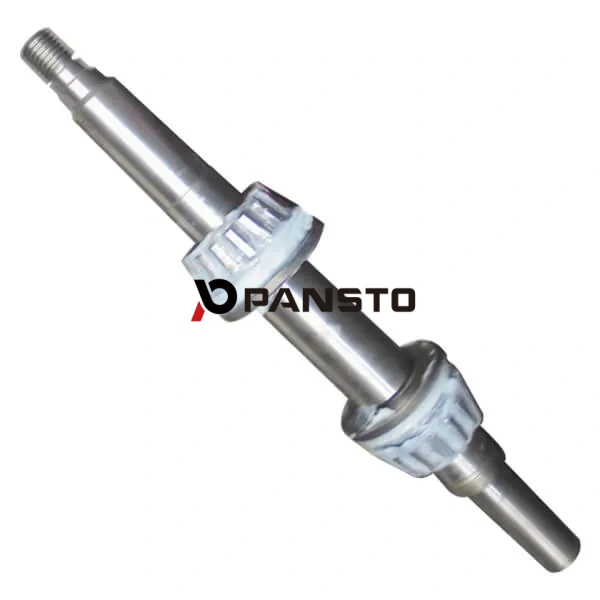

Standard slurry pump bearing assemblies consist of two sets of imperial single-row tapered roller bearings installed face-to-face in movable bearing housings. High-capacity bearing assemblies feature one set of imperial double-row tapered roller bearings installed near the pump end and one set of two groups of metric cylindrical roller bearings installed near the motor end. Lithium-based grease, recommended lubrication for the bearings, are suggested to be either No. 2 or No. 3.
Slurry Pump Bearing Assembly Code:
Bearing Assembly | AH Slurry Pump | Slurry Pump Bearing Brand |
B005M | 1.5/1B-AH, 2/1.5B-AH | ZWZ, SKF, TIMKEN Brand |
C005M | 3/2C-AH, 4/3C-AH | ZWZ, SKF, TIMKEN Brand |
D005M | 4/3D-AH, 6/4D-AH | ZWZ, SKF, TIMKEN Brand |
E005M | 6/4E-AH, 8/6E-AH | ZWZ, SKF, TIMKEN Brand |
R005M | 8/6R-AH | ZWZ, SKF, TIMKEN Brand |
FAM005M | 8/6F-AH, 10/8F-AH, 12/10F-AH | ZWZ, SKF, TIMKEN Brand |
SH005M | 10/8ST-AH, 12/10ST-AH, 14/12ST-AH | ZWZ, SKF, TIMKEN Brand |
TH005M | 16/14TU-AH, 18/16TU-AH, 20/18TU | ZWZ, SKF, TIMKEN Brand |
Bearing Assembly | HH Slurry Pump | Slurry Pump Bearing Brand |
CAM005M | 1.5/1C-HH | ZWZ, SKF, TIMKEN Brand |
DAM005M | 3/2D-HH | ZWZ, SKF, TIMKEN Brand |
EAM005M | 4/3E-HH | ZWZ, SKF, TIMKEN Brand |
FAM005M | 6/4F-HH | ZWZ, SKF, TIMKEN Brand |
Bearing Assembly | M Slurry Pump | Slurry Pump Bearing Brand |
EAM005M | 10/8E-M | ZWZ, SKF, TIMKEN Brand |
R005M | 10/8R-M | ZWZ, SKF, TIMKEN Brand |
Bearing Assembly | L Slurry Pump | Slurry Pump Bearing Brand |
ASC005M | 20A-L | ZWZ, SKF, TIMKEN Brand |
BSC005M | 50B-L | ZWZ, SKF, TIMKEN Brand |
CAM005M | 75C-L | ZWZ, SKF, TIMKEN Brand |
DSC005M | 100D-L | ZWZ, SKF, TIMKEN Brand |
ESC005M | 150E-L | ZWZ, SKF, TIMKEN Brand |
S005M | 300S-L | ZWZ, SKF, TIMKEN Brand |
Bearing Assembly | G(H) Gravel Pump | Slurry Pump Bearing Brand |
DAM005M | 6/4D-G | ZWZ, SKF, TIMKEN Brand |
EAM005M | 8/6E-G | ZWZ, SKF, TIMKEN Brand |
F005M | 10/8F-G | ZWZ, SKF, TIMKEN Brand |
S005-3M | 10/8S-G, 10/8S-GH | ZWZ, SKF, TIMKEN Brand |
G005M | 12/10G-G, 14/12G-G, 12/10G-GH | ZWZ, SKF, TIMKEN Brand |
TH005M | 16/14TU-GH | ZWZ, SKF, TIMKEN Brand |
Note:
* Pansto® is a registered trademark and does not represent or is not in any way affiliated with Warman® of Weir Minerals Group. All names,numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of Warman Pumps.
How To Install Slurry Pump Bearing Assembly
During slurry pump assembly, it is essential to uniformly heat the bearing to 80–100°C before mounting it onto the shaft. This thermal expansion allows the bearing to slide smoothly into position and ensures a tight fit.
After heating, the bearing should be installed quickly and accurately to prevent cooling. If the inner ring cools before proper positioning, it may fail to seat tightly against the shaft shoulder, leading to misalignment, premature wear, or reduced service life.
This installation method:
- Guarantees a precise mechanical fit
- Minimizes the risk of bearing damage
- Enhances pump performance and longevity
Correct bearing handling is a vital step in ensuring the durability and efficiency of slurry pumps operating under harsh industrial conditions.

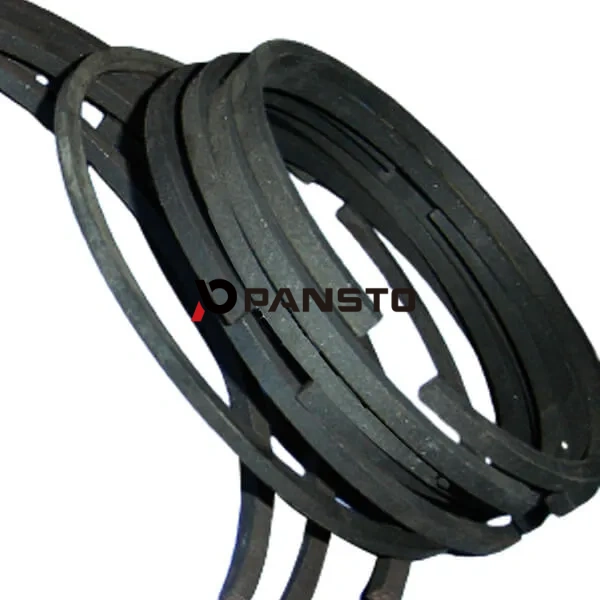

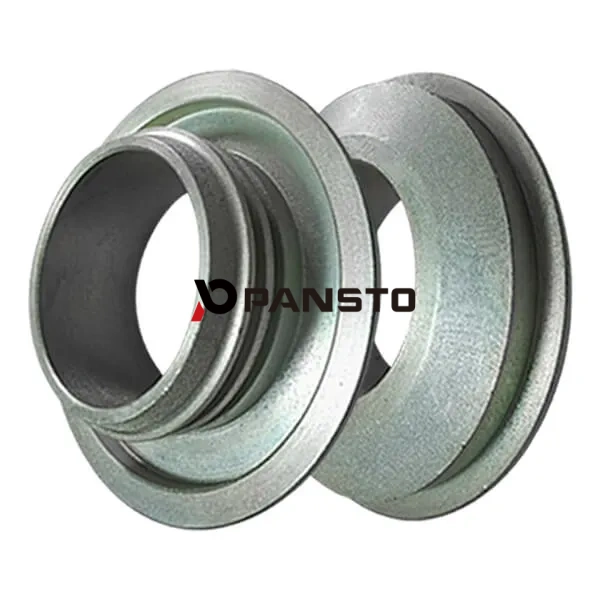

This video shows the installation process of the end cover labyrinth seal for the common cartridge grease-lubricated bearing assembly of Warman slurry pumps. The main parts include a lip seal, two metal labyrinth rings, and a labyrinth sleeve, which are installed in sequence. It’s important to note that the fastening methods for the labyrinth sleeves at both ends of the bearing assembly differ. On the pump end, it is secured by the impeller and shaft sleeve pressing against it, while on the drive end, it is fastened using a round nut.
How To Maintain Slurry Pump Bearing Assembly
The slurry pump bearing assembly is also called the rotor component, belonging to the slurry pump accessories component, which is an important part of the slurry pump and is the transmission power device. The bearing assembly is used to connect the pump and motor parts to form a complete working system. The stability of the slurry pump bearing assembly directly affects the operation and service life of the pump.
All before change bearing,you have to clean bearing housing,bearing end cover,shaft and other fittings to prevent dirt,protective coating or lubricating oil.
Do not wash the lubricant from the bearing manufacturing plant put on bearing.
The manufacturer uses a high-grade acid-free lubricant(there are no chemicals and impurities inside that may cause corrosion).
Any additives added must be absolutely clean.
Take the following actions when replacing the bearing:
- Get all things covered to prevent dirt.
- Use special tools for friction,do not use wood scrapers and use steel or putty knives.
- If lubrication gun is used,the grease nipple and lubrication components should be kept clean.
The slurry pump bearing assembly is critical.This is the rotor part of the slurry pump.
The quality of the bearing and the assembly process are good enough to affect the performance of slurry pump.
We should try to meticulous and continuous experience to avoid failure of the slurry pump bearings,thus ensuring the working life of the slurry pump.
Whether you’re looking for a replacement bearing assembly or an upgrade to improve your pump’s performance, we provide reliable products tailored to meet your requirements. Contact us for consultation or to place an order.
