Slurry Pump Parts

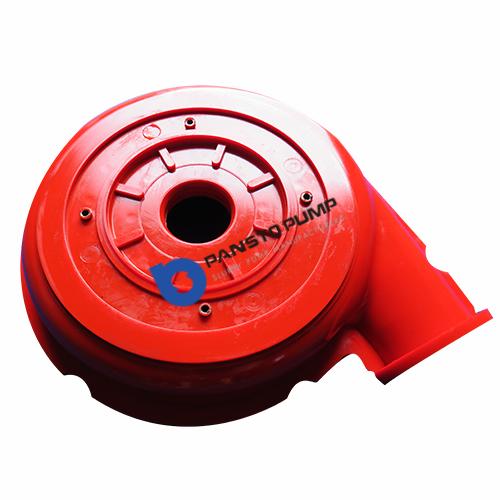

Pansto offers Warman Slurry Pump Parts, Warman Rubber and Polyurethane Parts, all can replace Warman AH Slurry Pump Spares, Warman slurry pump spare parts.

PRODUCT DISPLAY
PRODUCT DETAILS

Description

Pansto Slurry Pump Spare Parts namely the pump parts have direct connection with slurry, are very crucial to the service life of slurry pumps. The wet parts, include impeller, volute liner, throatbush, frame plate liner insert, casing, etc., are very easily worn-out components because they work under longtime impact of abrassive and corrosive slurries in the high speed. For the long service life of pump parts, the material plays an important role here.

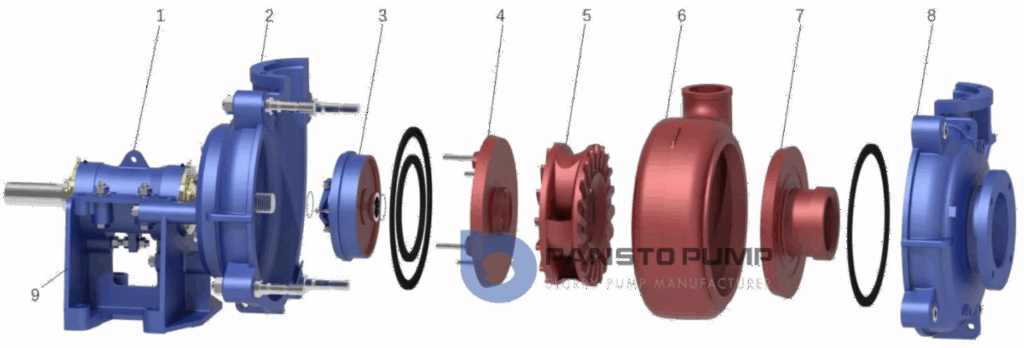

Pansto Warman AH Pumps - Exploded view for Metal liner

1.Bearing assembly

2.Frame Plate

3.Shaft seal assembly

4. Frame Plate liner Insert

5.Impeller

6.Volute Liner

7. Throat bush

8.Cover

9.Base

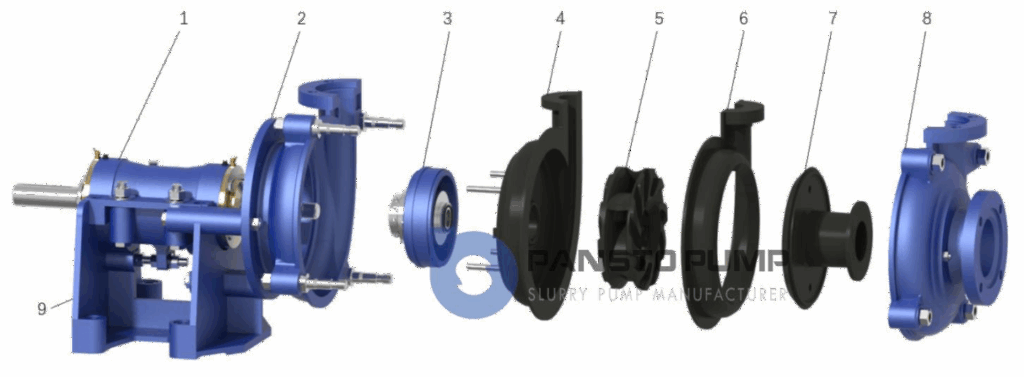

Pansto Warman AHR pumps - Exploded view for Rubber liner

Repalce Warman Spare Parts

We supply interchangeable slurry pump spares with Warman. Depending on different applications, we have different materials, such as high chrome, dual-phase steel, rubber, polyurethane, ceramic, etc.

We are a professional slurry pump and parts manufacturer, we know the exacting tolerances and engineering standards required to build and maintain these Warman pumps, and the Warman pump parts we supplied are identical to the parts from Weir Warman.

Warman pump parts consist mainly of impellers, volute liner, throat bush, frame plate liner insert, seals, shaft sleeves, bearing assemble, etc.. A good number of our customers use Warman pumps, in dealing with the OEM, customers are constantly faced with high costs, slow delivery times and little to no customer service, so we started to supply Warman pump replacement parts that are fully interchangeable with original Warman pump parts.

Warman pumps are kept on improving over the years, it is difficult to find new replacement parts. But the lead time and the price from Weir Warman are terrible as always, closed cooperation with our customers and resolve our customers’ problem make us develop latest replaced spares, now we can supply a great many replacement parts for Warman pumps, and we are able to make Warman pump parts according to samples even if no drawings.

We are happy to consult with you to recommend the best material such as A05, A07, A49, rubber, ceramic, etc for your application and supply you with qualified spares. All of our pump spares are interchangeable with Warman originals and have the same working life, but we offer a much lower price. We have most of these spares available in our inventory and can deliver within five days after receipt of your purchase order.

The following Warman Pump Parts list provides the basic part number and description for most Warman pump parts, click on one of basic part numbers or descriptions to get more details, or send mail to us directly to find the replacement parts for your Warman pumps.

Warman Pump Parts Number

001

adjusting screw

003

Base

004

bearing housing

005

Bearing Assembly

008

Bearing Sleeve

009

Bearing

009D

Bearing(Drive End)

011

Clamp Washer

012

Clamp Bolt

013

Cover Plate

015

Cover Plate Bolt

016

Cover Plate Liner

018

Cover Plate Liner

023

Screw/Stud

024

End Cover

025

Shim/(Gasket)

026

FPL Insert Stud

027

End Cover Set Screw

028

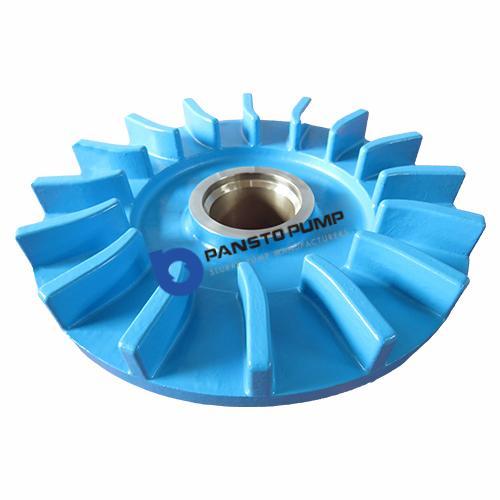

Expeller

029

Expeller Ring

029R

Rubber Expeller Ring

032

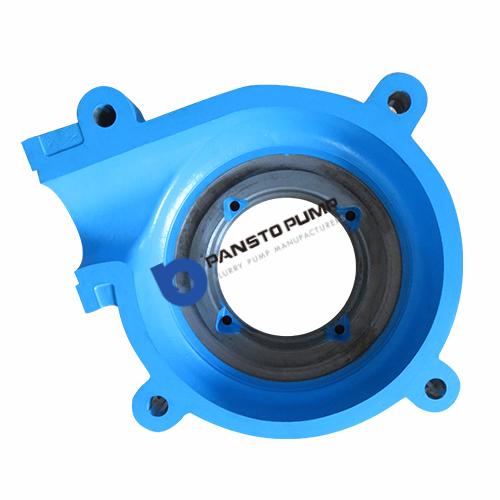

Frame Plate

034

Frame Plate Blot

036

Frame Plate Liner

039

Frame Plate Stud

041

FPL Insert (back liner+expeller+volute liner)

044

Gland Assembly

045

Gland Bolt

046

Grease Retainer

060

Intake Joint

061

Labyrinth Locknut

062

Labyrinth

063

Lantern Ring

064

Impeller O-ring

067

Neck Ring

070

Shaft Key

073

Shaft

075

Shaft Sleeve

078

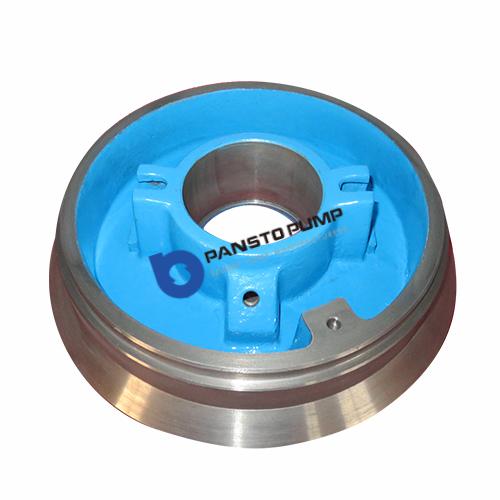

Stuffing Box

079

Stud

083

Throat Bush

085

Cotter

089

Bearing Seal

090

Shaft Seal

108

Piston Ring

109

Shaft O-ring

110

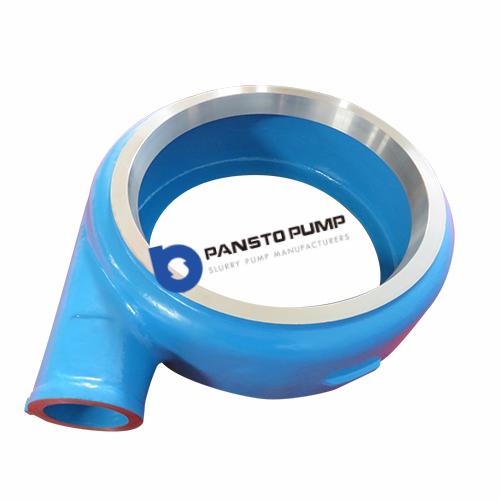

Volute Liner

111

Packing

117

Shaft Spacer

118

Lantern Restrictor

122

Stuffing Box Seal

124

Volute Cover Seal

125

FPL Insert Seal

126

Gland Bolt

132

Discharge Joint

138

Oil Cup Seat

179

Bearing Retainer

217

Impeller O Ring

239

Impeller Disassembly Device

241

Cup Gland

147

impeller





Features & Advantages

High Wear Resistance

The overflow parts of the AH series slurry pump are made of high-chromium wear resistant alloy materials, which has excellent wear resistance and is suitable for transporting highly abrasive slurry, thus prolonging the service life of the pump

Easy to replace and Maintain

Spare Parts are simple to design, easy to disassemble and install, making regular inspection, maintenance and replacement work more efficient, reducing the difficulty and workload of customers’ maintenance.

Precision Machining

The spare parts adopt a high-precision manufacturing process to ensure that the size and matching accuracy of each part meet the standard requirements, which can effectively avoid the pump performance degradation or early damage caused by poor matching or processing errors.

Corrosion Resistance

In addition to high chromium alloy, the AH series slurry pump also provides rubber lining options, which has good corrosion resistance and is suitable for handling corrosive slurry.

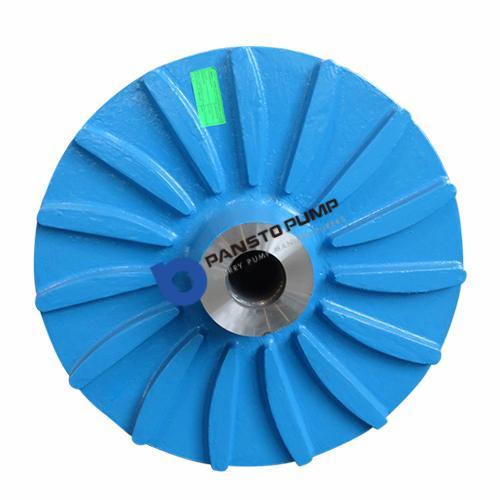

Impeller-for-slurry-pump
Note:
*Pansto is a registered trademark and does not represent or is not in any way affiliated with Warman® of Weir Minerals Group. All names,numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of Warman Pumps.
* Pansto slurry pump spare parts are only interchangeable with Warman® slurry pump spare parts.
* This document is the property of Pansto Pump and can be neither reproduced nor disclosed to a third party without a written authorization.

Slurry Pump Assembly with Complete Parts

In this video, we present a complete 3D animation of the SH series centrifugal slurry pump assembly, including the bearing assembly, expeller seal, impeller, volute liner, and other parts. This demonstration aids in efficient slurry pump maintenance and spare parts replacement. This heavy-duty slurry pump series is fully compatible with AH series Warman slurry pump.

FAQs About Warman Pump Parts

What Is Identification Of Oem Warman® Pump Part?

  • Each Warman pump part has a unique name and a three-digit Basic Part Number.Parts with the same name have the same Basic Part Number, regardless of pump size.For example, the bearing assembly of every Warman pump has the Basic Part Number 005.
  • Additional letters and numbers are added before and after the Basic Part Number to further define a component part of a particular pump,For example, Part Number E4110A05 identifies the impeller  to fit the casing of the 6/4E-AH pump, “A05” is the part material.
  • Weir Warman pump parts mainly made of metal or rubber.
  • Metal of high chrome white iron abrasion & corrosion resistant (A05 & A07 & A33 & A49 & A51 & A61) for impeller & liner, stainless steel (C21 & C23 & C26 & C55 ) for shaft sleeve & lantern ring or wet end parts,engineering steel (E02 & E62 & E05 & E65) for shaft and fasten bolts & nuts.
  • Rubber of abrasion resistance natrual rubber R55 for impeller & wear liner,synthetic elastomers-Neoprene (S42) & Hypalon (S31) & EPDM (S01) & Nitrile (S10) & Polyurethane (U01 & U38 ) for impeller & liner & O ring & joint seals.
  • Combinated material: J04 & J05 & J21 & J31 ceramic & chrome & tungsten carbide coated steel.
  • Generally a  Weir Warman slurry pump consist 30~40 units components and could be subdivided into the wet end,the mechanical end and the support end.
  • The wet end clearly awared the slurry pass through parts,such as the impeller,volute liner,back liner and throatbush-the most wear parts of abrasion,corrosion and errosion.
  • The mechanical portion of the pump includes the pump shaft, shaft sleeve, sealing arrangement, and the bearings assembly.
  • The support end include the frame and casing plate.
  • The wear parts include the wet end parts and some mechanical spares – shaft protection sleeve,shaft sleaing gland packing,lantern ring,lantern restrictor,expeller,expeller ring,stuffing box.

The Weir Minerals Group Warman® brand slurry pumps with 60 years history are the world standard for heavy duty slurry pumping solutoins. Pansto® horizontal and vertical slurry pump parts have been rigorously reverse engineered using  2D 3D modeling. First article inspection involves comparison to OEM parts followed by fit and material testing. All impellers have been performance tested to certify them against OEM Warman pump performance and equal service time.
