AF Vertical Froth Pump | Warman AF Froth Pump Replacement

Pansto® AF series a vertical cantilever pump completely with hopper which utilises casing and liners from the AF series. Designed to pump mineral froth more efficiently by de-aerating or partially deaerating the froth before it enters the pump head,utilising and included vortext princiapal.

(Interchangeable with OEM Warman AF Seires Slurry Pump)

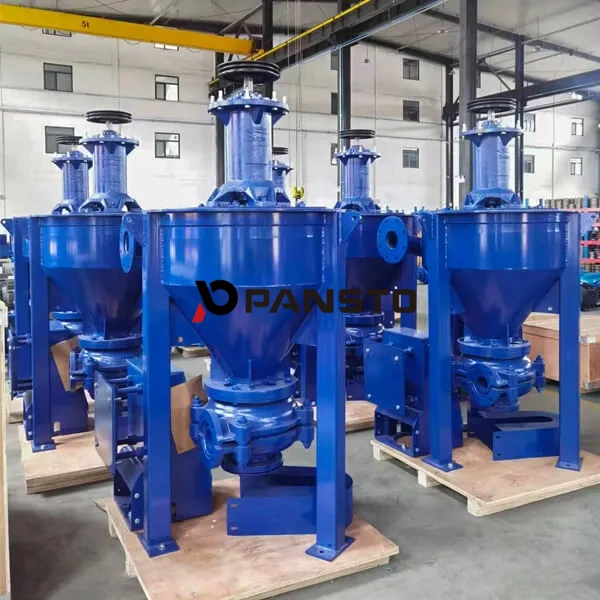

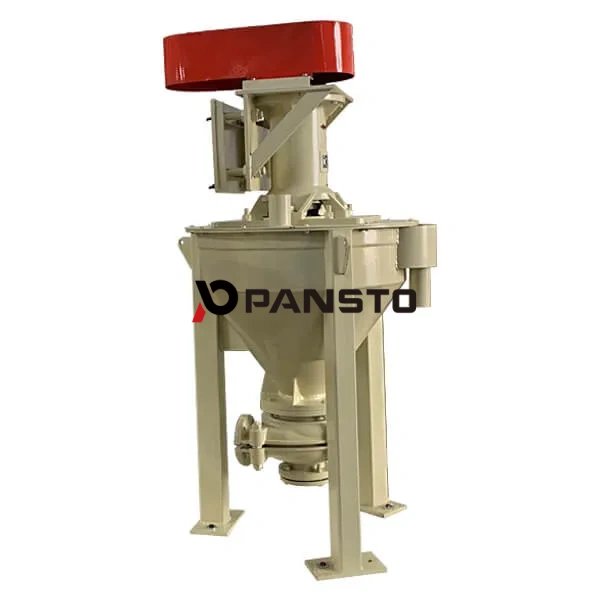

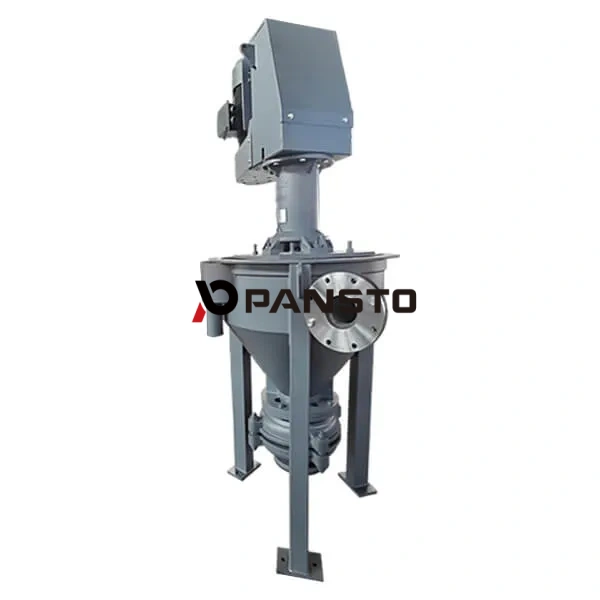

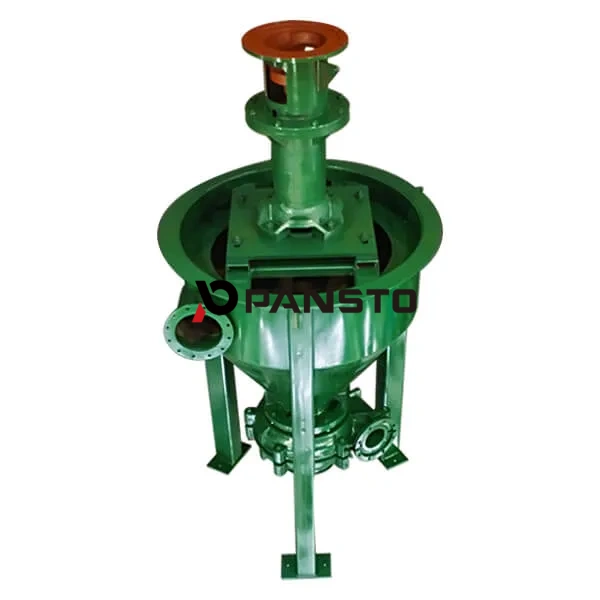

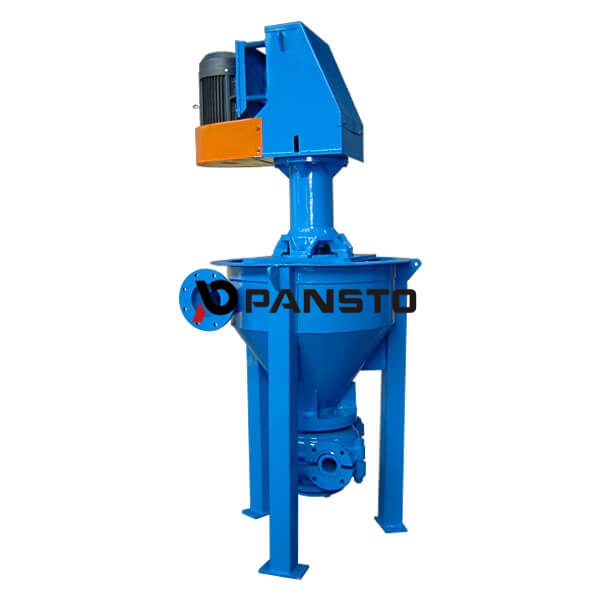

PRODUCT DISPLAY

PRODUCT DETAILS

AF Vertical Froth Pump Description

The viscous chemical froth produced for mineral processing and oilsand extraction, though necessary, can quickly overwhelm the capabilities of a standard slurry pump.To address this concern, specifically the Pansto AF series froth pump to convey frothy, corrosive slurry.
Among their many benefits, when working, these pumps can effectively eliminate the foam of slurry weight and can maintain normal function, despite insufficient incoming materials. They are especially suitable for various flotation processes and are also ideal for conveying foamed paste.

Pansto AF series froth pump is a new generation of products developed by our company based on the introduction of advanced technology at home and abroad. This series of pumps can effectively eliminate the froth in the slurry when working, and can still work normally under the condition of insufficient incoming materials, especially suitable for various flotation processes, is the ideal product for conveying froth slurry.

Features & Benefits

Robust Structural Design: Featuring a double-casing with lined wear and corrosion-consistent wetted parts, and a sturdy vertical shaft, ensuring reliability and an extended service life.
Optional Wetted Parts: Commomly made from high chrome alloy, rubber, or polyurethane are availabe for enhanced adaptability to highly corrosive slurry with froth.
Special Conical Tank: Employing a conical feed tank with a tangential feed inlet and an overflow port, this design improves the contact time between froth ore slurry and air. It facilitates air bubbles escape, ensuring the efficient discharge of excess froth from the tank.
Optimal Impeller Design: Utilizing a semi-open impeller with vanes on the upper side of the impeller shroud, creating a vortex that aids in air bubbles escaping from around the shaft.
Flexible Drive Arrangement: Choose between direct coupling or belt drive based on working conditions and individual preferences.
Reliable Bearing Assembly: Adopting integrally movable cartridge bearing assembly from SP vertical sump pumps with grease-lubricated roller bearings, allowing for easy maintenance and simple impeller clearance adjustment.
Cost Savings: With no submerged bearings or shaft seals, the need for shaft seal water is eliminated, resulting in reduced operating costs.

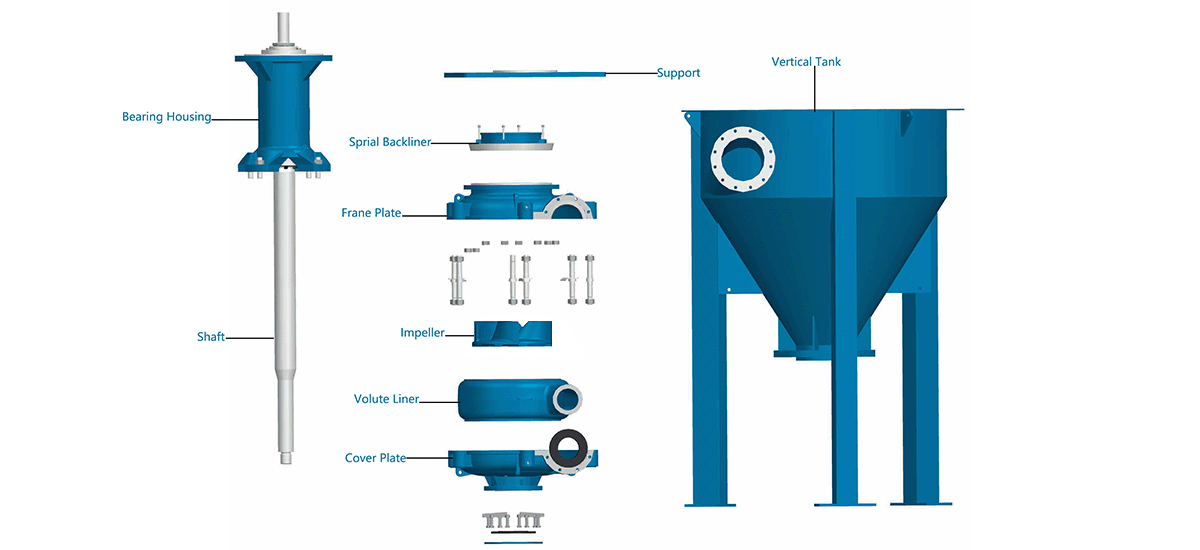

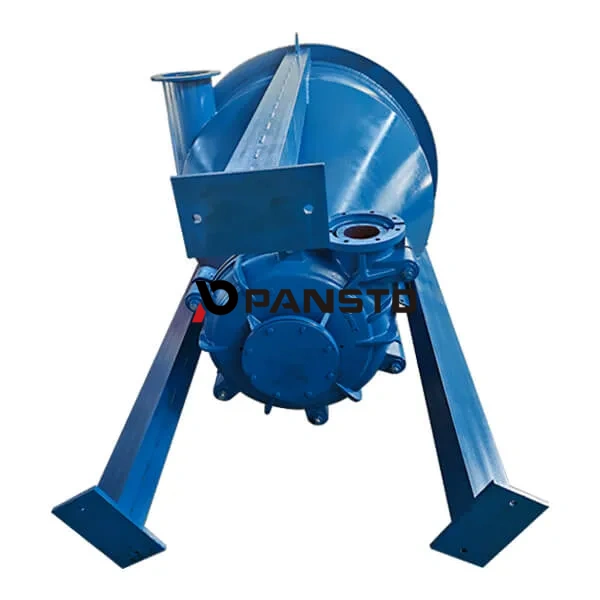

Constructions

Impeller:Semi-open impeller designs with vanes located on both sides of the shroud are suitable for pumping froth.

Metal and rubber lined pump:Totally interchangeable thick rubber or hardened metal liner.

Casing:Two halves radially split casing with minimum casing bolts reducing maintenance and minimise downtime.

Bearing Assembly:The maintenance friendly bearing assembly has heavy-duty roller bearings, robust housings, and a massive shaft convert from AlphaFlo V sereis vertical sump pump.

Shaft sealing: Cantilever vertical pump no shaft seal requirement.
Metal and rubber lined pump: Totally interchangeable thick rubber or hardened metal liner

Pansto® AF Vertical Froth Pump Specifications:

Model	Inlet (mm)	Outlet (mm)	Matching Power P (kw)	Capacity Q (m³/h)	Head H (m)	Speed n (rpm)	Eff. η (% )	Impeller diameter. (mm)
2QV-AF	100	50	3-15	6-43	6-30	800-1800	45	229
3QV-AF	150	75	3-18.5	23-78	5-28	700-1500	55	268
4RV-AF	150	100	5.5-37	33-187	5-28	500-1050	55	397
6SV-AF	200	150	15-75	80-393	5-25	250-680	55	560
8SV-AF	250	200	37-110	126-575	5-26	350-650	55	–

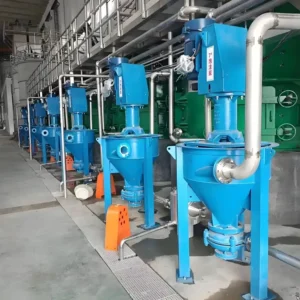

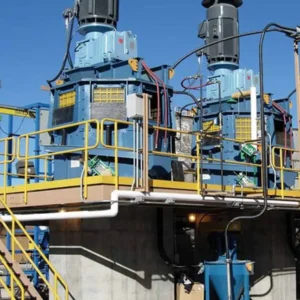

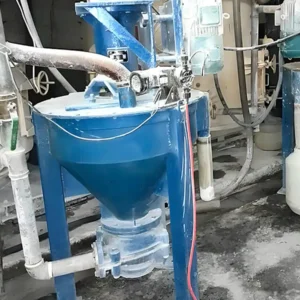

Applications

Hard Rock Mining

Mine Dewatering
Mill Discharge
Concentrator
Agglomerators
Tailings

Mineral Processing

Coal Washing
Phosphoric Acid Slurry
Sand Seperation

Industrial Processing

Sugar Industry
Chemical Process
Pulp Paper
Fuel Gas Desulfurization

Materials of Pansto Froth Pump

Metal Materials

Code	Description	Hardness	Applications
A05	27%Cr, Wear-resistant White Cast Iron.	≥58HRC	For abrasive wear with larger impact loads, suitable for working conditions with pH value of 5~12.
A49	28%Cr, Wear-resistant and Corrosion-resistant Cast Iron.	≥43HRC	Suitable for corrosive environments with low pH, 3.5≤PH≤13, especially suitable for flue gas desulfurization with PH≥4 device, usually used in low-acid environments.
A33	33%Cr, Wear-resistant and Corrosion-resistant Alloy.	≥35HRC	Used to transport oxidizing slurry with PH≥1, such as phosphogypsum, nitric acid, sulfuric acid, and phosphoric acid.

Elastomer Materials

Materials	Code	Description
Natural Rubber	R55	Black medium hardness natural rubber with excellent wear and corrosion resistance, suitable for conveying slurry of fine to medium particles without sharp corners.
Natural Rubber	R08	Back medium hardness natural rubber for impeller, used for impellers where superior corrosion resistance is required in fine particle slurries.
Natural Rubber	R26	Back soft natural rubber for liner, used for liner where superior corrosion resistance is required in fine particle slurries.

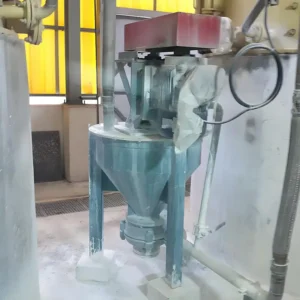

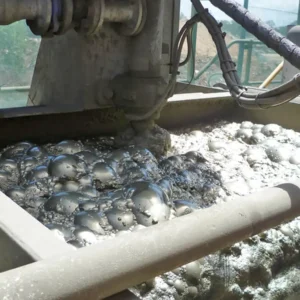

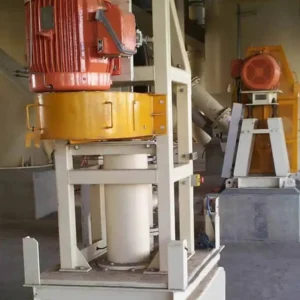

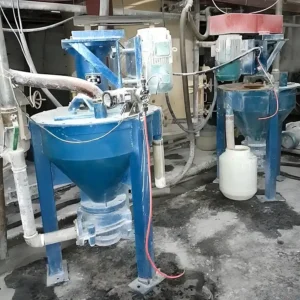

Industrial Froth Pumps Solutions

Discover Pansto Pump’s Froth Pumps, designed for flotation and froth handling in the mining industry. With stable performance and durable materials, our pumps ensure efficient operation.

FAQ

What Froth Factor Can Your Froth Pump Handle?

The froth pump selection will depend on the froth volume factor (FVF) and the flow rate of the slurry you need to pump.
It need to take into consideration the throughput of the plant and the actual stream the pump is in – concentrate or tailings – as well as what section of the flotation process the pump is installed in.

What Liners Are Available For Vertical Froth Pumps?

Froth contains very fine particles, and rubber liners withstand this type of wear very well, proving to be very cost-effective. We use rubber or metal liners, offering them in natural rubber, synthetic rubber options for slurries with hydrocarbon or reagents content, or high chrome white iron if required.

Can I Use Standard Centrifugal Slurry Pumps For Pumping Frothy Slurries?

Mineral froth is a three-phase aerated mixture containing solids, liquid and air. The air contained in the mineral froth complicates suction conditions, often resulting in an air lock at the impeller eye.
Unlike standard centrifugal slurry pumps, AlphaFlo® vertical froth pumps contain a unique impeller with oversized inducer blades on each vane and a large eye. This makes the entrained air bubbles dissipate or reduce in size so that they do not inhibit the flow of the slurry.
