How do dredge pumps work?
Pansto dredge pump contains a pump casing and an impeller. The impeller is mounted inside the pump casing and is attached to the drive motor via gearbox and shaft. The frontal portion of the pump casing is sealed using a suction cover, connecting directly to the dredge’s suction pipe. The dredge pump’s discharge is positioned near the top of the dredge pump and is connected to a separate discharge line.
The impeller is considered the core of a dredge pump and is similar to a fan that forces out air creating a centrifugal suction force. At the suction pipe, this vacuum absorbs the slurry and transports the material through the discharge pipeline.
① Dredging pumps have a unique design, featuring a firmly mounted support body containing a bearing assembly that supports the pump shaft. The front end of the support body is a fixed pump housing, and the pump cover is mounted on the front end of the pump housing. A cylinder head is located inside the pump housing, which serves as a large dredging pump. The impeller is located inside the cylinder head and fixed to the front end of the pump shaft. The radial clearance between the cylinder head and the pump housing is less than the wall thickness of the pump housing or cylinder head.
② By performing stress analysis, the water chamber clearance is optimized, thereby reducing the volume of the pump housing, reducing the weight of the pump, and minimizing the pressure area on the pump cover. As a result, the applied force is reduced, facilitating easier sealing between the pump cover and the pump housing, ensuring a good sealing effect.

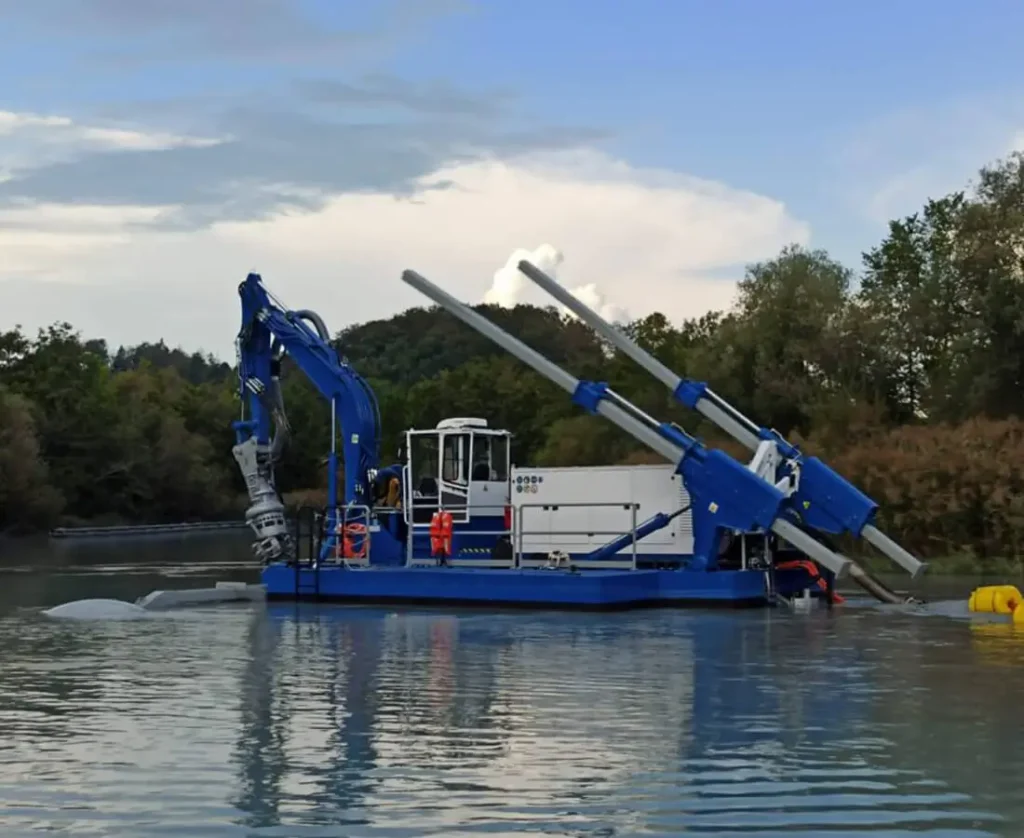

③ For cutter suction dredgers, dredging pumps are usually mounted on the hull with the center of the impeller located at or below the waterline. This configuration increases productivity and improves suction efficiency.
④ Dredging pumps are designed to handle large amounts of fluids and solids and can effectively move such materials.
Ideally, a dredge pump can achieve fluid accelerations that exceed the speed of its fastest moving parts. Some models of dredge pumps are capable of producing discharge pressures up to 260 feet (80 meters) of head. Despite the complex internal flow patterns, the overall performance of a dredge pump remains predictable.
Dredge Pump Characteristics
- Cutter suction dredges are typically equipped with a hull mounted dredge pump that has the center of its impeller located at or below the waterline for further production and improved suction efficiency.
- A dredge pump is designed to move a large volume of fluid and solids.
- In ideal conditions, a dredge pump can generate fluid acceleration greater than the speed of its fastest moving component.
- Certain models can generate discharge pressures up to 260 ft. (80 m) of head.
- A dredge pump’s overall performance is predictable, despite a complex internal flow pattern.
Types of Dredging Pumps

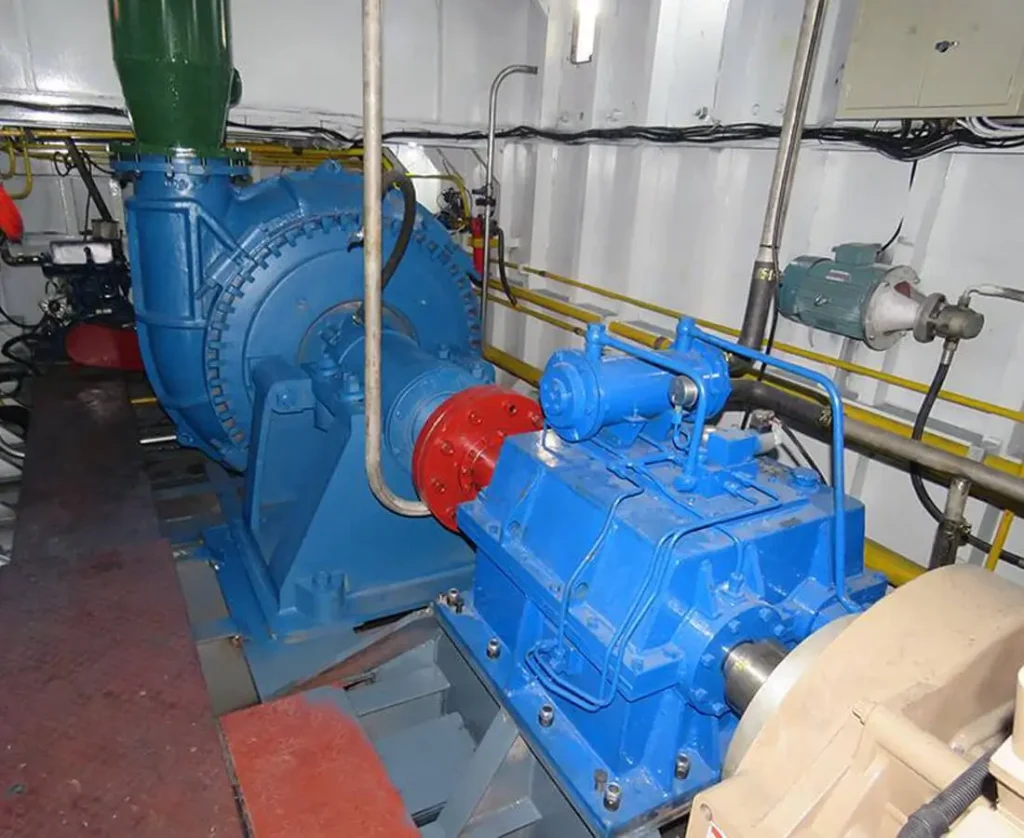

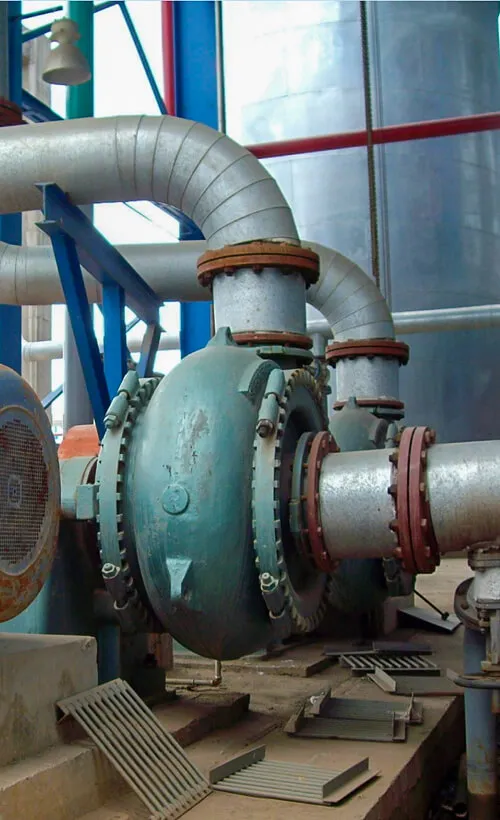

Horizontal Gravel Pump
Horizontal Sand Gravel Pumps are designed for handling abrasive materials and large volumes of sand. They are typically installed on a dredging platform such as dredger or barge, and connected to a suction and discharge pipeline.
Key Features:
- High efficiency and large capacity
- Strong wear-resistant components
- Suitable for continuous, heavy-duty operations
- Capable of handling large particles
Applications:
- River and lake dredging
- Land reclamation
- Sand and gravel extraction

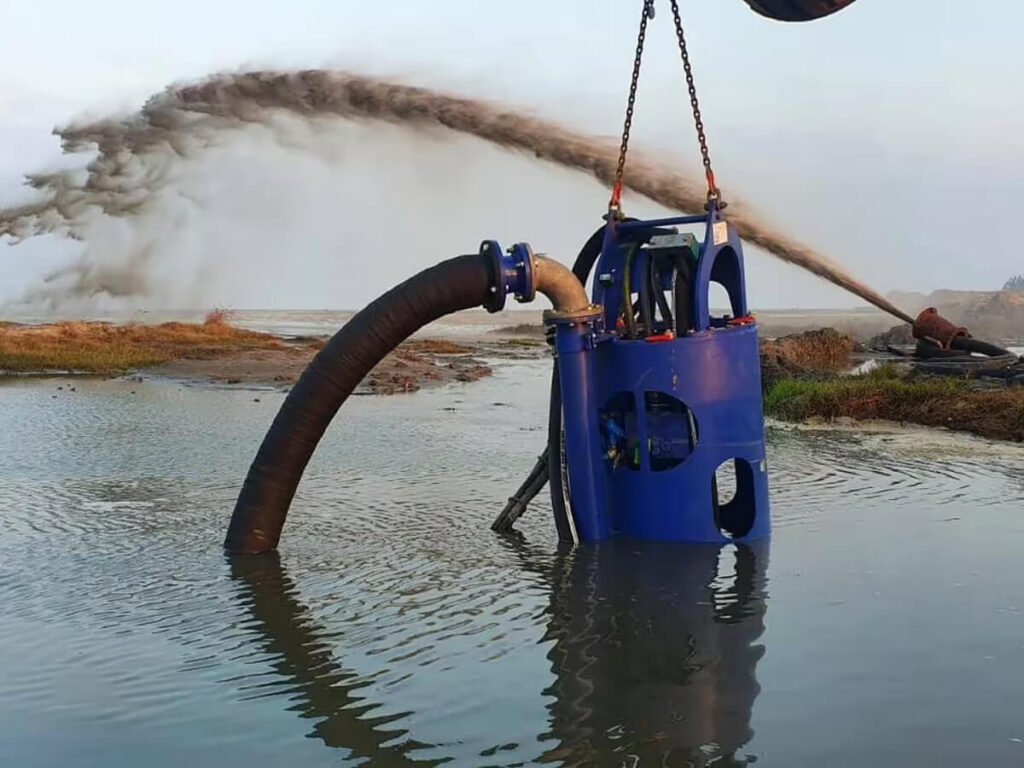

Submersible Dredge Pump
Submersible Dredge Pumps operate underwater directly at the dredging site. They are versatile, making them suitable for various underwater dredging tasks.
Key Features:
- Operates directly underwater, reducing the need for extensive pipeline systems
- High suction power for efficient sand extraction
- Compact design for easy maneuverability
- Suitable for dredging in deeper waters
Applications:
- Submerged sand extraction
- Coastal protection projects
- Underwater construction site preparation
How to select Dredge Pump
Type of Material
Identifying the material to be dredged is crucial. Besides sand, you may encounter silt, mud, gravel, and debris. Selecting a pump that can handle a variety of materials ensures smooth operation and optimal performance.
Flow Rate Goals
Determine the volume of material that needs to be moved per minute. Higher flow rate requirements necessitate more powerful pumps to meet project demands efficiently.
Pipeline Length
The length of the pipeline affects the power requirements of the pump. Longer distances necessitate more robust pumps to achieve greater pressure, ensuring effective slurry movement but also resulting in higher energy consumption.
Elevation Changes
Elevation variations in the pipeline affect the pump’s power needs. Significant elevation increases demand stronger pumps to overcome gravitational forces and maintain steady flow.
Density and Viscosity
The density and viscosity of the slurry influence the pump’s workload. Heavier and more viscous mixtures necessitate pumps designed to handle increased stress without compromising performance.
Abrasion Resistance
Sand and water mixtures are highly abrasive and can quickly wear down equipment. Selecting a pump with high abrasion resistance ensures durability and reduces maintenance costs. Look for pumps made from wear-resistant materials and designed to withstand harsh environments.
Practical Steps for Dredge Pump
1. Site Assessment
Conduct a comprehensive site assessment to determine the volume and type of material to be dredged, water depth, and identify potential obstacles. Evaluate environmental impacts and ensure compliance with applicable regulations. Additionally, consider the distance and elevation changes along the pipeline to determine the pump’s power and efficiency requirements.
2. Selecting the Right Pump
Choose between the Horizontal Sand Gravel Pump and the Submersible Sand Suction Pump based on:
- Water Depth: Use submersible pumps for deeper waters and horizontal pumps for shallower waters.
- Material Size: Horizontal pumps are better suited for larger particles, while submersible pumps handle finer materials effectively.
- Volume Requirements: Ensure the pump’s capacity aligns with the project’s needs.
3. Setting Up the Equipment
Proper setup is crucial for efficient dredging:
- Install the Pump: Securely position the pump and connect it to the power supply.
- Check Pipelines: Ensure all hoses and pipelines are correctly connected and free from leaks.
- Prime the Pump: Fill the pump chamber with water to remove air and prepare it for operation.
4. Dredging Operation
Execute the dredging process with attention to detail:
- Start the Pump: Gradually open the pump outlet valve to reach the desired flow rate.
- Monitor the Process: Continuously monitor suction and discharge to prevent blockages, as well as the operational status of bearings, seals, and motor, ensuring consistent and efficient flow.
- Adjust as Necessary: Modify the pump’s settings based on sediment type and volume.
5. Maintenance and Troubleshooting
Regular maintenance ensures the pump’s longevity and efficiency:
- Clearing Blockages: Periodically inspect and clear suction lines and filters to maintain optimal flow rates.
- Cleaning: Remove sediment buildup from pump components to prevent wear and maintain efficiency.
- Component Replacement: Replace worn-out parts promptly to avoid downtime and ensure continuous operation.
How to Increase Sand Slurry Density
To improve the concentration of sand during dredging, consider the following advanced strategies:
- Optimize Pump Positioning: Place the suction head or submersible pump as close to the sand bed as possible to maximize sand intake and minimize water intake.
- Use Agitators or Cutters: Equip your dredging system with agitators or cutters to loosen the sand bed, making it easier to capture a higher concentration of sand.
- Recirculate Slurry: Implement a slurry recirculation system that sends a portion of the sand-water mixture back to the dredging site to increase the density of the slurry being pumped.
- Optimize Pipeline Layout: Design the pipeline layout to reduce friction losses and maintain high velocity, preventing sand from settling and ensuring a higher concentration.
By implementing these advanced strategies, you can significantly increase the concentration of sand in your dredging operations, improving efficiency and reducing operational costs.
Best Practices for Sand Dredging
- Invest in Quality Equipment: Use high-quality pumps and accessories for reliability and efficiency.
- Train Your Team: Ensure your team is well-trained in operating and maintaining the equipment.
- Consult Experienced Experts: Seek advice from experienced experts to optimize sand dredging operations and address potential challenges.
How does submersible dredge pump work
Conclusion
Dredge pumps are an important part of the dredging field, and their key role is to remove sediment, debris, and other materials from the water body. Designed to handle large volumes of fluids and solids, these pumps utilize centrifugal force to efficiently extract and transport dredged materials.
A dredging pump consists of basic elements such as a pump casing, impeller, suction cover, and discharge port. It works by creating a vacuum effect at the suction pipe, sucking in the slurry and propelling it through the pump casing. The impeller rotates within the pump casing, transferring kinetic energy to the mixture, dislodging particles and entraining them in the fluid. The converted kinetic energy is then converted back into pressure energy, expelling the mixture through the discharge port and transporting it to the designated location.
Selecting the right dredging pump requires consideration of a variety of factors, such as the type and thickness of dredged material, power requirements, pump performance data, durability, ease of maintenance, and average life expectancy. In addition, matching pipe size and composition is essential to ensure uninterrupted material flow and achieve the desired pumping output.
Despite the complex internal flow patterns, the overall performance of dredging pumps remains predictable due to advances in engineering and design. These pumps continue to play a vital role in maintaining and establishing waterways, ports, and other water infrastructure, contributing to the smooth operation of various industries and protecting the environment.
Dredging pumps are capable of handling challenging dredging tasks, powering dredging operations around the world and facilitating the efficient removal and transportation of materials.
