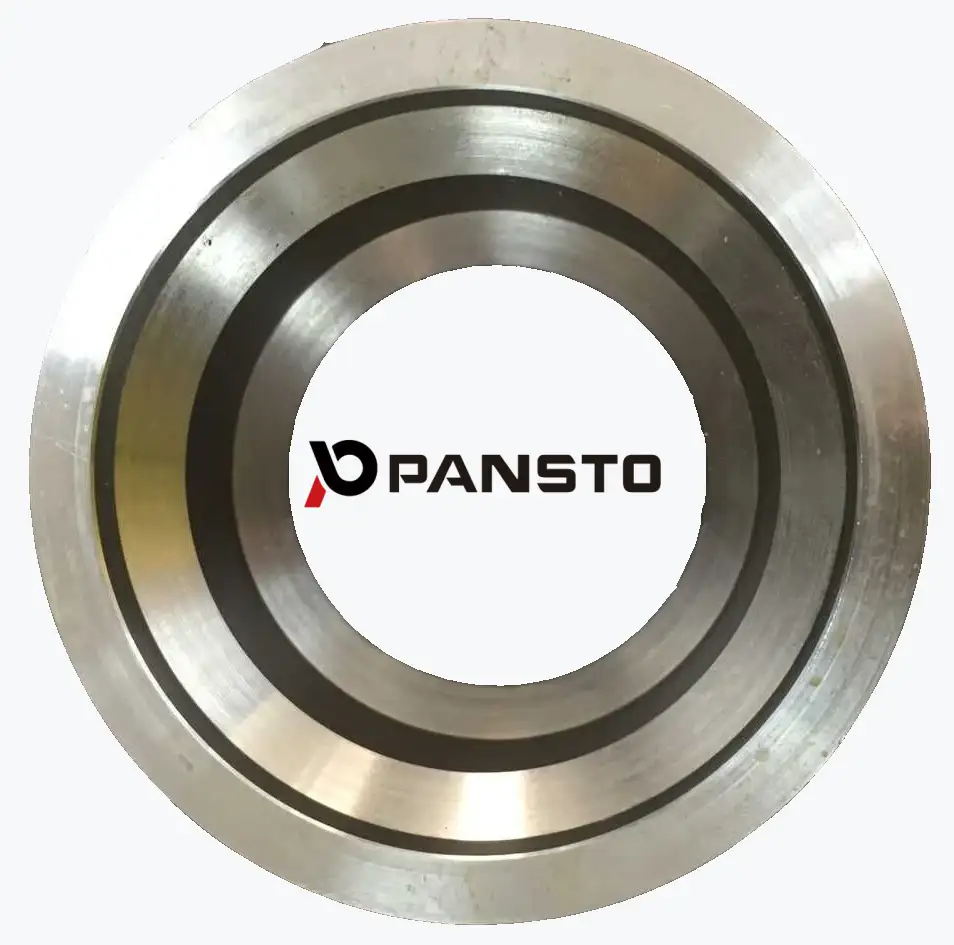

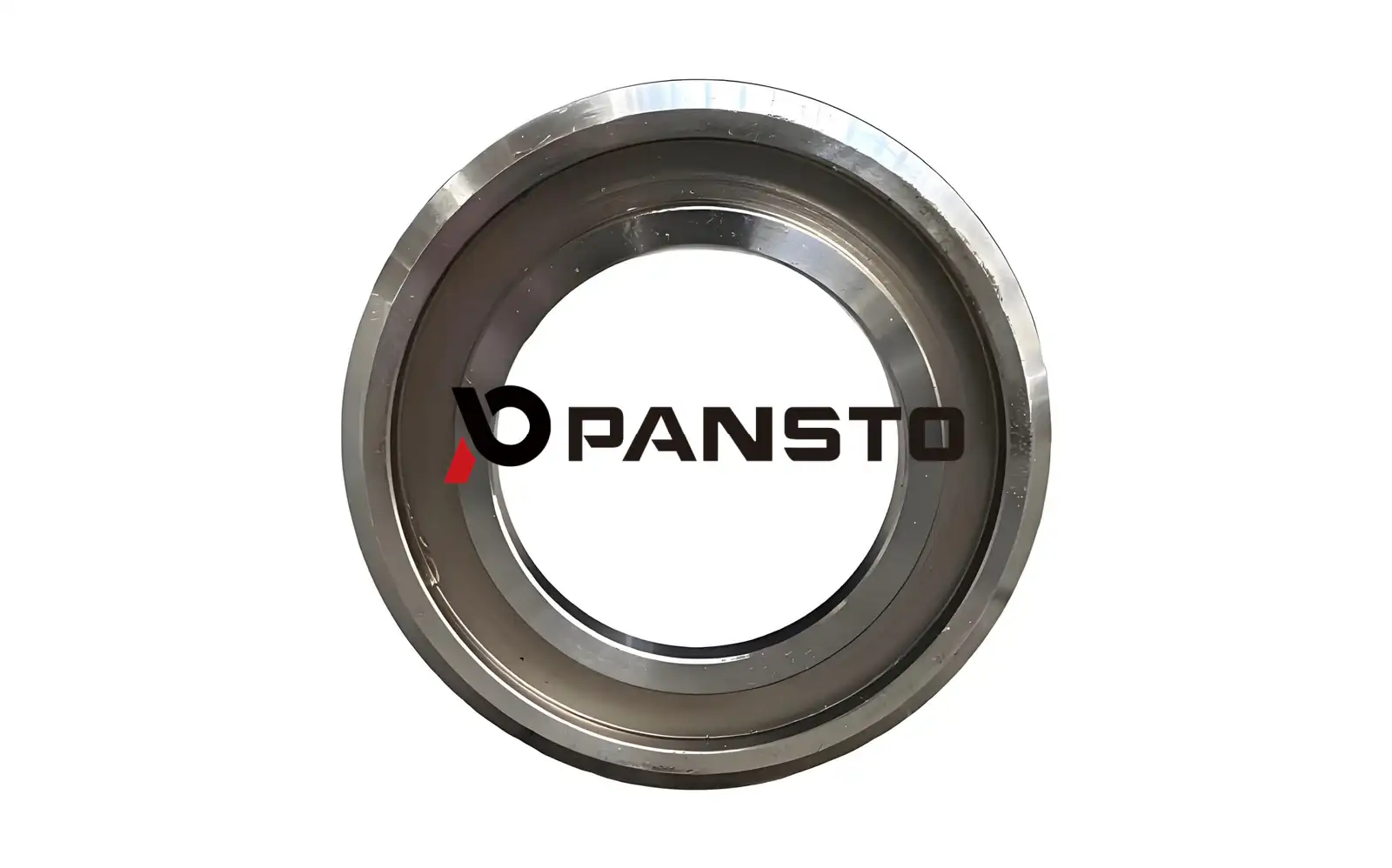

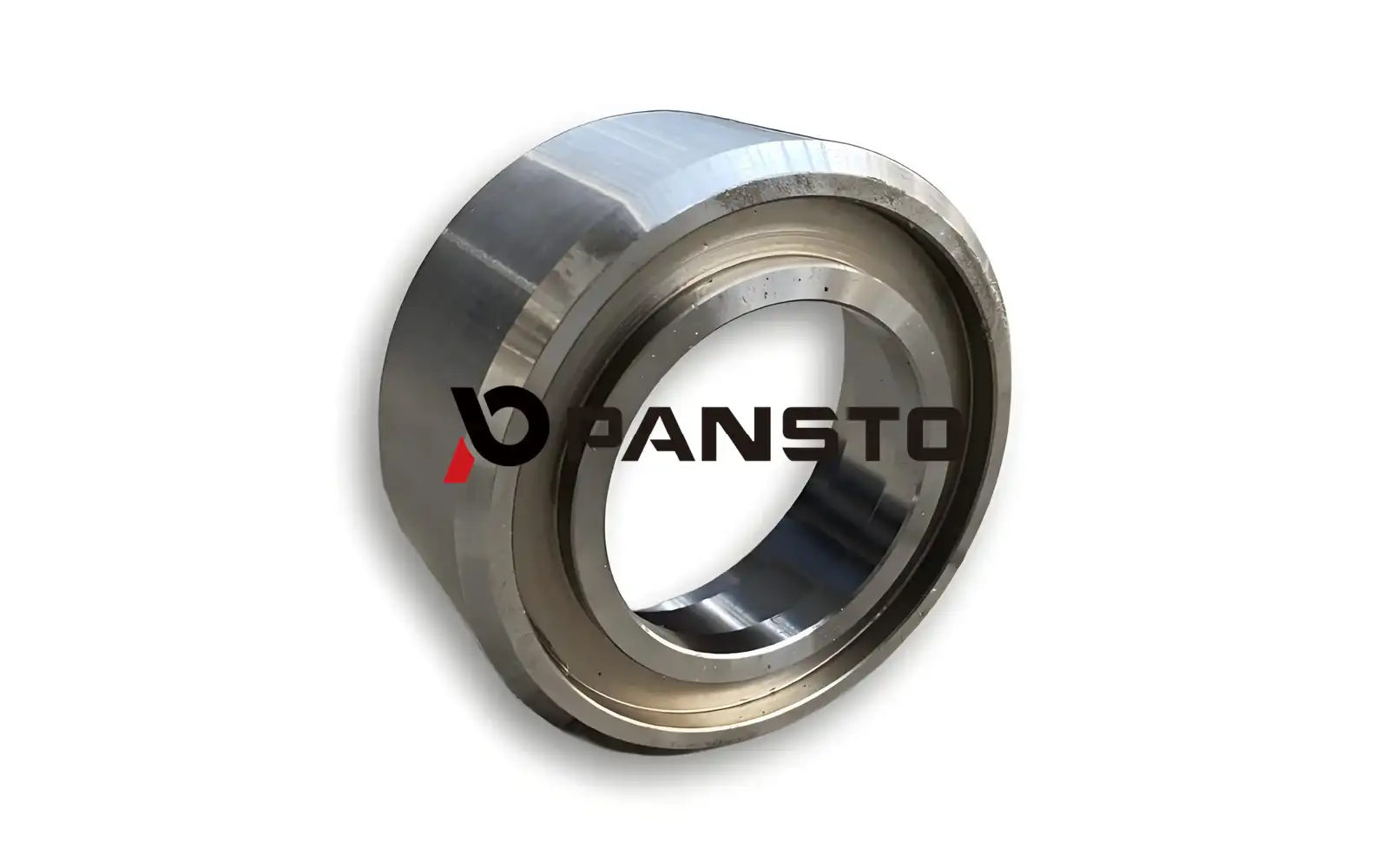

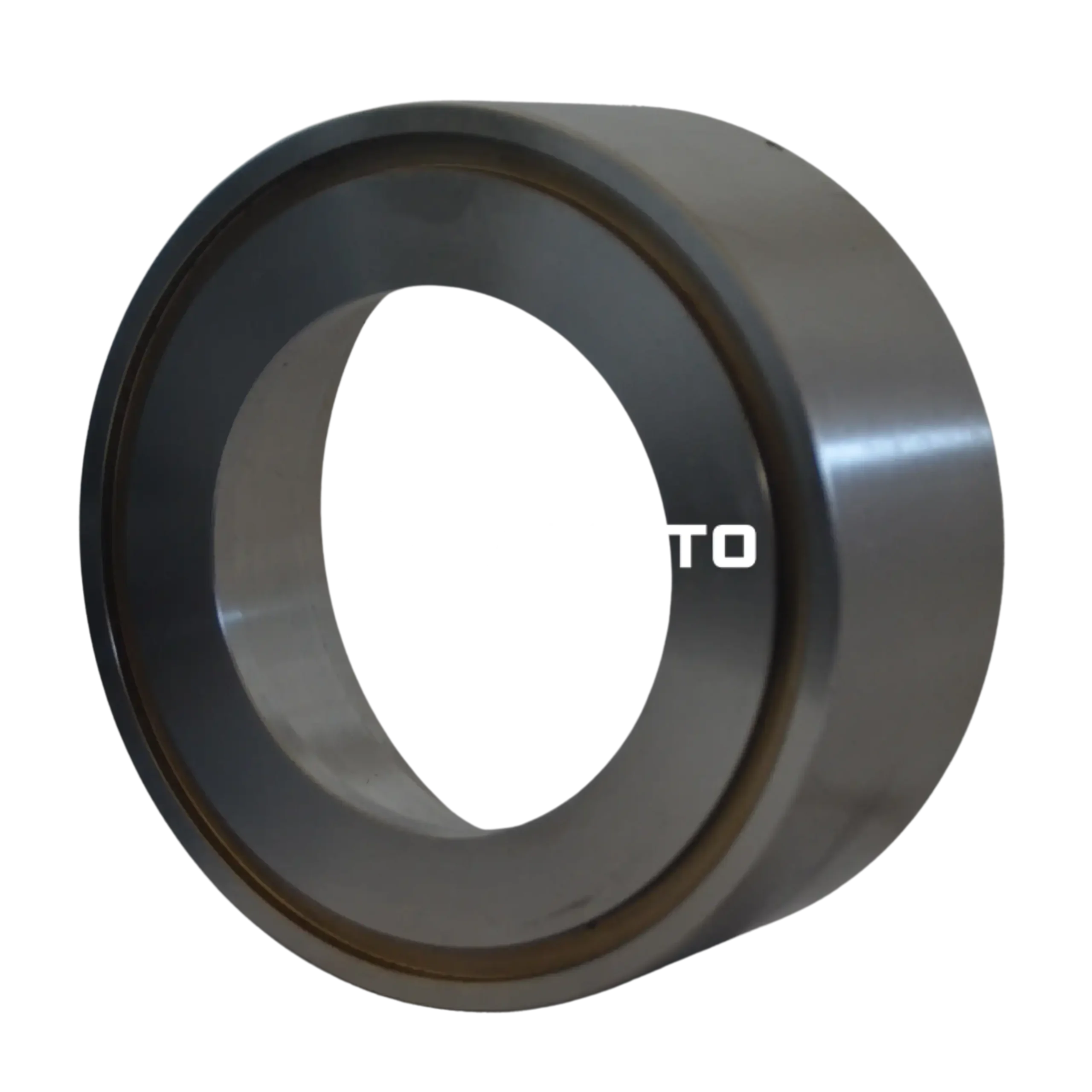

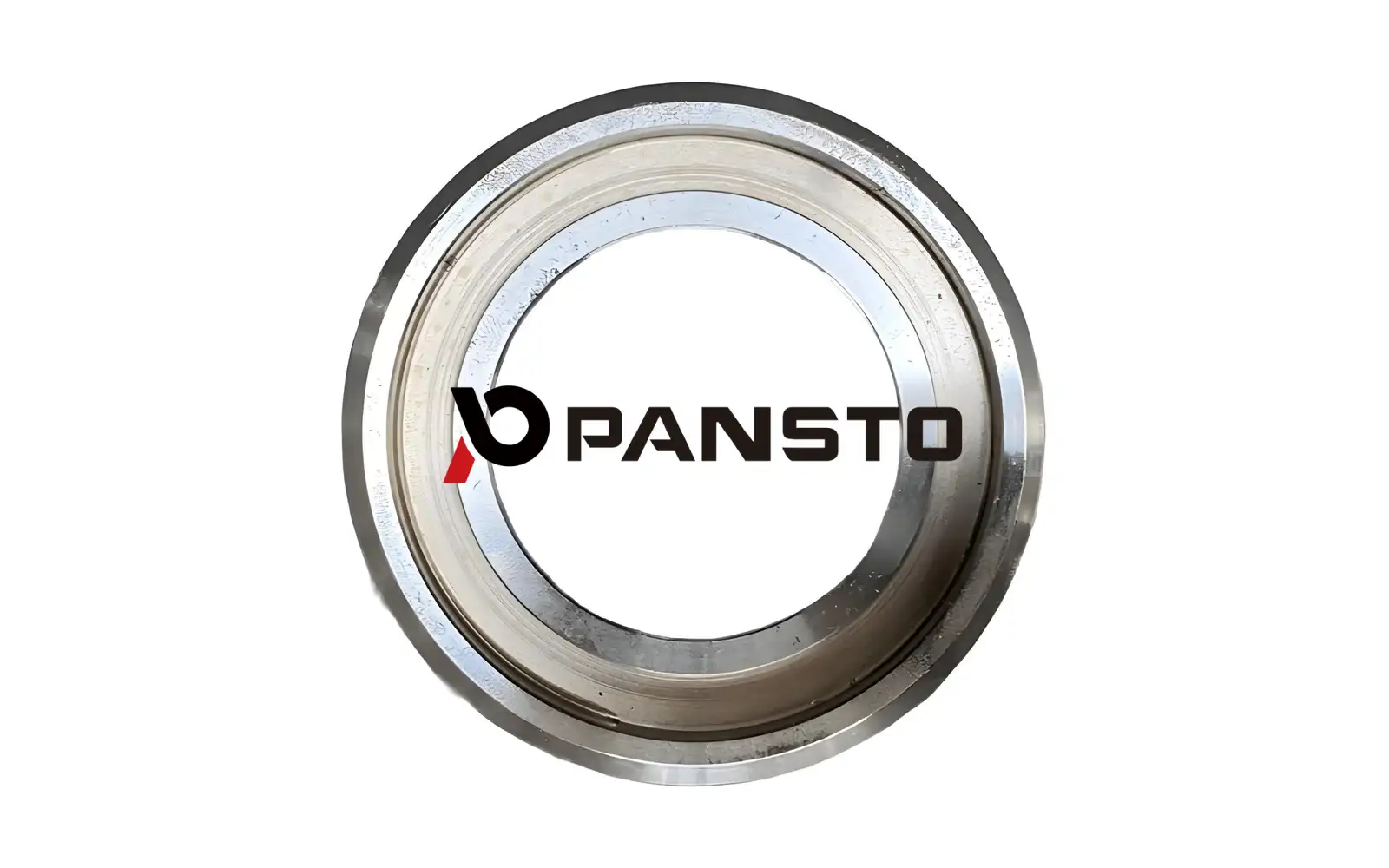

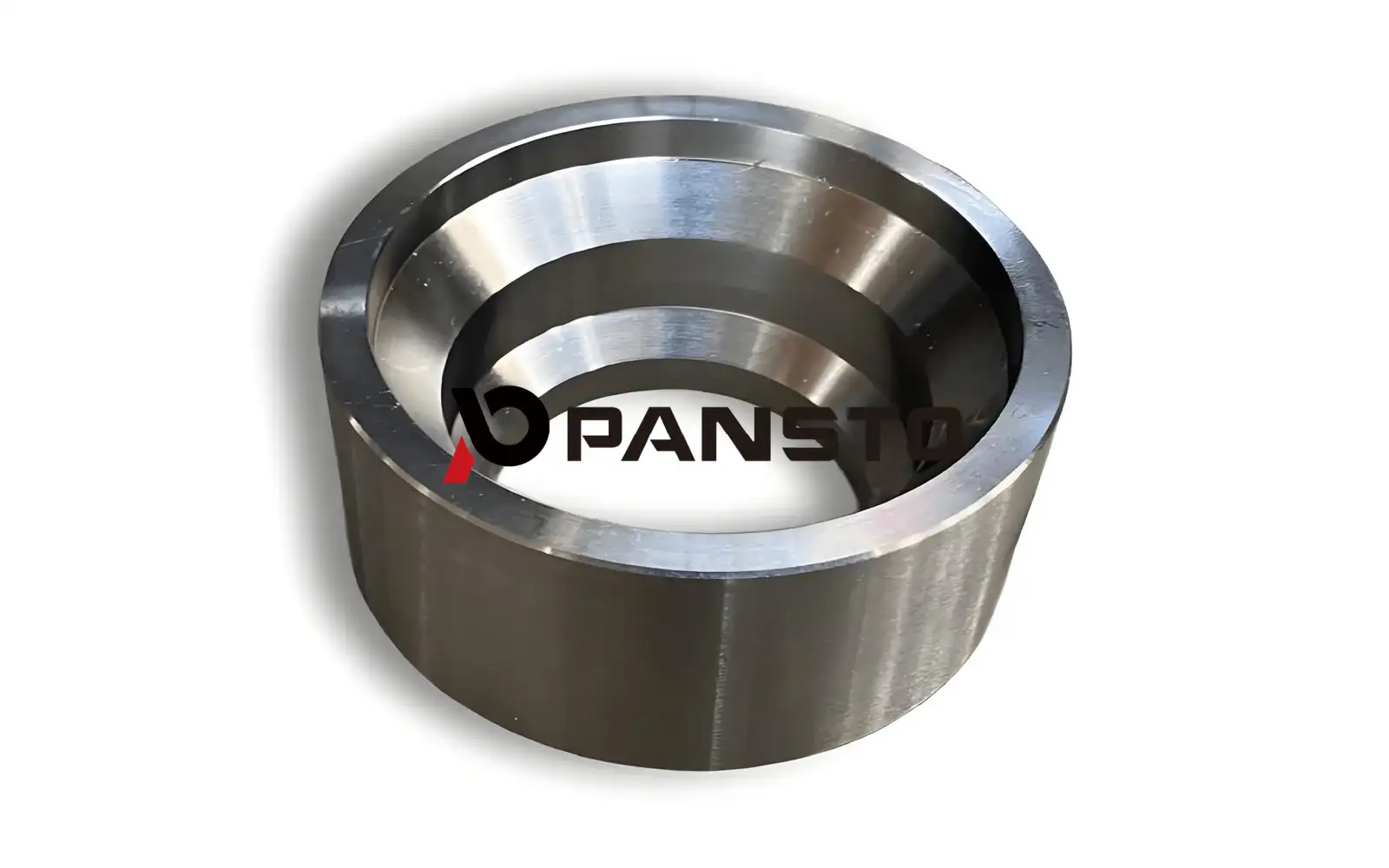

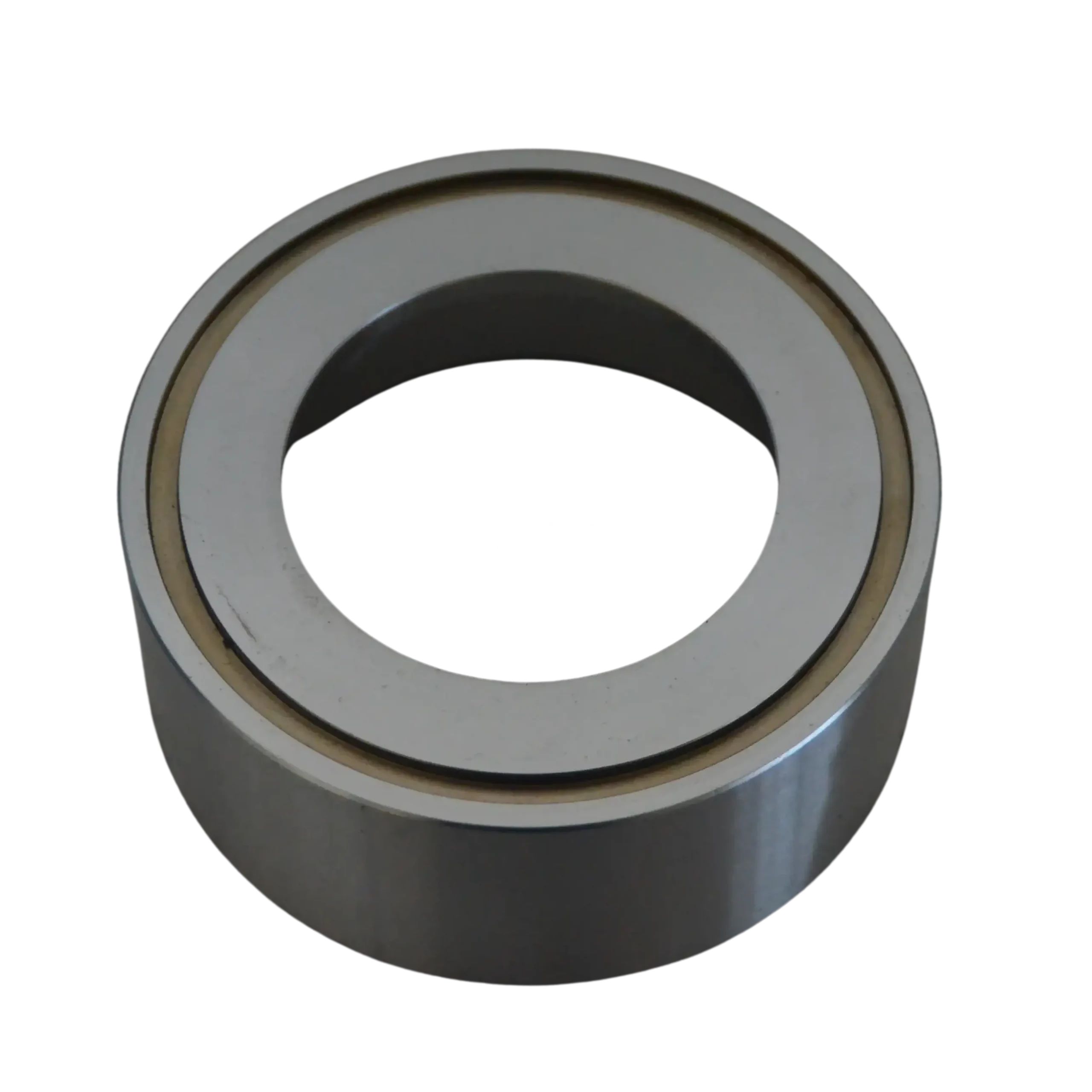

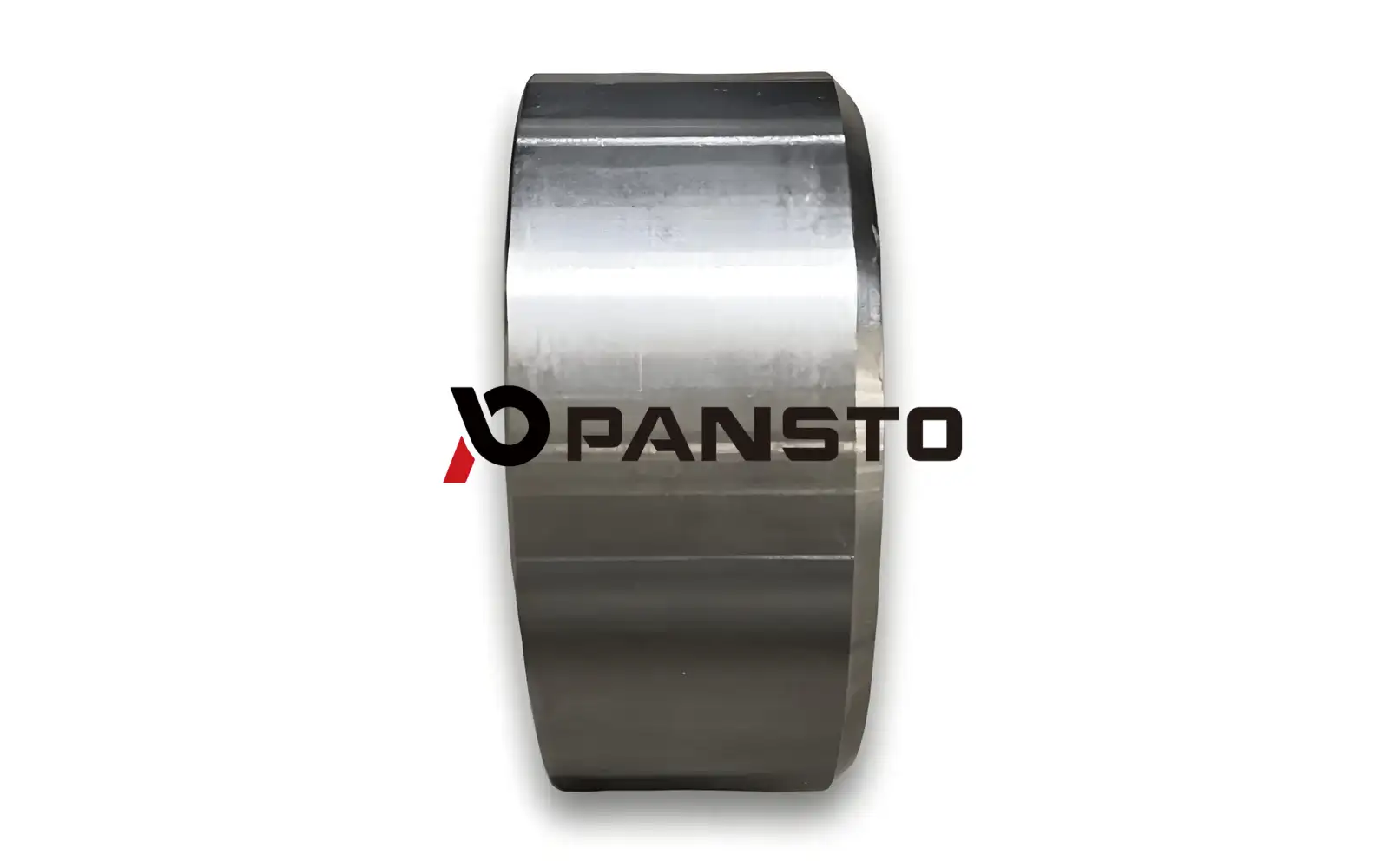

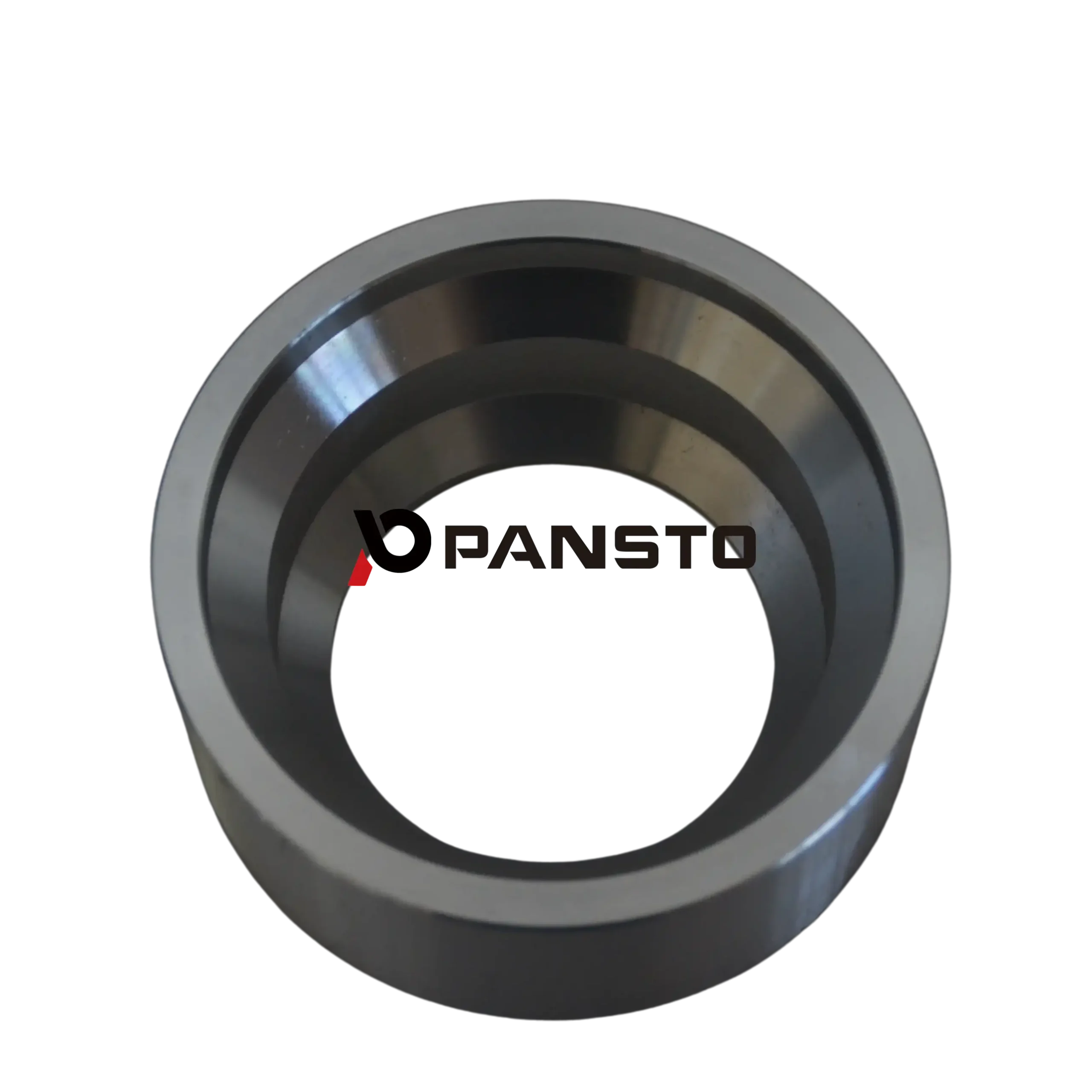

PRODUCT DISPLAY
PRODUCT DETAILS
Slurry Pump Shaft Spacers Description
The shaft spacer in a slurry pump is a component used to support the pump shaft. It is typically installed on the bearing housing. Its function is to secure the pump shaft, preventing misalignment or wobbling, thereby ensuring stable and efficient pump operation.The structure of a shaft spacer generally consists of the spacer body, spacer cover plate, gasket, bolts, etc., and it exhibits high wear resistance and corrosion resistance.
Pasnto offer all type shaft spacers for AH, HH, L, M series slurry pumps, SP/SPR vertical slurry pumps, G/GH gravel dredge pumps, AF froth slurry pumps etc.
Functions & Technical Advantages
The Shaft Spacer is typically installed between the pump shaft and the bearing in a slurry pump. Its main function is to provide an appropriate gap between the pump shaft and bearing, ensuring their proper operation and preventing excessive friction, wear, or heat generation.
Maintain Bearing Clearance
- Technical Advantages: During installation, the bearing spacer serves as a critical limiting component within the bearing assembly, precisely controlling the axial clearance between the pump shaft and the bearing.
- Performance Enhancement: Precise clearance is vital for normal bearing operation. It effectively prevents excessive or insufficient bearing preload, avoiding premature failure and abnormal heating. This ensures stable operation throughout the bearing’s design life while significantly reducing vibration and noise during pump operation.
Reduce Axial Force
- Technical Advantages: During slurry pump operation, the impeller and fluid medium generate significant axial thrust. As structural supports within the shaft sealing system, shaft sleeve shims help distribute and transfer portions of this axial force to fixed structures.
- Performance Enhancement: By ensuring sealing components (e.g., packing rings, shaft sleeves) maintain proper axial alignment, it mitigates compression or tension on the sealing system caused by impeller axial movement. This stabilizes the operating environment for seals (packing or mechanical seals), thereby improving sealing performance and reducing leakage caused by axial force fluctuations.
Transmit Torque
- Technical Advantages: Although the Shaft Spacer is not a primary power transmission component, it plays a critical role in connecting and positioning within the integrity of the entire shaft assembly. It ensures a tight, non-slip connection between the shaft sleeve, impeller, or bearing assembly.
- Performance Enhancement: In certain designs, spacers assist in stably transferring torque from the impeller to other shaft components through precise fitment, preventing component loosening or relative rotation. This is vital for maintaining pumping efficiency and structural integrity under high loads.
Prevent Leaks
- Technical Advantages: The Shaft Spacer serves as the foundational platform for the proper installation and operation of the entire sealing assembly, whether it be a packing seal or a mechanical seal.
- In packing seals, it precisely positions the stuffing box, ensuring uniform pressure and effective contact between the water seal ring and the packing.
- In mechanical seals, it ensures the rotating and stationary rings can mate at the correct axial distance, forming an effective sealing interface.
- Performance Enhancement:
Properly installed shaft spacers minimize axial movement, ensuring the sealing interface or packing remains in optimal working condition. This is crucial for achieving the slurry pump’s “zero leakage” or minimized leakage objectives.
Mateirals
| Types | Common brands | Main features and advantages |
| Stainless Steel | SS304, SS420 (Common), SS316 | Excellent corrosion resistance and moderate wear resistance, easy to weld and process, it is the first choice for standard configuration. |
| High Chrome Alloy | （A05, A07,etc） | Suitable for extremely high wear conditions, providing excellent hardness and anti-wear properties. |
| Special Alloys | (As You Need) | Provide customized corrosion/wear-resistant solutions for special acid, alkali or high-temperature media. |
Pasnto Promise: All Shaft Spacers are precision machined to exacting dimensional tolerances and surface treated (such as Tumble Finish) to eliminate burrs and facilitate installation.
Applications
As a core sealing component of slurry pumps, shaft sleeve gaskets are widely used in various industrial fields handling abrasive and corrosive slurries:
- Mining: Slurry transportation, tailings processing, flotation operations, cyclone feeders.
- Metallurgy: Slag slurry transportation, alumina production.
- Power Industry: Flue gas desulfurization (FGD) in thermal power plants, ash removal, coal slurry conveyance.
- Coal Mining and Processing: Coal slurry and heavy-medium conveyance.
- Environmental Engineering: Wastewater treatment, slurry pumping.
Interchangeability & Compatibility Code
Pasnto slurry pump bushings are 100% interchangeable with corresponding models from leading global brands, such as Warman® AH, HH, L, and M series; SP/SPR vertical pumps; G/GH gravel pumps; and AF flotation pumps.
Common part codes include: B117, C117, D117, E117, F117, G117, CAM117, and DAM117 (depending on the pump model and size).
Compatible pump models include: 1.5/1B-AH, 3/2C-AH, 4/3C-AH, 6/4E-AH, 8/6F-AH, and 10/8F-AH, a full range of horizontal and vertical slurry pumps.
Contact our technical team now to get detailed technical specifications and a quote for your desired Shaft Spacer model and improve your slurry pump performance and system stability!
Note:
* Pansto® is a registered trademark and does not represent or is not in any way affiliated with Warman® of Weir Minerals Group. All names,numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of Warman Pumps.
* Pansto® slurry pump parts are only interchangeable with Warman® pump parts.
How to Install the Shaft Spacer
- When replacing the shaft spacer,first remove all components from the pump shaft,then remove the old shaft spacer and clean it thoroughly.
- Inspect the diameter and depth of the mounting hole in the bearing housing to ensure they meet specifications.If any issues are found,repair them promptly.
- Place the new shaft spacer into the mounting hole,then install the spacer cover plate,gasket,bolts,etc.,one by one.Ensure no components are omitted.
- During installation,pay attention to the orientation and positioning of the shaft spacer to ensure it aligns correctly with the position and direction of the pump shaft.
Shaft Spacer Installation instructions
- Install in the Correct Direction: Ensure the shaft spacer is installed according to the design direction.
- Clean Components: Make sure all parts are clean before installation to avoid contamination.
- Check Fit: Verify that the shaft and bearing fit properly with the correct clearance.
- Lubricate: Apply appropriate lubrication to reduce friction.
- Avoid Over-tightening: Do not over-tighten to prevent deformation of the shaft spacer.
- Check Sealing: Ensure the shaft spacer has good sealing performance to prevent leaks.
How to Maintence the Shaft Spacer
- Periodically inspect the shaft spacer for wear and replace it promptly if wear is detected.
- Regularly clean the shaft spacer and bearing housing to maintain their proper working condition.
- Ensure the shaft spacer is installed in the correct position and orientation during assembly.
Why Choose Pansto Pump
As a professional manufacturer and supplier of slurry pump components:
- Rapid Response: Whether you provide an OEM part number, drawings, or simply the pump model and dimensions, we deliver accurate quotes and technical support within 24 hours.
- Quality Assurance: Certified under ISO 9001 quality management systems, all products undergo rigorous dimensional inspection and material testing before shipment.
- Customization Services: For non-standard or specialized operating conditions, we offer tailored material and dimensional machining solutions.
