Throat Bush for Slurry Pump | Warman Pump Parts Throat Bush
Pasnto Pump offers a full range of slurry pump throat bush, covering industries such as mining, metallurgy, and power generation. Available in A05 high chrome or natural rubber materials to ensure stable operation of your slurry pump.Which can replace Warman AH/HH pump throat bush.
What is Slurry Pump Throat Bush
The throat bush in a slurry pump is a critical component that contributes to the pump’s efficiency, longevity, and reliability by providing wear protection, maintaining a proper seal, and aiding in the hydraulic performance of the pump. Regular maintenance and proper material selection are essential for ensuring optimal pump operation.
Slurry Pump Throat Bush is interchangeable with AH/HH/L/M slurry pump throat bush, It links plate liner and forms a Pump chamber to work with impeller, as one of wetted parts for the slurry pump, Its wear-resistance is very important to pump worklife. Pansto offers high chrome alloy which is high abrasion resistance, and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
Features & Benifits
1. Wear Protection:
The throat bush acts as a protective barrier against wear caused by abrasive slurry. Slurry pumps are commonly used in industries where the pumped fluid contains solid particles, and these particles can cause wear on pump components. The throat bush helps minimize wear on the pump’s interior surfaces, particularly in the area where the slurry enters the impeller.
2. Sealing:
Another important function of the throat bush is to help create a seal between the suction side and the pressure side of the pump. This is essential for maintaining efficiency and preventing leakage. A well-maintained throat bush contributes to the overall sealing integrity of the pump.
3. Maintaining Hydraulic Performance:
The design of the throat bush is crucial for maintaining the hydraulic performance of the pump. It helps guide the slurry into the impeller, ensuring a smooth flow and preventing turbulence that could negatively impact efficiency.
4. Easy Replacement:
Given that the throat bush is subjected to wear over time, it’s designed to be replaceable. This allows for easier maintenance and extends the overall lifespan of the pump. Regular inspection and replacement of the throat bush are important aspects of pump maintenance.
5. Material Selection:
The material used for the throat bush is chosen based on the characteristics of the pumped slurry. Common materials include high chrome alloy, rubber, polyurethane, and ceramic, selected for their wear resistance, corrosion resistance, and durability.
Structure of Throat Bush in Slurry Pump

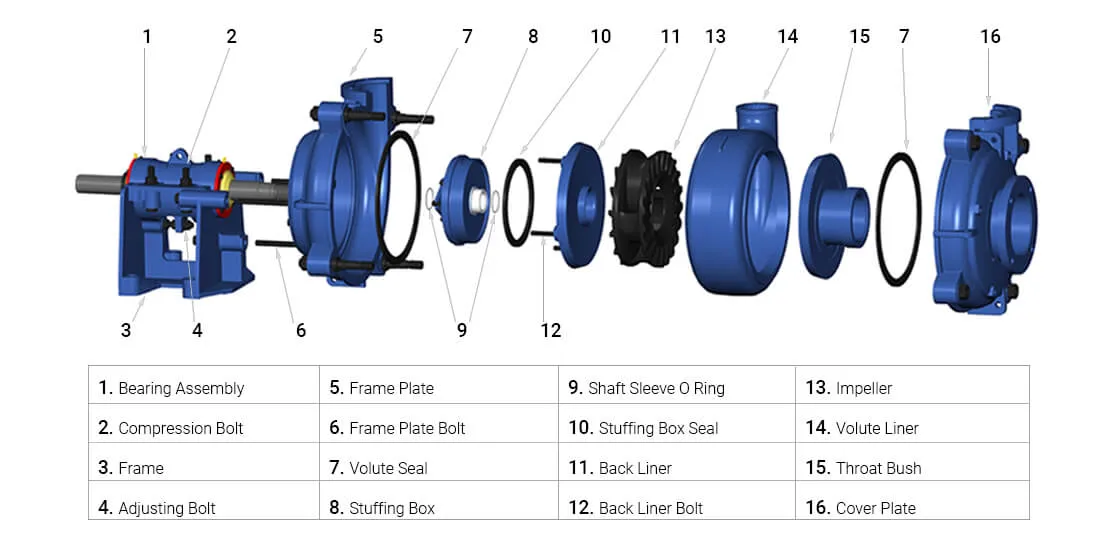

The basic structure of the PH(AH) series heavy-duty slurry pumps featuring a high chrome alloy throat bush. The wetted parts made from other materials are interchangeable, while the non-wetted parts remain identical across different configurations.
The slurry pump throat bush is a critical wetted part of a horizontal centrifugal slurry pump system. Located at the entrance of the pump’s impeller on the inside of the outer casing, it combines with the volute liner and frame plate liner insert to form the pump chamber that surrounds the impeller and helps guide the slurry into the impeller, ensuring a smooth flow. The throat bush acts as a protective barrier against wear caused by abrasive slurry.
Slurry Pump Throat Bush Code:
Throat Bush Code | AH Slurry Pump | Slurry Pump Materials |
E4083 | 6/4D-AH, 6/4E-AH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
F6083 | 8/6E-AH, 8/6F-AH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
G8083 | 10/8F-AH, 10/8ST-AH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
G10083 | 12/10ST-AH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
G12083 | 14/12ST-AH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
H14083 | 16/14TU-AH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
Throat Bush Code | HH Slurry Pump | Slurry Pump Materials |
DH2083 | 3/2D-HH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
DH3083 | 4/3E-HH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
FH4083 | 6/4F-HH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
Throat Bush Code | G(H) Gravel Pump | Gravel Pump Materials |
GG1412013-1 | 12/10G-G | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
GGH10013 | 12/10G-GH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
FGH8013 | 10/8S-GH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
HG14130M | 16/14TU-GH | A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 |
Note:
* Pansto® is a registered trademark and does not represent or is not in any way affiliated with Warman® of Weir Minerals Group. All names,numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of Warman Pumps.
* Pansto® slurry pump parts are only interchangeable with Warman® pump parts.
Throat Bush Materials
Our premium throat bush is made from high chrome alloy materials, including A05, A49, A33, among others. It is engineered to manage highly abrasive or corrosive slurries across various sectors such as mining, mineral processing, coal washery, metallurgy, power generation, chemicals, and environmental services. Proudly produced in our Chinese factory, we provide robust and effective slurry pump throat bush at competitive prices with reduced lead times.
The following materials are commonly used for slurry pump throat bush liners, with A05 high-chrome alloy being the most frequently used. Depending on the specific characteristics of the slurry and user requirements, options such as rubber, polyurethane, or ceramic are available. For exceptionally unique working conditions, we also provide customized services. Please feel free to consult our sales engineers for more information.
Metal Materials
| Code | Description | Hardness | Applications |
| A05 | 27%Cr, Wear-resistant White Cast Iron. | ≥58HRC | For abrasive wear with larger impact loads, suitable for working conditions with pH value of 5~12. |
| A49 | 28%Cr, Wear-resistant and Corrosion-resistant Cast Iron. | ≥43HRC | Suitable for corrosive environments with low pH, 3.5≤PH≤13, especially suitable for flue gas desulfurization with PH≥4 device, usually used in low-acid environments. |
| A33 | 33%Cr, Wear-resistant and Corrosion-resistant Alloy. | ≥35HRC | Used to transport oxidizing slurry with PH≥1, such as phosphogypsum, nitric acid, sulfuric acid, and phosphoric acid. |
Elastomer Materials
| Materials | Code | Description |
| Natural Rubber | R55 | Black medium hardness natural rubber with excellent wear and corrosion resistance, suitable for conveying slurry of fine to medium particles without sharp corners. |
| Natural Rubber | R08 | Back medium hardness natural rubber for impeller, used for impellers where superior corrosion resistance is required in fine particle slurries. |
| Natural Rubber | R26 | Back soft natural rubber for liner, used for liner where superior corrosion resistance is required in fine particle slurries. |
| Polyurethane | PU01 | Elastomer material more wear-resistant than natural rubber, The wear resistance is 3-5 times that of natural rubber, and it is resistant to oil, hydrolysis and corrosion. |
Pansto Slurry Pump Parts-Throat Bush
The Throat Bush is a critical component in your slurry pump system, ensuring smooth and efficient operation even under the toughest conditions.
Our Throat Bush replacement parts are:
- Highly durable – Built with wear-resistant materials for long-lasting performance.
- Customizable – Designed to fit a wide range of pump models.
- Precision-engineered – Ensures a perfect fit for optimized flow and reduced wear.
FAQ
What is throatbush?
Throatbush is one of wet parts of slurry pumps. It links plate liner and forms a Pump chamber to work with impeller. As a wet part, its material is very important and Excellence pump offer high chrome white iron (%27chrome) throatbush which is very abrasive-resistant.
What is the function of throat bush in centrifugal pump?
A throat bushing in a centrifugal pump isolates the mechanical seal environment from the overall flow within the pump. By changing the clearance at the throat bushing, pressure in the seal chamber and seal flush flow rate can be manipulated to provide a better sealing environment.
What is the difference between throat bush and throttle bush?
In general, the term “throat” bushing is used in low-pressure stuffing boxes and “throttle” bushing refers to the bushing in a high-pressure stuffing box. Flooded suction: If the pump is below the liquid source, and the suction is fed by gravity. This is a preferred method for centrifugal pumps.
